About the product

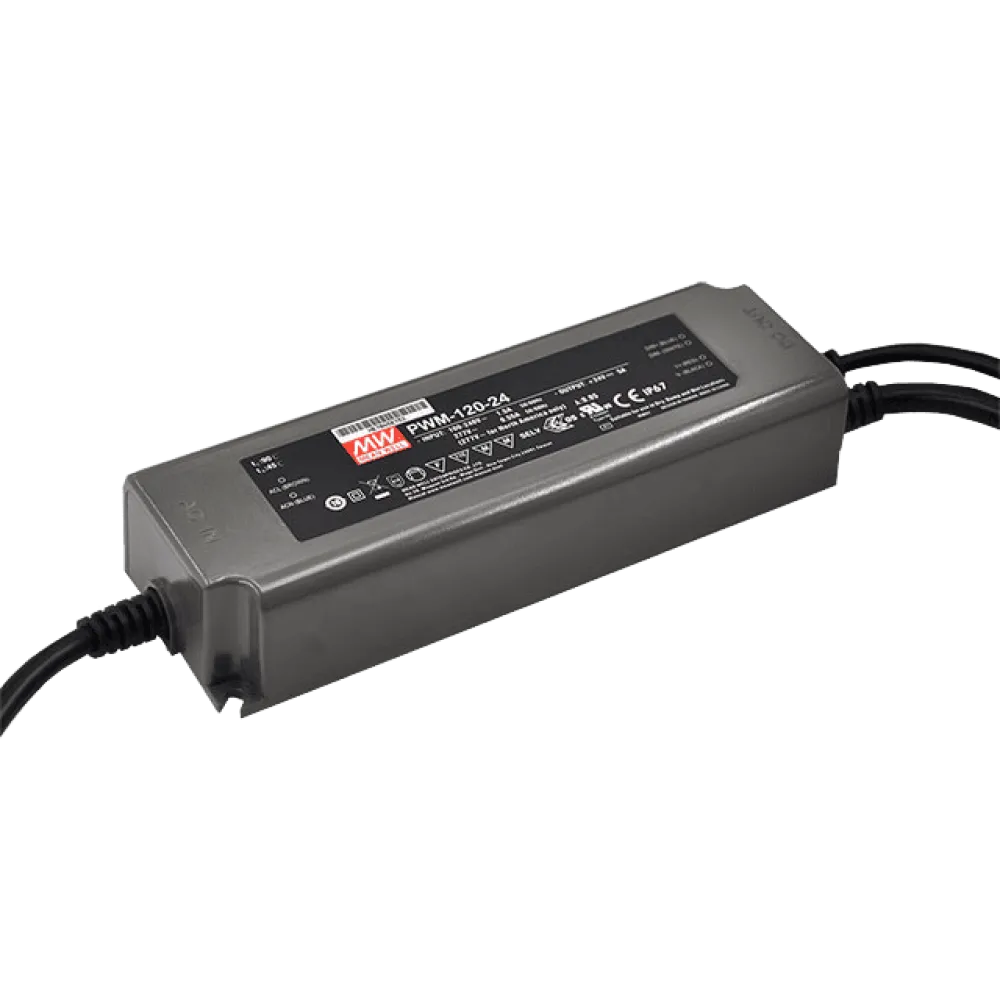

Mean Well PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The DALI interface makes it easy to integrate into building control systems.
Technical data
- Universal AC input 90 to 305Vac
- Constant voltage output
- Built-in DALI Interface
- PWM style dimming with frequency 1.47kHz
- No load power consumption <0.5W
- Fully isolated plastic case with IP67 level
- Class II power unit, without FG
- Dimension 191 x 63 x 37.5mm (L x W x H)
- 5 years warranty
- Manufacturer: MEAN WELL
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer warranty | 5 years |
| Product series | PWM |
| Input voltage range (VAC) | 100-277 V |
| Connection | Cable |
| IP protection | IP67 |
| Height | 37.5 mm |
| Width | 63 mm |
| Length | 191 mm |
| Application | Single color |
| Dimming method | PWM |
| Control | DALI |
| Channels | 1 |
| Output current | 10 mA |
| Power | 120 W |
| Manufacturer | MEAN WELL |
