About the product

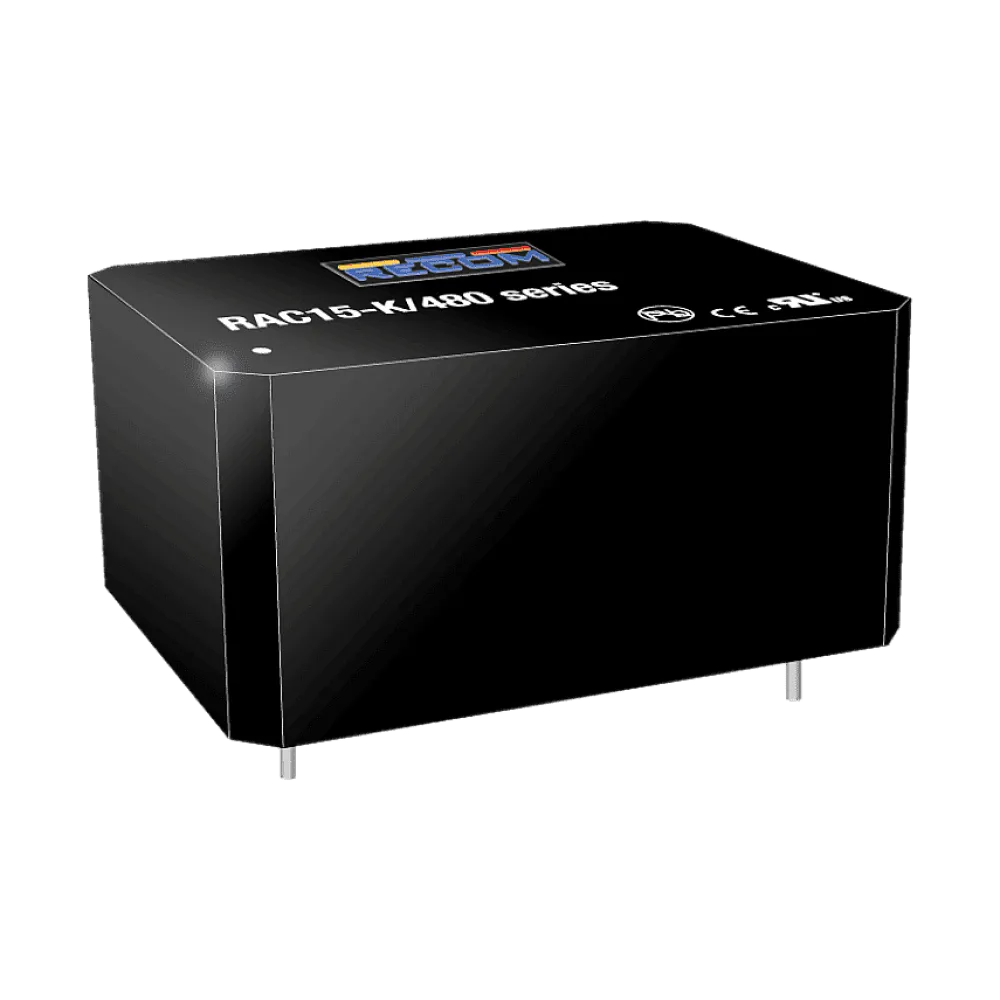

The RAC15-K/480 series AC/DC modules with ultra-wide input range of 100-480 VAC are specially designed for harsh industrial conditions of overvoltage category OVC III and pollution degree PD3 in both single-phase and phase-to-phase power connections of class II. These power supplies are capable of operating over a wide temperature range of -40° to 90°C (up to 60°C without derating) by just adding an external fuse, and offer LPS limited outputs with continuous overcurrent protection and emission class B EMC compliance in potential free configuration of the load. These silicone-free encapsulated modules are built extremely compact to fit on printed circuit boards without compromising board area. Global safety certifications ensure fast time-to-market when integrated into applications for markets such as Smart Grid, Smart Metering, Renewable Energy; Sensors and actuators or IoT applications.
Technical data
- OVC III and PD3 up to 5000m altitude
- 85-528VAC input range
- -40°C to +90°C operating temperature
- LPS limited power source
- EN55032 class "B"; floating outputs
- No load power consumption <0.3W
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Recom |
| Certificates | EN60335-1 / Household, EN61010-1 / Test and Measurement, EN62368-1 / ITE, OVC III, PD3, UL62368-1 / ITE |
| Input voltage range (VAC) | 85-528 V |
| Height | 25.5 mm |
| Width | 40 mm |
| Length | 52.5 mm |
| Application | Household, ITE/AV |
| Power | 15 W |
| Efficiency | 87.00% |
