About the product

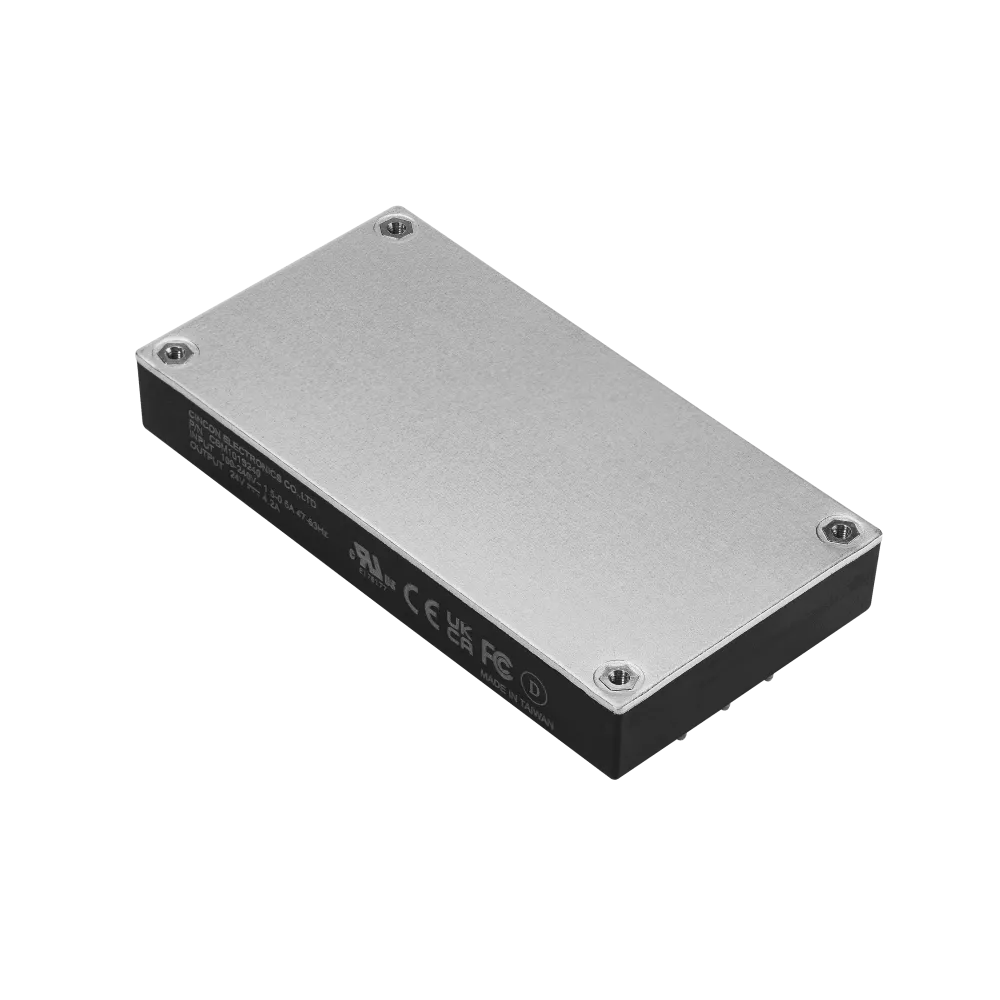

CBM101S240 from Cincon is an AC-DC power supply that provides 100W of regulated power in the full brick size and the 17 mm low profile package. The series has the safety approvals for IEC/UL/EN 62368-1.
Technical data
- Input range 90 to 264Vac / 120 to 370Vdc
- Peak Power Operation up to 120W for 5 seconds
- No Load Input Power Consumption <0.5W
- very wide operating temperature range from -40°C to +85°C
- Operating Altitude 5000m
- 17mm Ultra Low Profile Package
- MTBF >600k hours
- Safety approvals for IEC/UL/EN 62368-1
- EMC compliant to EN55032 Class B and CISPR/FCC Class B.
- output over current protection, output over voltage protection, over temperature protection and continuous short circuit protection
Product specifications
| Output voltage (VDC) | 24 V |
| Manufacturer | Cincon |
| Certificates | EN62368-1 / ITE, IEC62368-1 / ITE, UL62368-1 / ITE |
| Input voltage range (VAC) | 90-264 V |
| Additional functions | Peak Power |
| Height | 17 mm |
| Width | 61 mm |
| Length | 116.8 mm |
| Application | ITE/AV |
| Power | 100 W |
| Efficiency | 94.00% |
