About the product

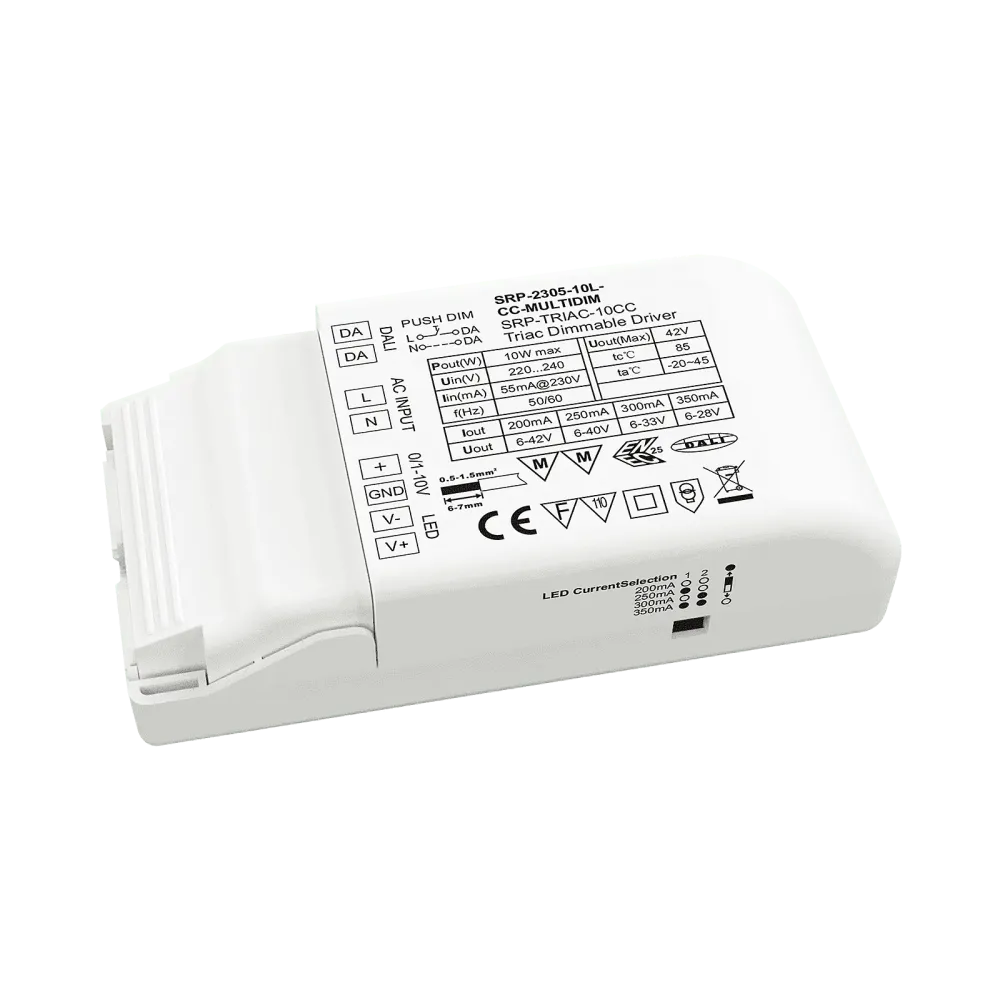

SRP-2305-10L-CC-MULTIDIM is a flexible, dimmable LED converter with constant current output. This 4in1 power supply unit can be controlled with DALI, TRIAC, AC-Push etc.
Control
- DALI, AC-PUSH, 0/1-10V, TRIAC
Application
- Single Color
Dimming range
The load-dependent dimming range is 1% to 100% of the connected load.
Dimming method: 10%-100% = analog current control, no PWM output, flickerfree (1%-10% = PWM dimming 1.5kHz)
Technical data
- Dimmable 4in1 LED driver with DALI/Push+Triac+0/1-10V dimming interfaces
- 200-240VAC wide input voltage range
- 1-channel constant current output

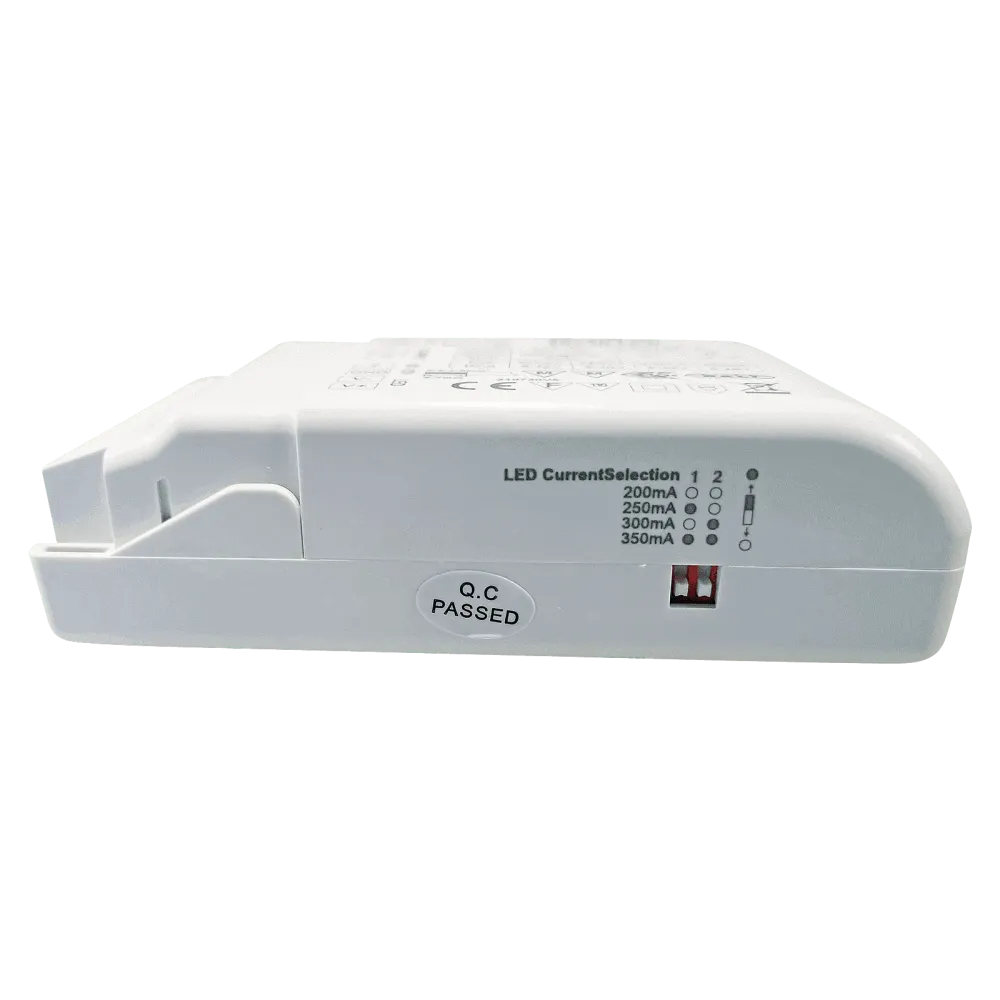

- Output current selectable from 200mA to 350mA via DIP switch
- Output voltage: 6-42VDC
- The maximum output power is 10W
- Built-in DALI interface, DALI DT6 device
- Generally compatible with DALI masters that support DT6 commands
- 10%-100% = analog current control, no PWM output, flicker-free (1%-10% = PWM dimming 1.5kHz)
- IP20 Protection class
- Protection class II Driver without earth connection
- Plastic housing
- Operating temperature range from -20°C to +45°C
- Dimension 103.7 x 52.6 x 30mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Control | DALI, AC Push Dimming, Phase dimmer, 0-10V, 1-10V |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Width | 52.6 mm |
| Length | 103.7 mm |
| Power | 10 W |

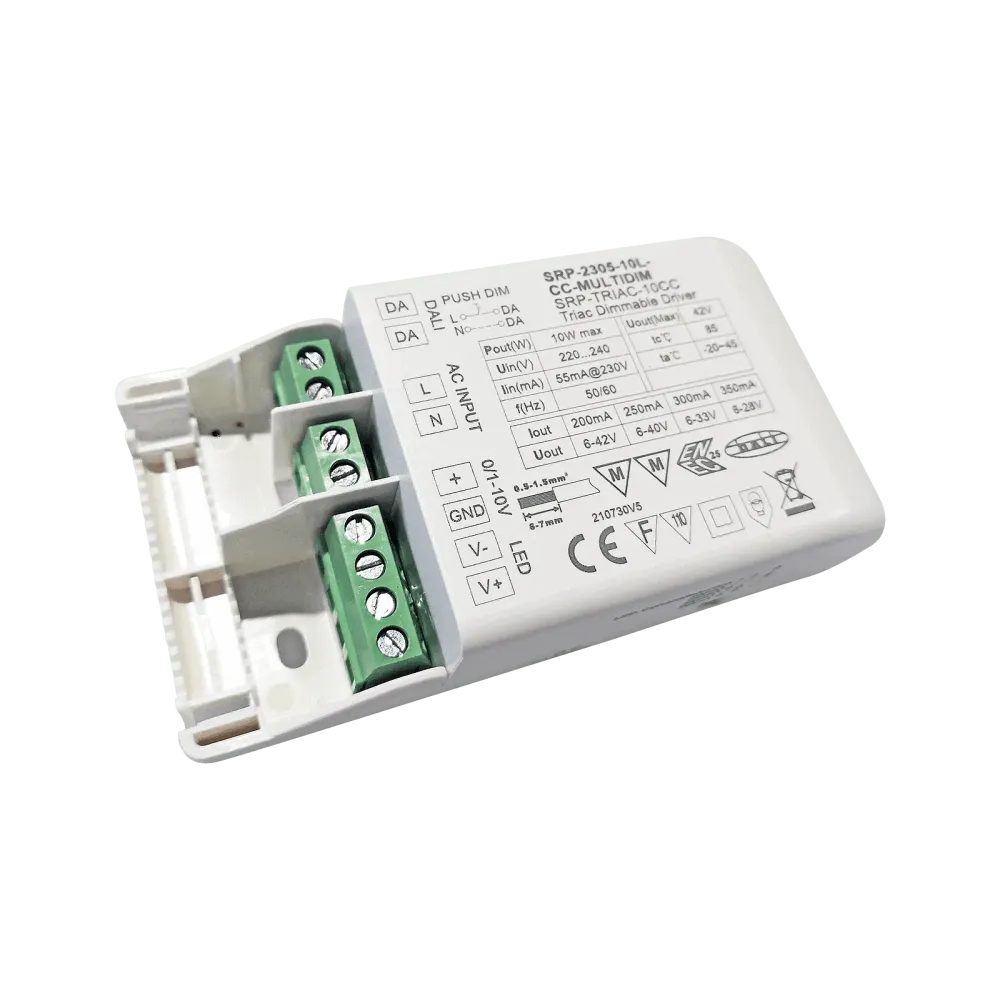

| Connection | Screw terminal |
| Current setting | DIP switch |
| Channels | 1 |
| Application | Single color |
| Height | 30 mm |
| Dimming type | Hybrid |
