About the product

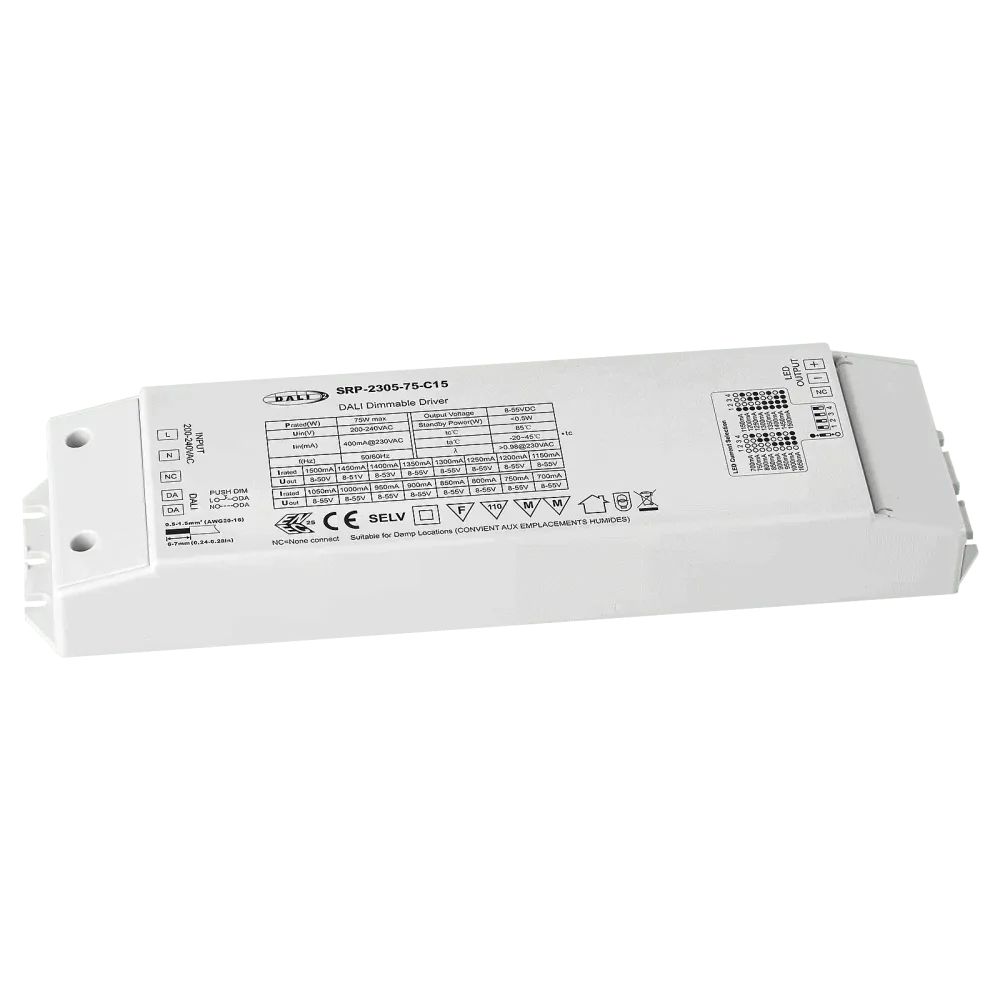

SRP-2305-75-C15 is a flexible, dimmable LED converter with constant current output. The power supply unit can be controlled with DALI and Push.
Control
- DALI2, DALI DT6, AC-PUSH
Application
- Single Color
Dimming range
The load-dependent dimming range is 1% to 100% of the connected load.
Dimming method: Amplitude dimming (PWM dimming below 1%), flicker-free
Technical data
- Dimmable DALI2 DT6 LED driver
- Built-in DALI2 interface
- Max. Output power 75W
- 1 channel 700-1500mA constant current output
- Class 2 power supply unit, fully insulated plastic housing
- High power factor and efficiency
- For switching and dimming single-color LED lighting
- Built-in DALI/Push Dim interface, DALI DT6 device
- Amplitude dimming (PWM dimming below 1%), flicker-free
- Smooth and deep dimming down to 0.1%
- Compatible with universal DALI masters that support DT6 commands
- Error report function
- AC-PUSH dimmable
- Stand-by power consumption less than 0.5 W
- Protection class IP20
- 244 x 64 x 32mm
- 5 year guarantee
Product specifications
| Manufacturer | Sunricher |
| Manufacturer's warranty | 5 years |
| IP protection | IP20 |
| Width | 64 mm |
| Control | DALI, AC Push Dimming |
| Power | 75 W |
| Length | 244 mm |
| Connection | Screw terminal |
| Current setting | DIP switch |
| Channels | 1 |
| Application | Single color |
| Height | 32 mm |
| Dimming type | Hybrid |
