Item ID: 43563

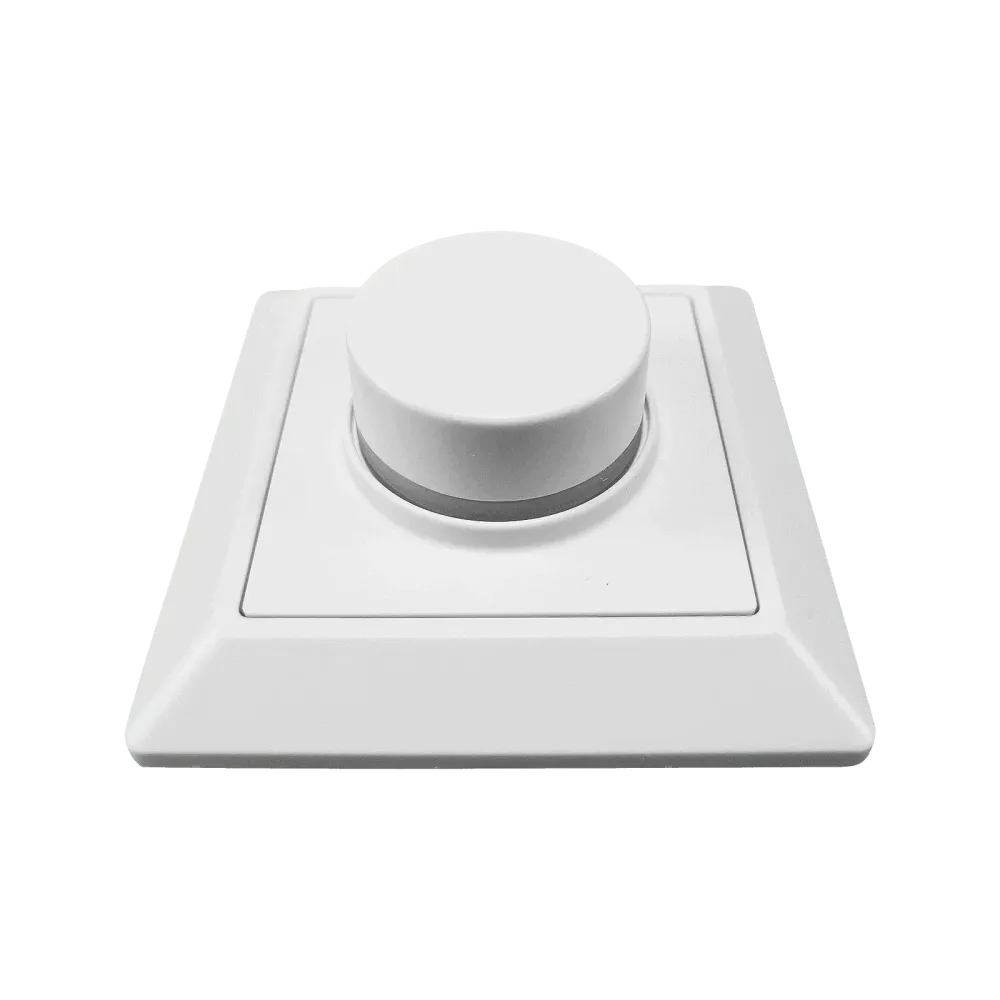

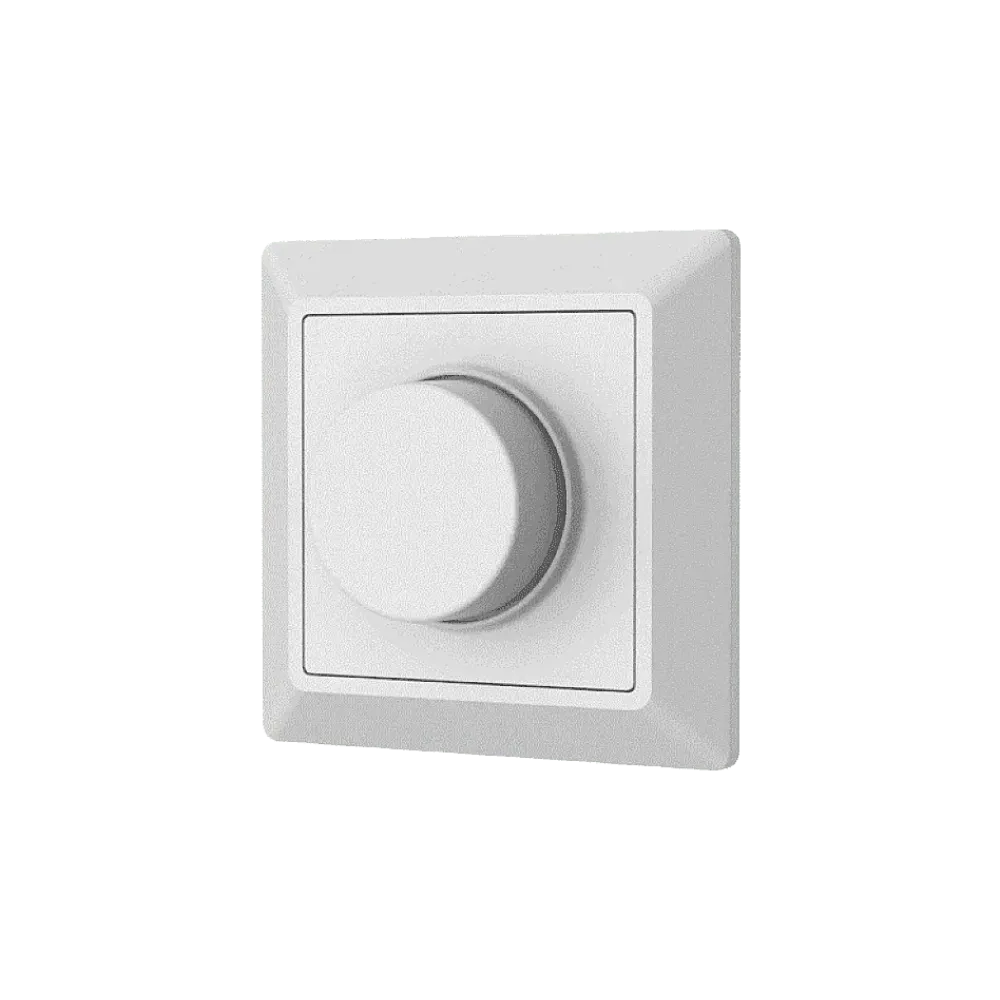

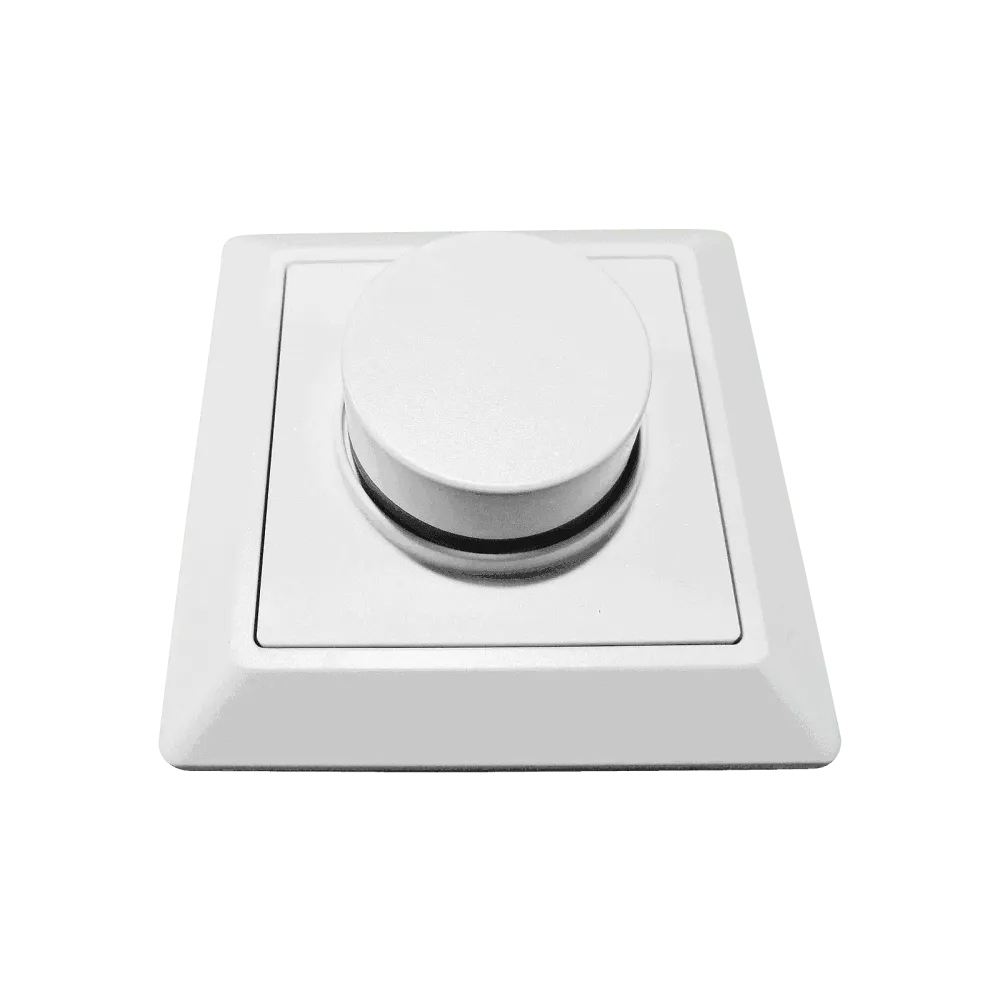

ZIGBEE 3.0 rotary switch, RGB+CCT RGBW CCT DIM 4 in 1, wall mounting, white
About the product
ZigBee3.0 rotary switch for wall mounting, suitable for all SR-9101 drivers / dimmers.
Application
- 4in1 Dim
- Tunable white, RGB, Single color, RGBW
Technical data
- Dimension: 86 x 86 x 26.9mm
- Color: white
- Operating mode: Battery
- ZigBee 4 in 1 rotary switch based on ZigBee 3.0
- Battery-operated switch with low power consumption
- Enables the coupling of ZigBee lighting devices via Touchlink commissioning without a gateway
- Supports 1 group for the coupling of max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee gateway products
- IP20 Degree of protection
- Warranty: 5 years
Product specifications
| Colour | White |
| Control | ZigBee 3.0 |
| Length | 86 mm |
| Width | 86 mm |
| Height | 26.9 mm |
| Application | RGB, RGBW, Single Color, Tunable White |
