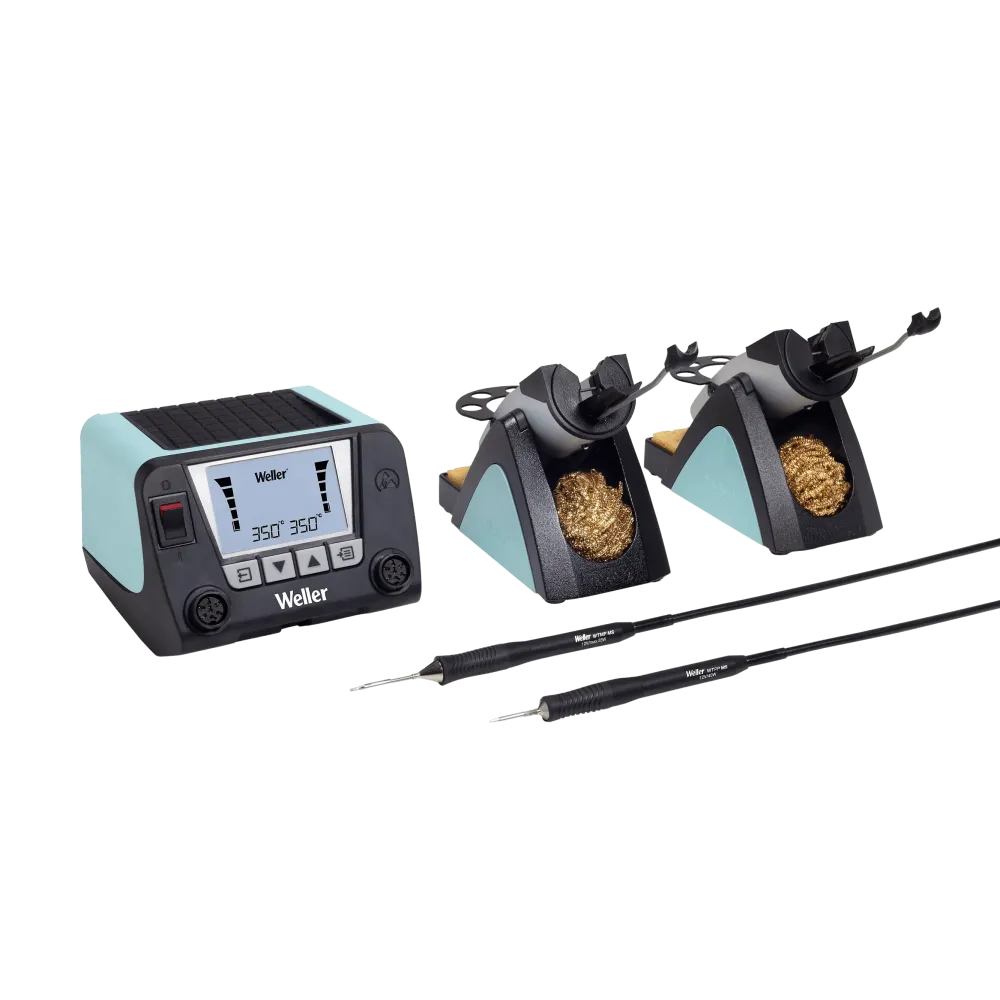

WT2022M MS, 2-channel micro soldering set, 150 W, 230 V

• Set for micro and nano/pico soldering applications for simultaneous operation of two soldering irons
• Compact: The WT2M is a compact dual-channel soldering station that optimizes your workspace, reduces costs and increases efficiency by easily handling tasks from nano to larger micro applications.
• Powerful: The Weller RT active tips with extremely short heat-up times increase productivity. They enable a continuous workflow and faster completion of tasks, which ultimately leads to greater efficiency.
• Versatile: The WT 2M soldering stations offer exceptional flexibility as they can be operated with the new nano and micro tools with active tip technology as well as with the existing Weller tools with passive tip technology. The choice is yours when it comes to productivity and operating costs.
• Fast Heat Up and Recovery Time
  . From 3 seconds heat-up time with Weller's RTP and RTM tips with active heat technology. Fast heat-up times maximize productivity by reducing waiting periods, enabling quicker start times, continuous workflow, and faster job completion, enhancing overall efficiency and performance.
• Multiple options possible: Connect over 10 different soldering tools to a WT 2M soldering station and benefit from unrivaled flexibility. Fast, powerful micro tools with active tips or existing tools with passive heating technology increase efficiency without the need for multiple stations.
• Stackable: WT stations can be stacked on top of each other
• Health protection: The WT station in conjunction with a Weller ZeroSmog solder fume extraction system protects your health when soldering.
• 2-channel micro soldering kit (150 W) for micro and standard soldering tasks.
  . incl. WTMP MS Micro soldering pencil and WTPP MS Nano/Pico soldering pencil with active (cartridge) cutting-edge technology
  . RTM and RTP top family with shortest heat-up times
  . High productivity
  . Intuitive operation thanks to clear menu structure
  . Low space requirement due to stackability
  . Graphic LC display with backlighting
  . High performance and functionality - many tools can be connected
  . Housing cover can be used as a shelf
  . OFF time, process window, locking function, offset
  . Stackable units
  . Can be connected to ZeroSmog solder fume extraction system

Technical data

• Tools/accessories can be connected: WTP 90, LR 21, WP 65, WP 80, WSP 80, WTA 50, WSP 150, WHP 80, WSB 80, WST 82, WP 120, WP 200
• TO THE MATCHING TIPS

Scope of delivery

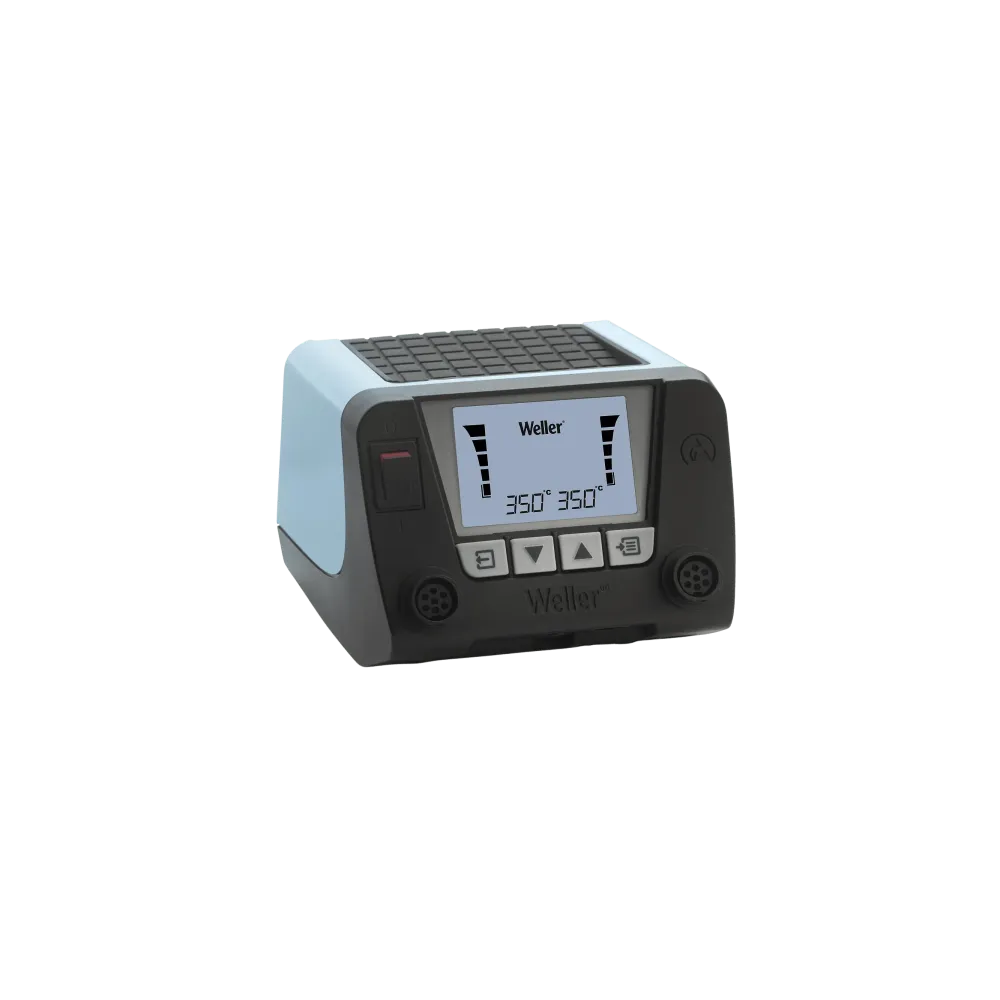

• WT2MSupply unit, 230 V

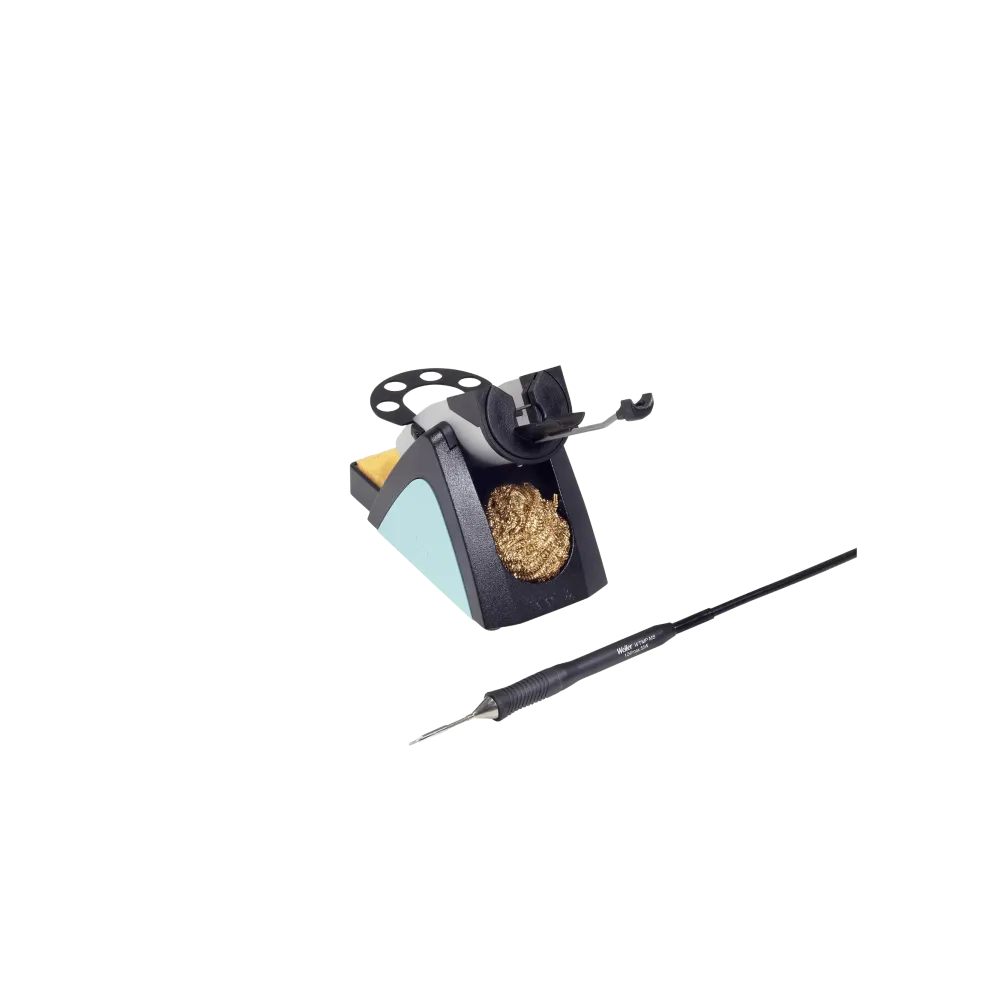

• WTMP MSMicro soldering iron, 40 W, 12 V
• RTM 013 S MSMicro soldering tip

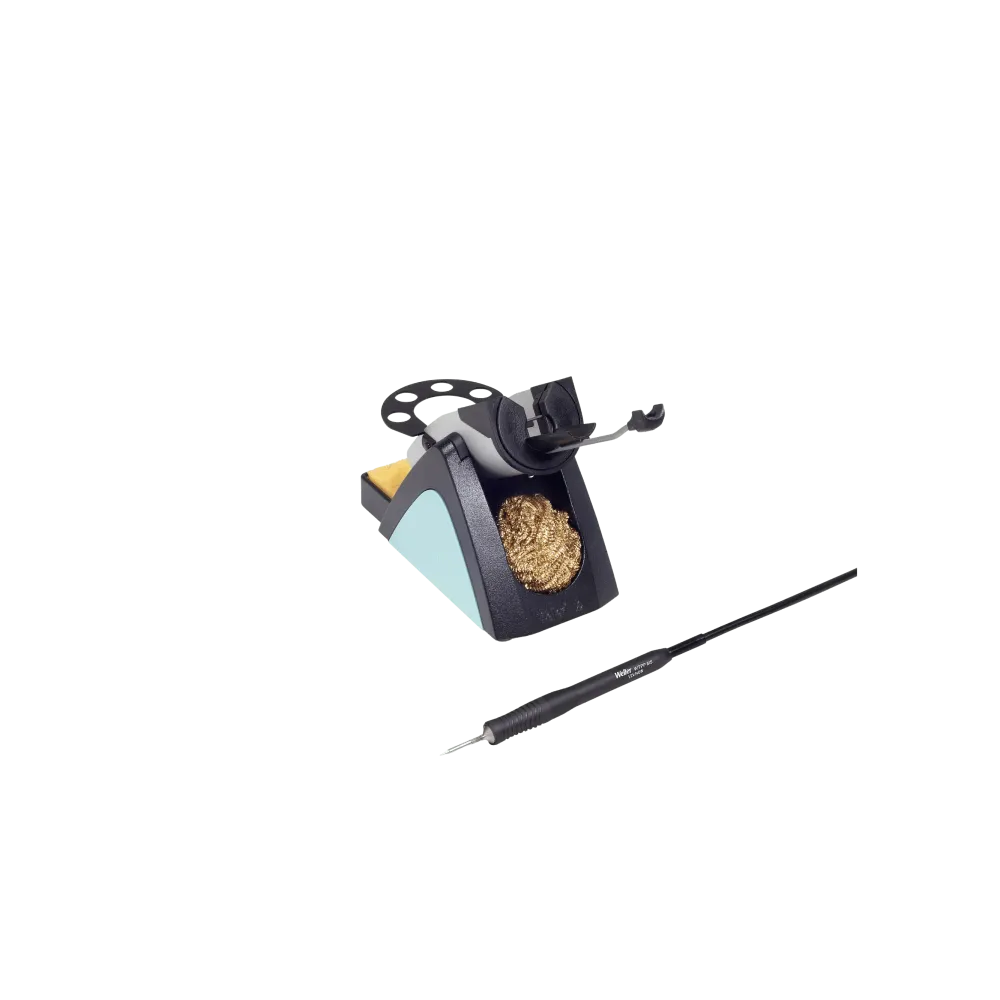

• WTPP MSNano/Pico soldering iron, 40 W, 12 V
• RTP 004 S MSNano/Pico soldering tip
• 2 x WSR 205Safety shelf with Stop & Go function
