Product
Workline 900
Finish
Silver anodized
Power/Control
On/Off
DMX-512A and RDM compatible
DALI compatible
Light color/CCT
2200 K
3000 K
4000 K
6000 K
RGBW (W 5700 K)
Optics
8°
35°
45° x 8°
75° x 40°
100°
About the product

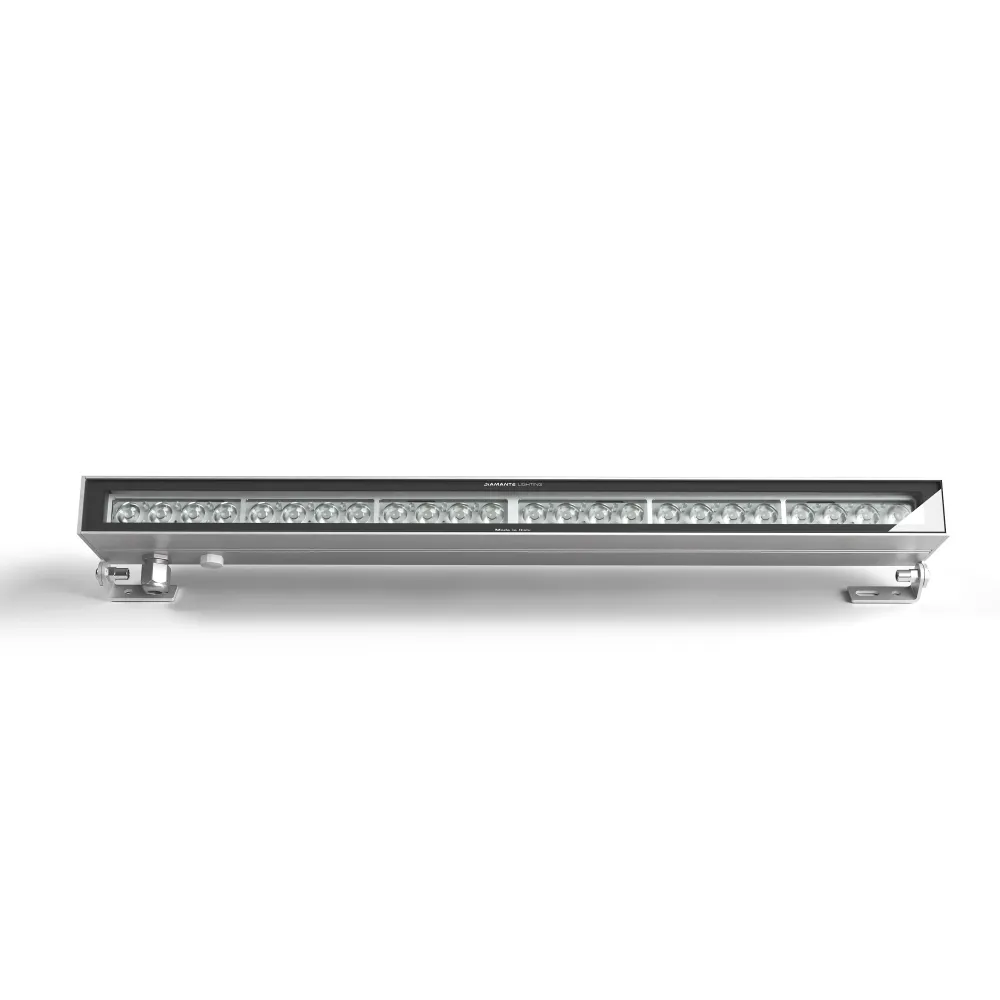

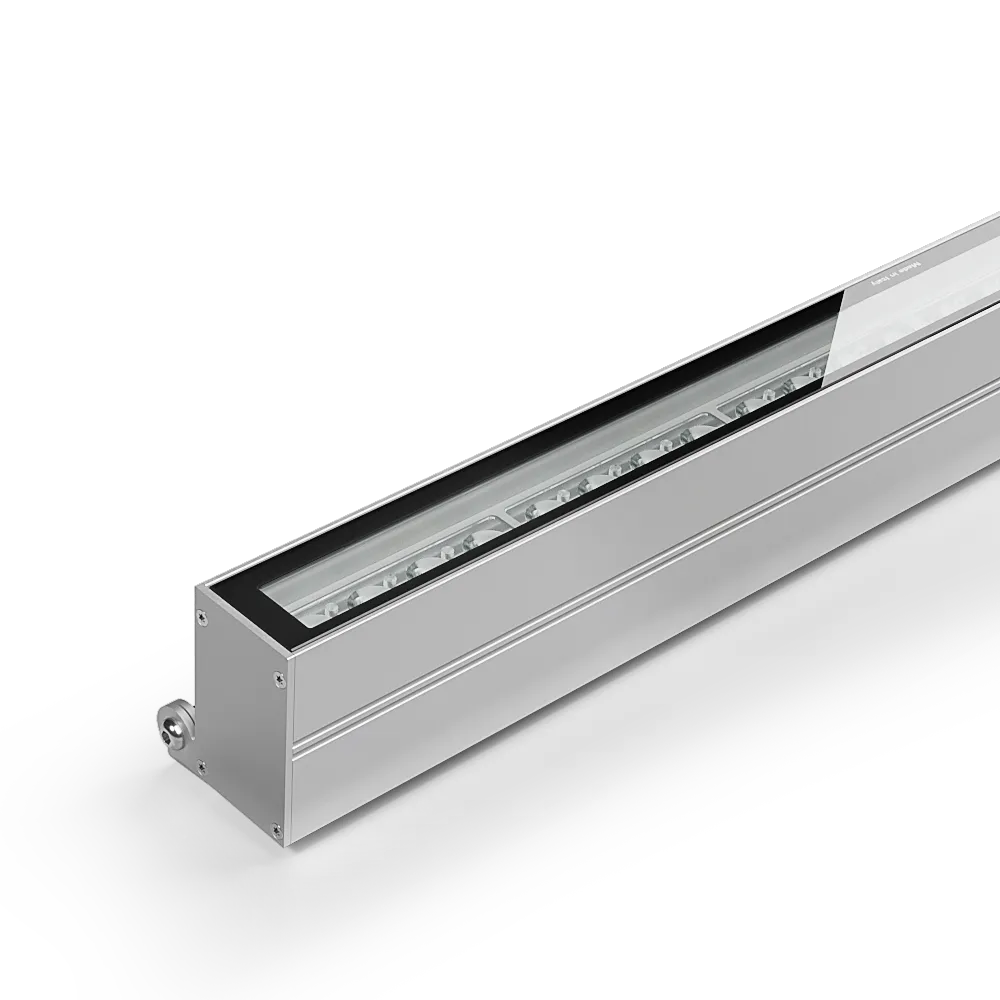

Professional modular system, with high-power LEDs for radiations of light and wall washing. Power supply from 13W to 47W. Compact body with adjustable brackets. The lengths of the modules are 300, 600, 900 and 1200 mm.Five high-precision optics, including two with elliptical beam. Excellent uniformity. Four color temperatures from 2200K to 6000K and RGBW. Workline is the perfect device for private and public urban structures such as historic, commercial, residential buildings and monuments. Easy to install thanks to its small size.Power supply on board. Control system via DMX-RDM or DALI.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off, DMX-512A and RDM-compatible, DALI-compatible |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 6000 K, RGBW (W=5700K) |
| Beam angle | 8°, 35°, 45°x8°, 75°x40°, 100° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | Silver anodized |
| Construction | extruded aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass cable gland, pressure compensation valve |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 4850 lm |
| Light efficiency | 154.9 lm/W |
| Delivered flux | 3755 lm |
| Delivered efficiency | 103.0 lm/W |
| Input power | 36.5 W |
| Net weight | 3.5 kg |
