Item ID: 40335.13051

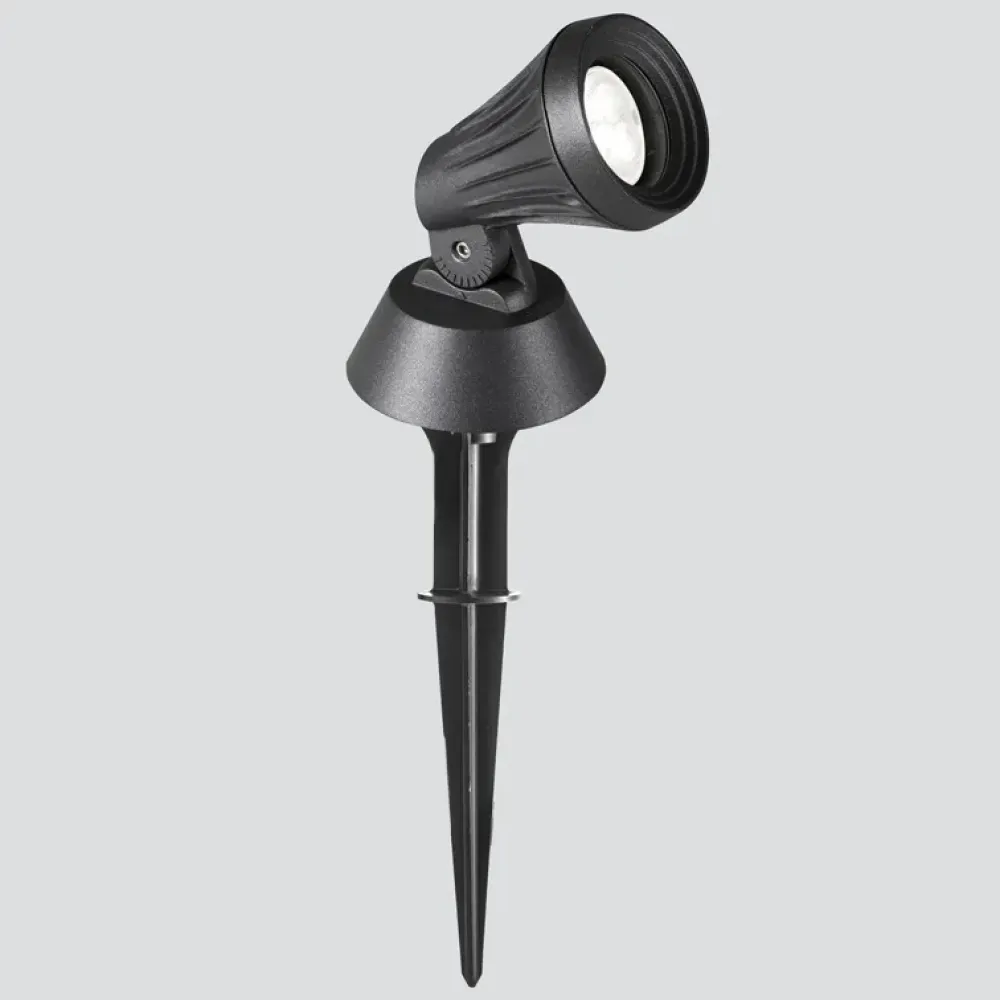

Vega 2700P/WC35.MB-Floodlights - Adjustable Floodlight with spike - Built-in driver
About the product
Adjustable fixture suitable for wall, ceiling or floor installation as a stand-alone projector or with spike support. Equipped with secondary optics for different light distributions, it is composed of an insulating base (or picket) in PC that allows you to install the luminaire directly on the ground without oxidation phenomena. All versions integrate a quick rotation/adjustment system on the horizontal plane by means of a toothed ring nut, without resorting to the aid of any tools. LED source with built-in driver. Dali dimmable version available on request with extra charge.
Product specifications
| Assembly | wall, ceiling, stand installation |
| Source flux | 1835 lm |
| Fixture source | 1288 lm |
| Apparent efficiency | 70.00% |
| Insulation class | class I |
| Overvoltage protection | 2 kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED |
| Absorbed power | 14 W |
| Power module LED | 12 W |
| Protection | IP65/IK07 |
| Body | body: die-cast aluminum, base: fiber-reinforced polyamide 30% UV-resistant GW960°C |
| Frame | die-cast aluminium |
| Screen | tempered extra-clear glass 4mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

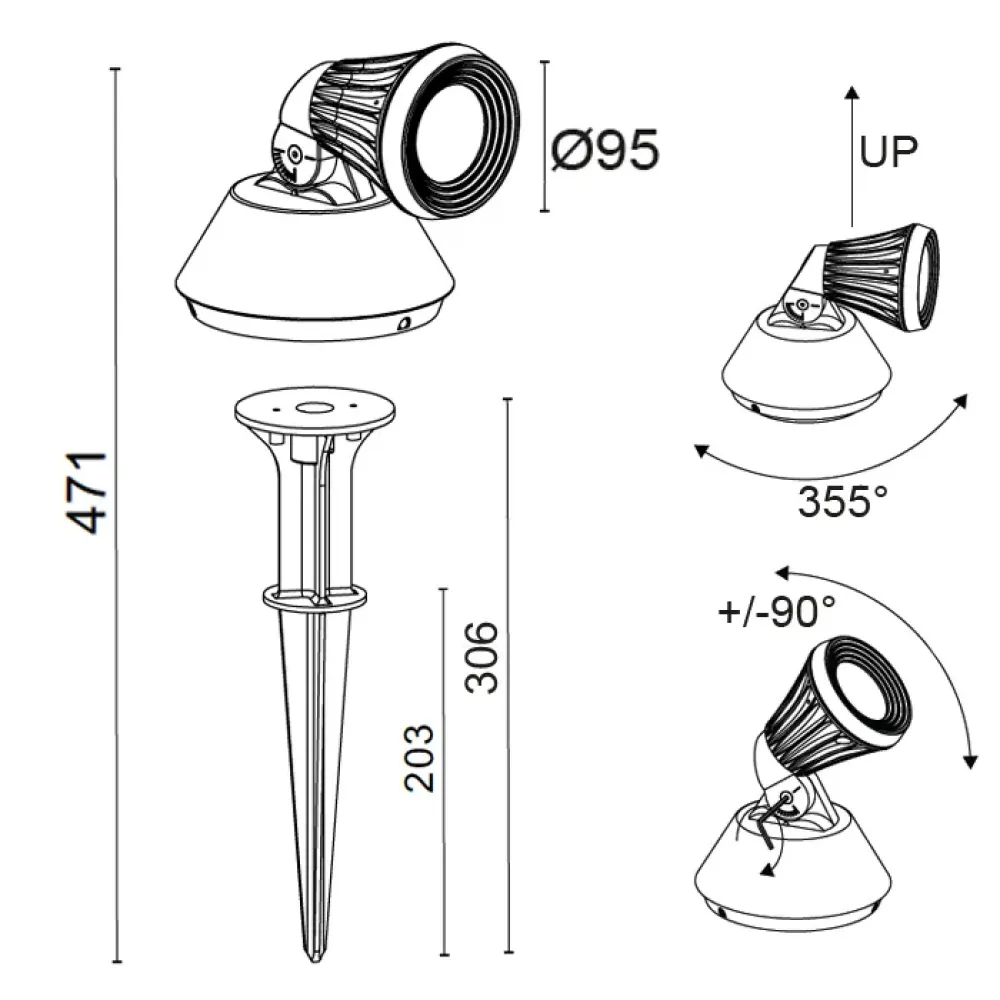

| Size | H 471 x L 185 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 350 mA |
| Control | on/off |
| Beam opening | adjustable floodlight flood/29° |
Data sheets
