Item ID: 41475.13051

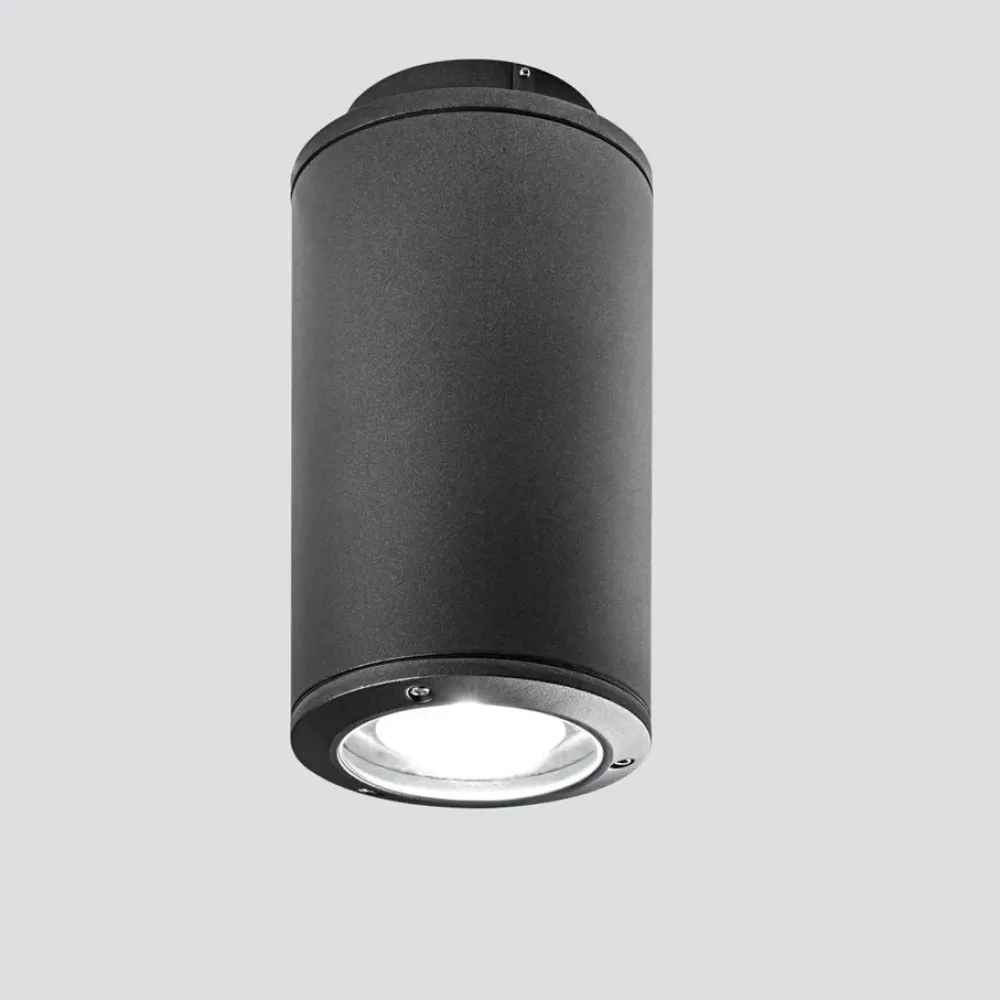

Up&Down Maxi Ceiling 7451C/ND3.WB-Ceiling Lamps - Ceiling luminaire DALI - Built-in driver
Color
Pure white RAL 9016
Black RAL 9005
White RAL 9010
Bronze
Rust
Anthracite
Slate grey
Grey RAL 9006
About the product
Ceiling luminaire ideal for grazing lighting of external facades. Up&Downd Maxi is equipped with secondary optics for controlling the luminous flux, which allow design flexibility through different combinations of direct and indirect emission.
Product specifications
| Assembly | ceiling installation |
| Source flux | 4050 lm |
| Fixture source | 3320 lm |
| Apparent efficiency | 82.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| CCT LED | 4000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Source | LED COB |
| Absorbed power | 24 W |
| Power module LED | 22 W |
| Protection | IP66/IK08 |
| Body | die-cast aluminium |
| Screen | tempered extra-clear glass 6mm with silk-screen printing |
| Seals | Closed-cell EPDM rubber |
| Screws | Stainless steel A2 |
| Paint/Finishing | UV-stabilized anti-corrosive polyester powder |

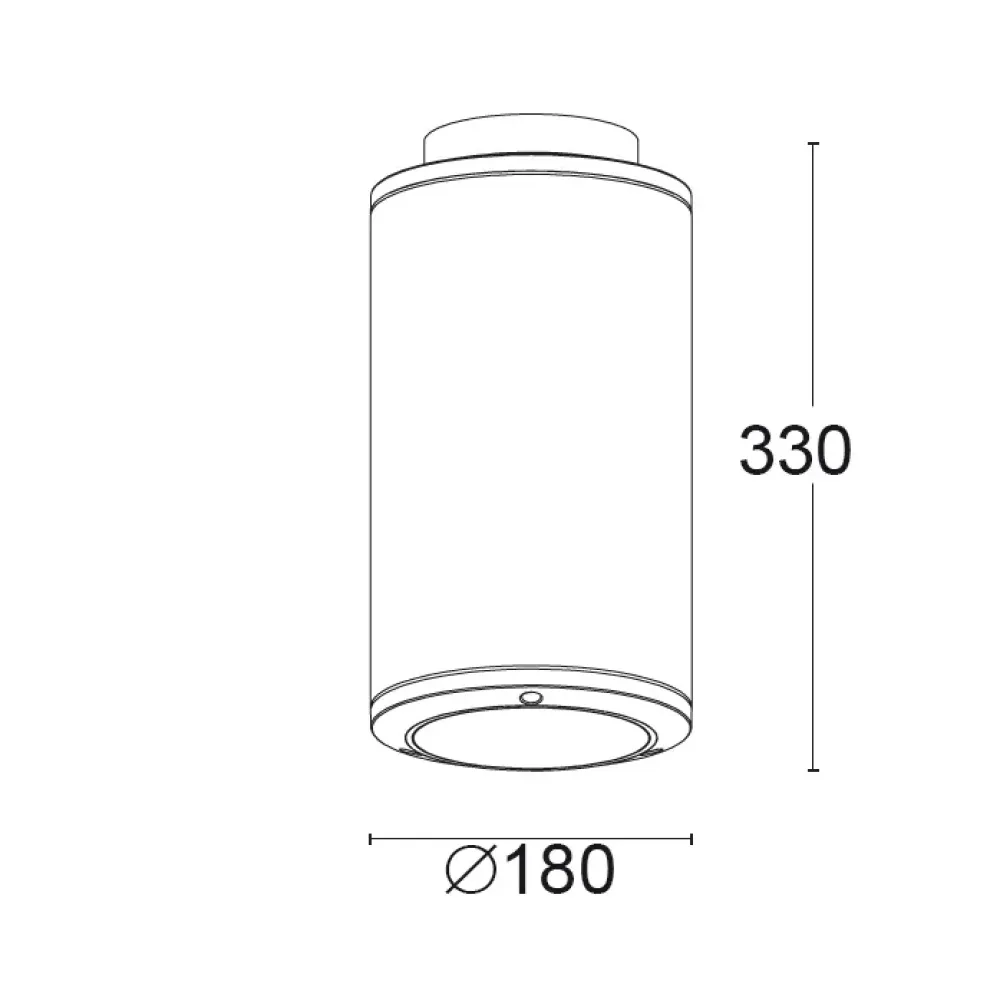

| Size | H 330 x Ø 180 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 600 mA |
| Control | DALI-2 integrated |
| Beam opening | downlight wide flood/48° |
