Product
Truck 3
Finish
Powder-coated
Power/Control
On/Off
DMX-512A and RDM compatible
DALI compatible
Light color/CCT
2200 K
3000 K
4000 K
5700 K
RGBW (W 5700 K)
Optics
5°
8°

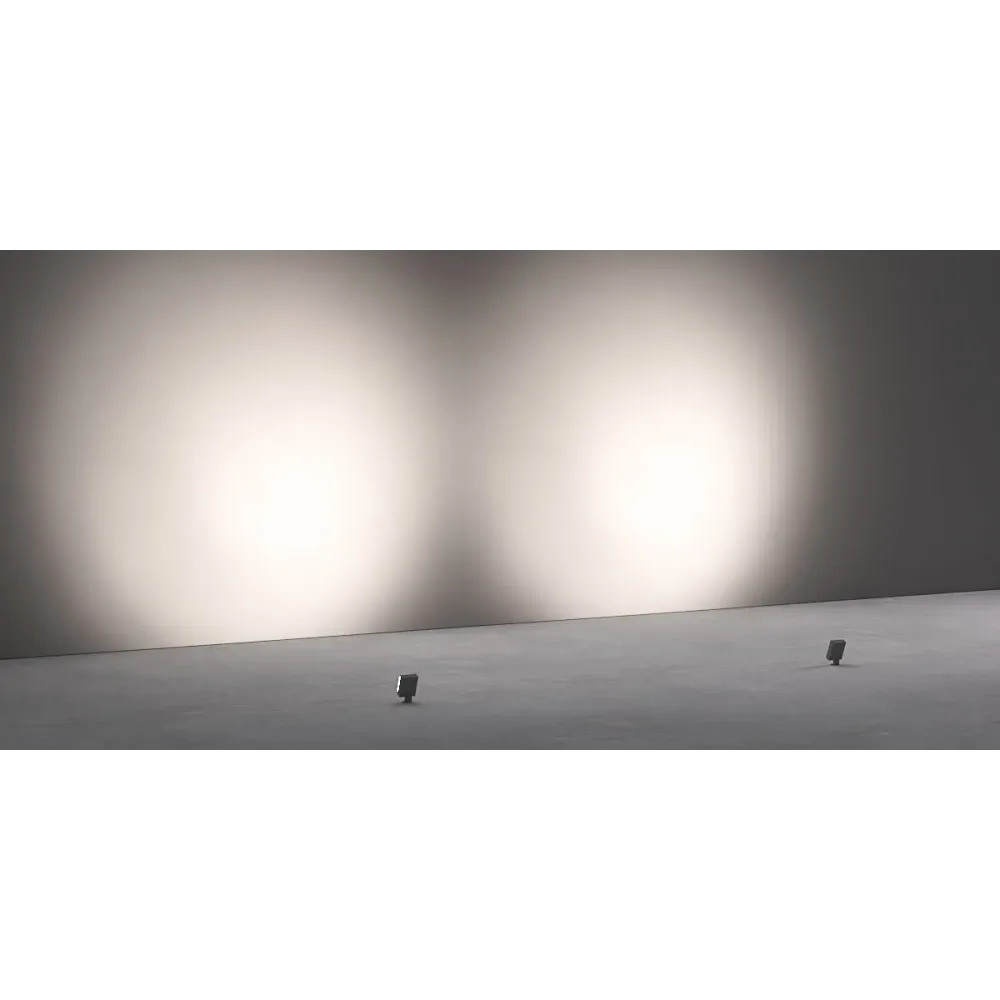

35°

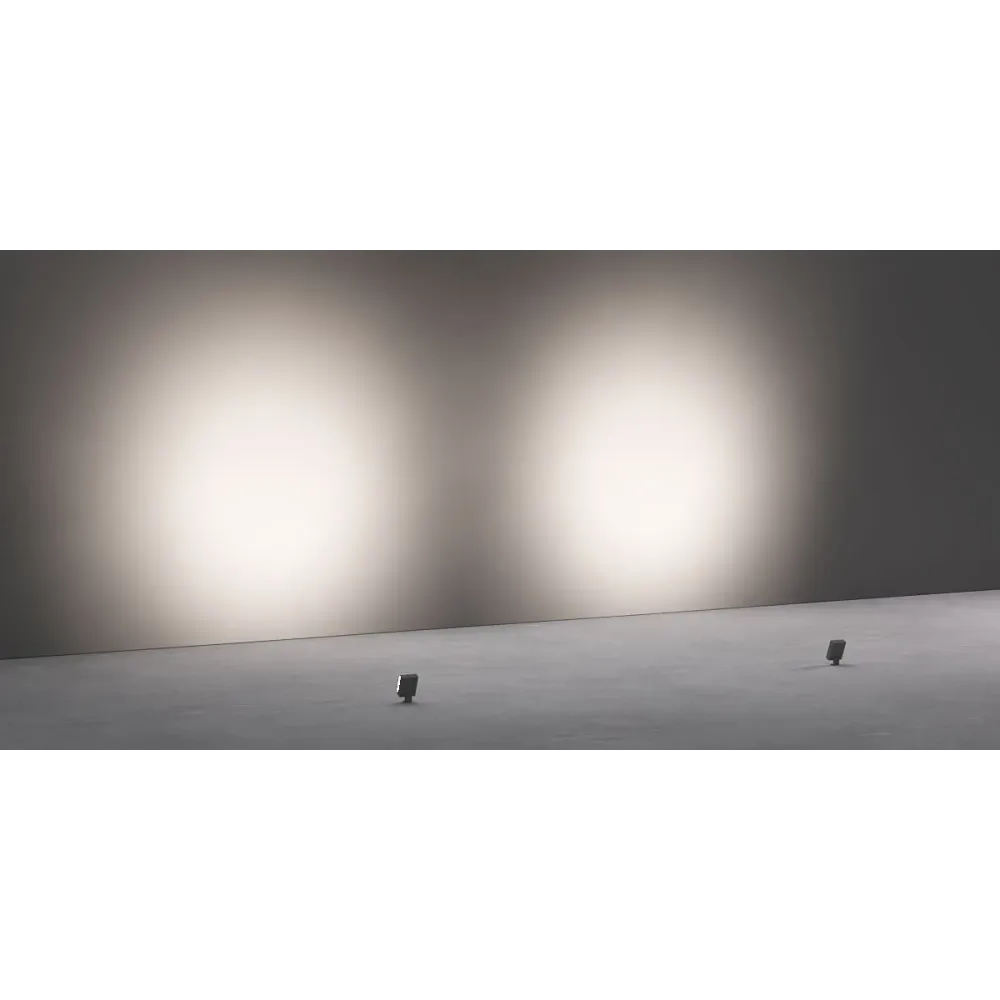

50°

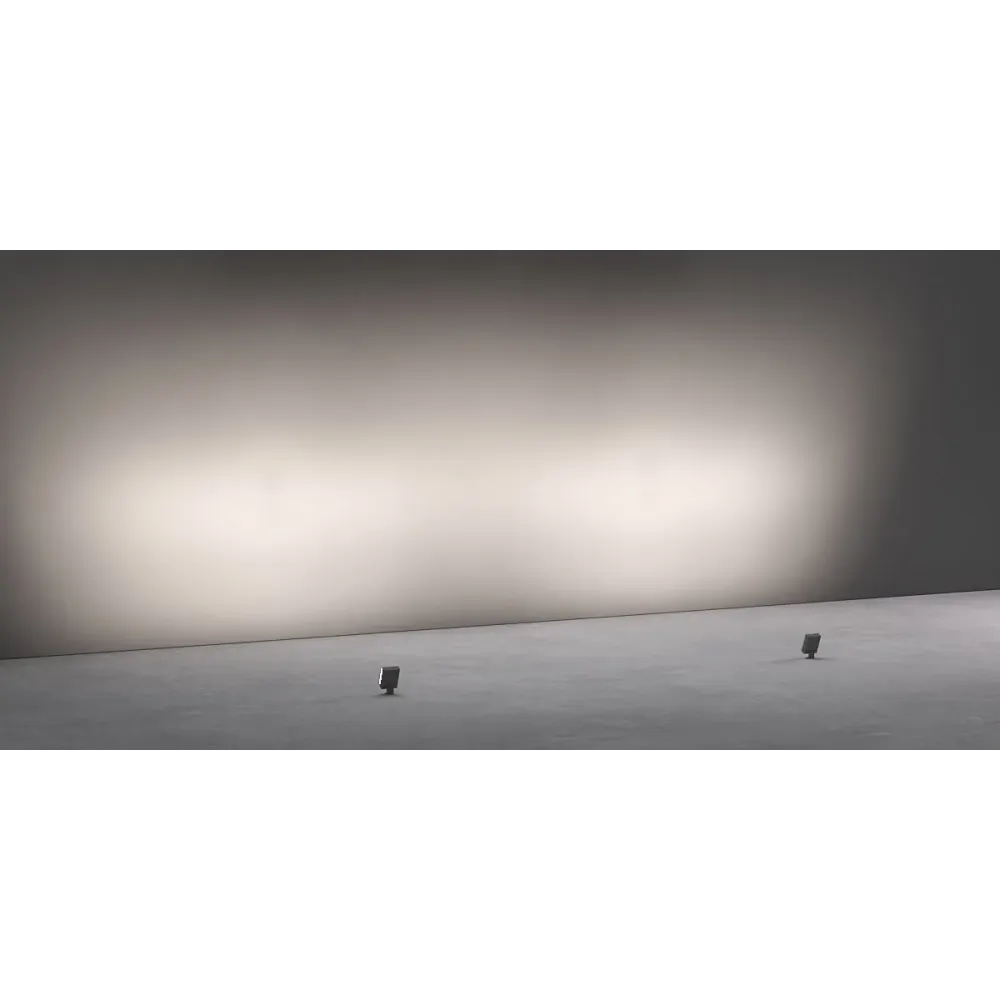

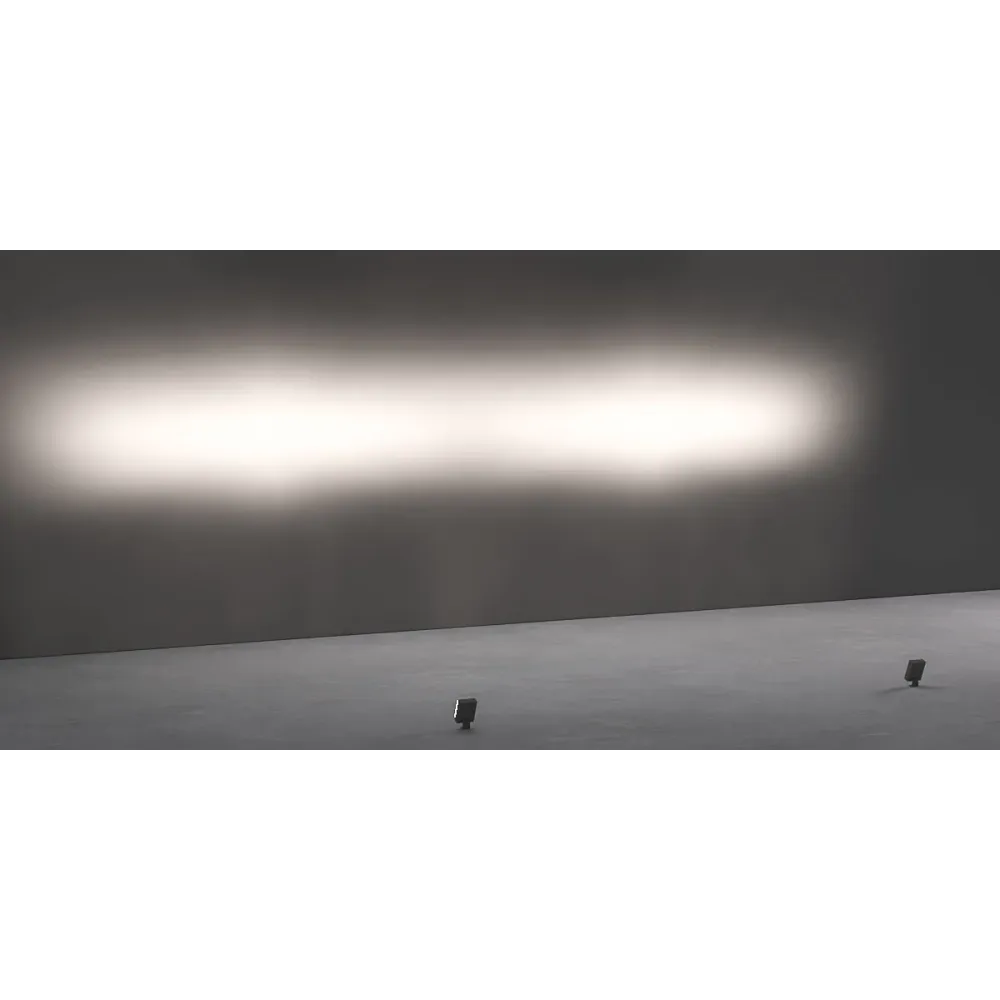

45° x 8°

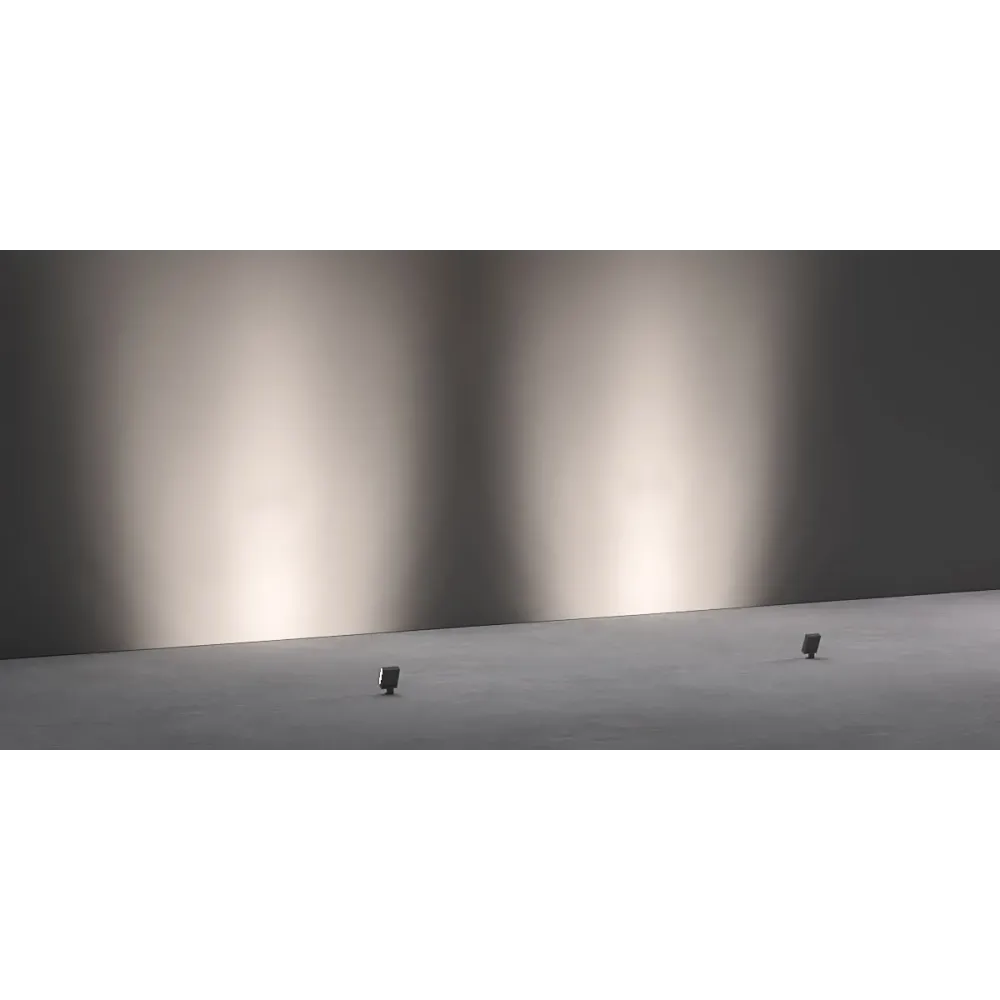

8° x 45°

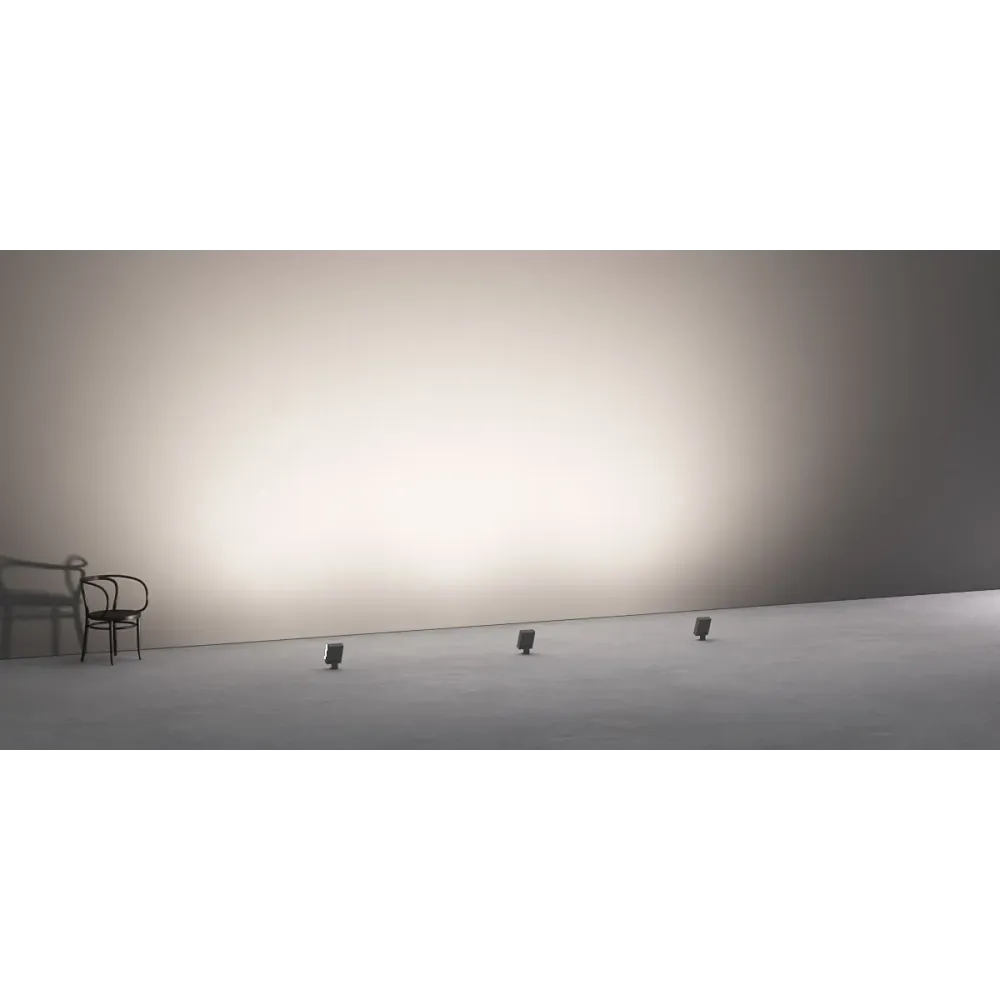

75° x 40°
40° x 75°
100°

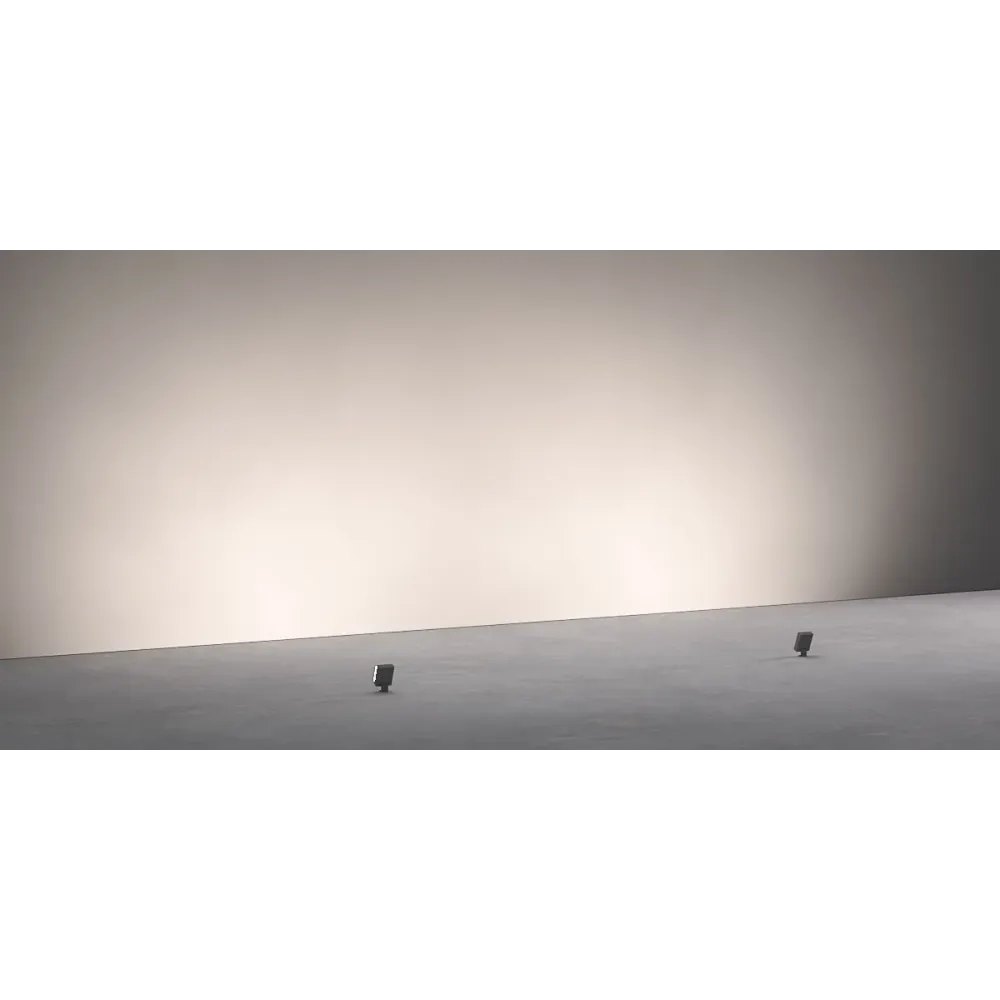

Wide asymmetrical
About the product

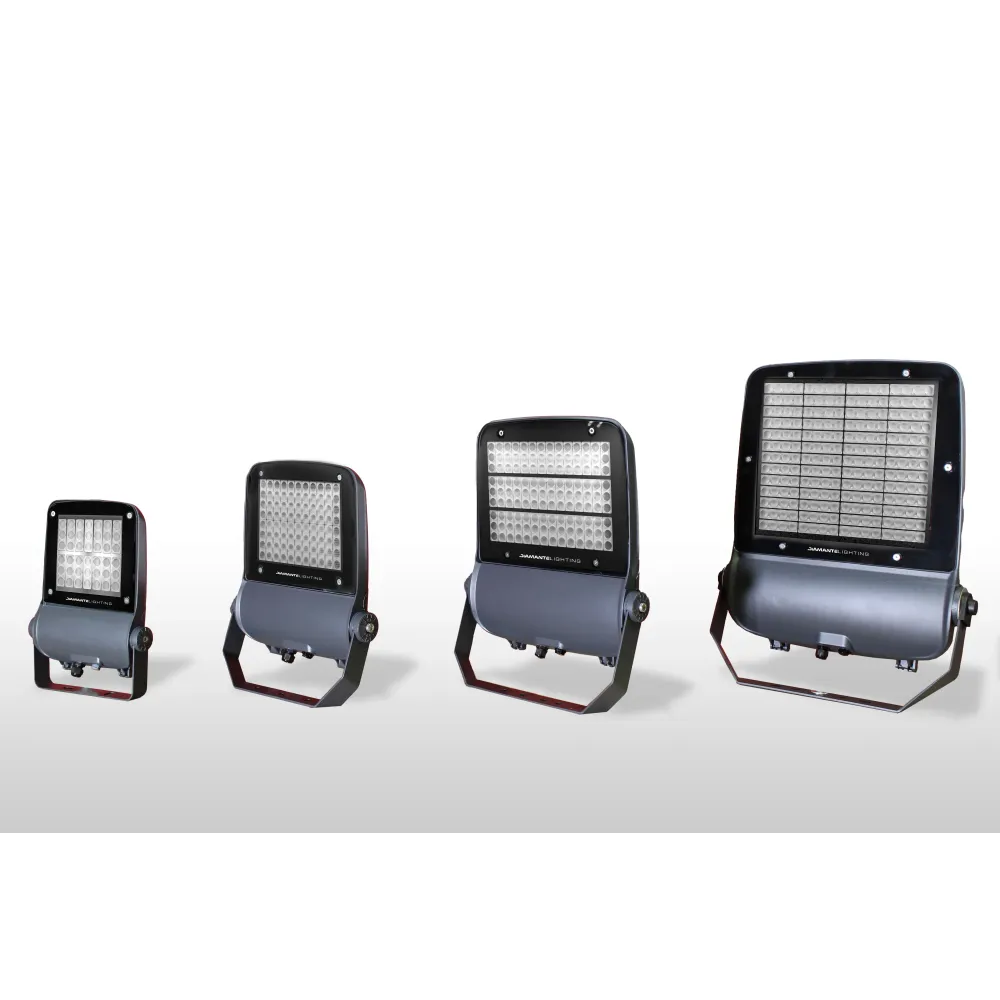

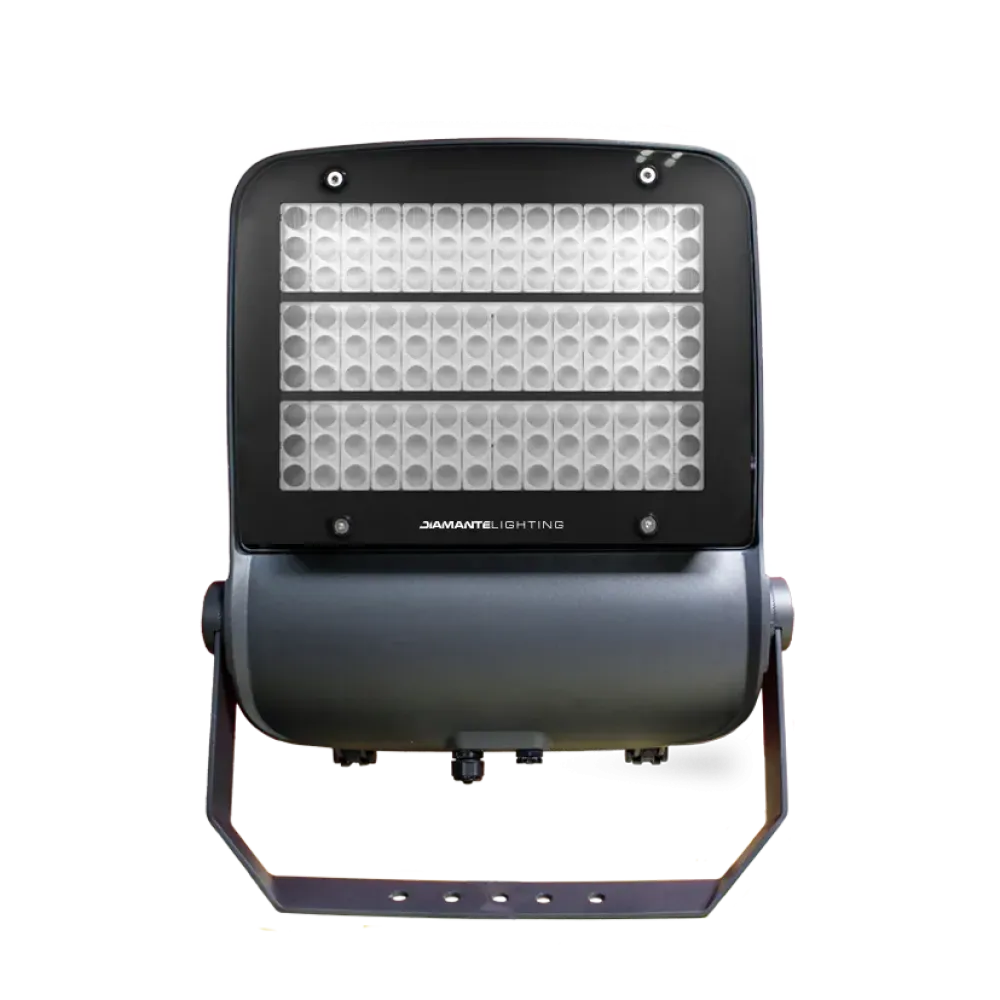

High power adjustable surface projectors in die-cast aluminum, equipped with high power LEDs. Suitable for accent lighting, grazing and wall washing of walls. Power from 80 to 450W. Ten high-precision emission angles from 4 to 100 degrees, including four elliptical and one asymmetrical emissions.Four color temperatures from 2200K to 5700K, plus RGBW. TRUCK is a family of projectors ideal for enhancing architectural surfaces, volumes and details even on very tall buildings and in any architectural context. Easy to place and aim. Simple installation. Power supply on board. Control via DMX-RDM or DALI.
Product specifications
| IP rating | IP66 |
| Management interface | on/off, DMX-512A and RDM-compatible, DALI-compatible |
| Colour temperature/CCT | 2200K, 3000K, 4000K, 5700K, RGBW (W=6000K) |
| Beam angle | 5°, 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 40°x75°, 100°, wide asymmetrical |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | powder-coated |
| Construction | die-cast aluminium alloy, tempered extra-clear glass, nickel-plated brass IP68, pressure valve |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >100 000 h L70 B10 at 25 °C |
| Source flux | 29380 lm |
| Light efficiency | 133.0 lm/W |
| Delivered flux | 22730lm |
| Delivered efficiency | 90.0 lm/W |
| Input power | 250 W |
| Net weight | 12 kg |
