Item ID: 15090.8481.987.7687.1054.990
Tile 10 constant current input - insulation class III
Product
Tile 10
Finish
Silver anodized
Power/Control
By remote device
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
120° opal diffuser
About the product

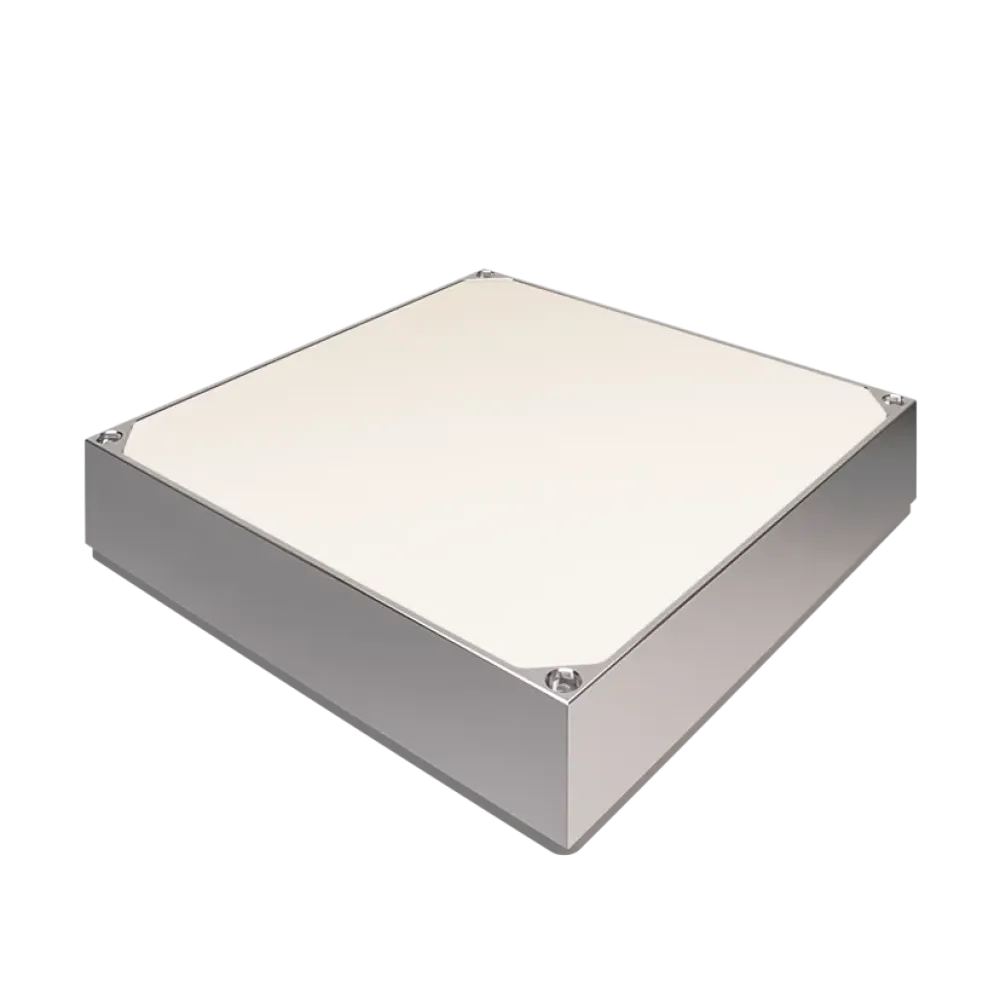

Recessed projector in machined aluminum alloy equipped with medium power LEDs for general ground lighting. Sturdy construction, walkable and vehicular. Power 10W. Diffuse emission. Four color temperatures from 2200K to 5700K. Remote power supply.
Product specifications
| IP rating | IP66/67 |
| Management interface | by remote device |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 120° opal diffuser |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, silicone gasket, sandblasted tempered glass, nickel-plated brass |
| Power supply | Remote power supply|Constant current |
| Insulation class | Insulation class III |
| Voltage | constant current |
| IK rating | 10 |
| Source type | Mid power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 2000 lm |
| Light efficiency | 175.4 lm/W |
| Delivered flux | 1115 lm |
| Delivered efficiency | 97.9 lm/W |
| Input power | 11.5 W |
| Net weight | 2.4 kg |
