Product
Thinwater 500
Finish
Stainless steel
Power/Control
On/Off optional dimming via accessories
Light color/CCT
3000 K
4000 K
RGB
Optics
120° opal diffuser

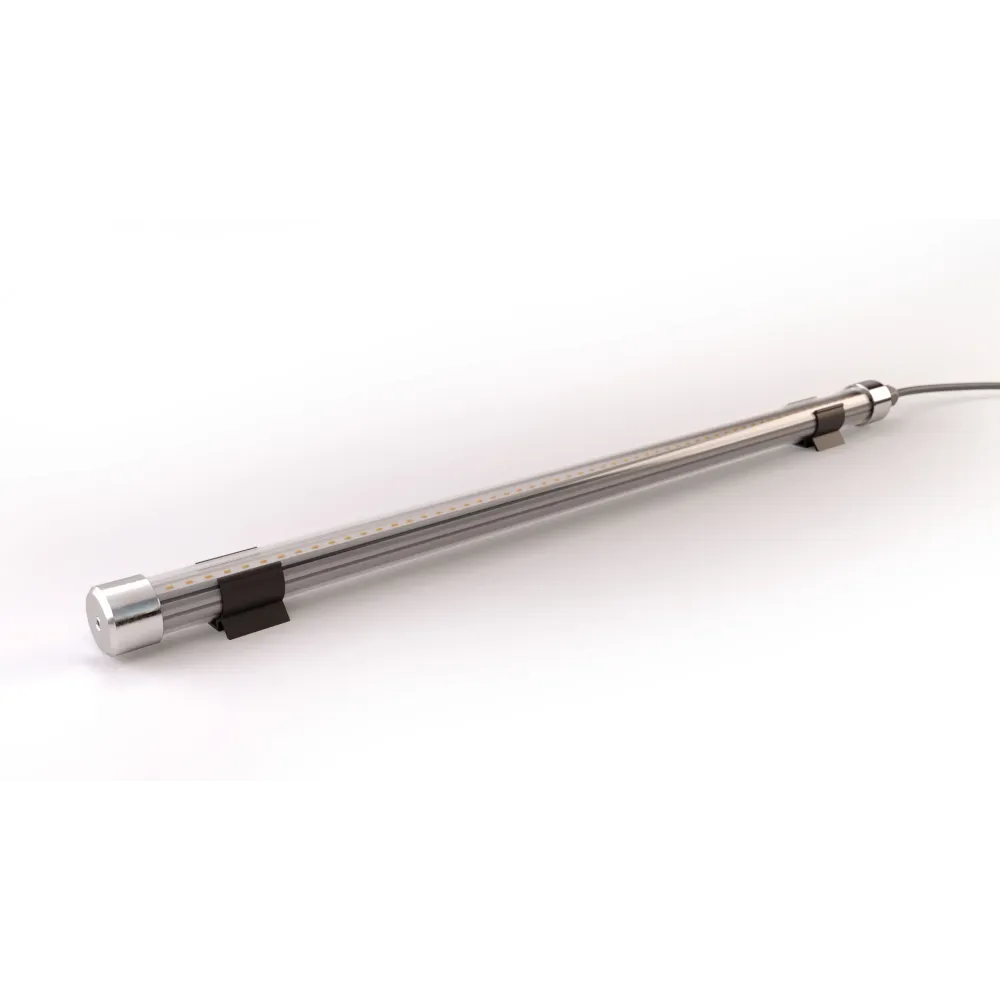

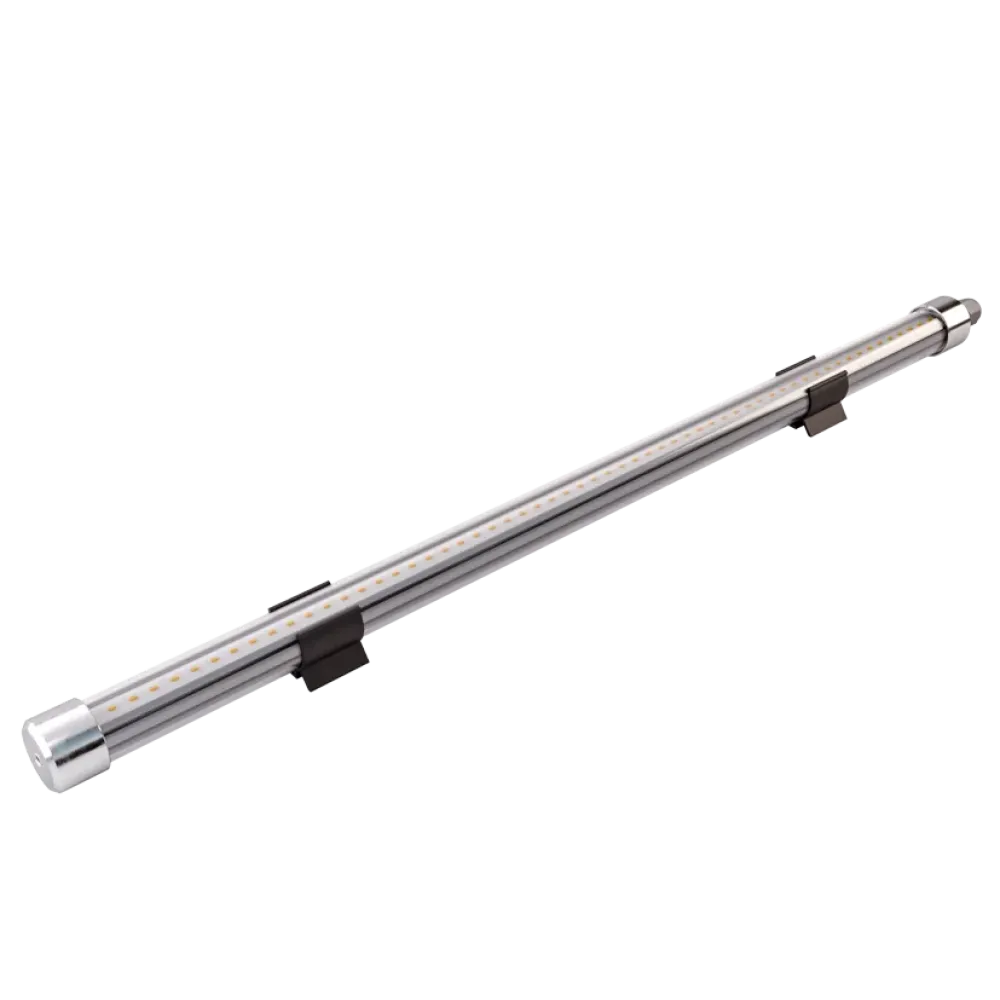

About the product
Direct vision light, for accents and contours. Professional modular system with medium power LEDs. Pilot voltage 24Vdc, power 14W / m. Custom module lengths from 200 mm to 1500 mm. Diffused light. Three color temperatures 3000K, 4000K and RGB. Separate power supply.
Product specifications
| IP rating | IP68 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 3000 K, 4000 K, RGB |
| Beam angle | 120° opal diffuser |
| Operating temperature | -30°C to 55°C |
| Storage temperature | -50°C to 80°C |
| Mounting | surface, permanent immersion |
| Finishing | stainless steel |
| Construction | UV-protected extruded polycarbonate, stainless steel plugs and connectors, silicone gasket |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24 V |
| IK rating | 8 |
| Source type | Mid power LED |
| Source lifespan | >50 000 h L80 B10 at 25 °C |
| Source flux | 1135 lm |
| Light efficiency | 165.7 lm/W |
| Delivered flux | 970 lm |
| Delivered efficiency | 141.8lm/W |
| Input power | 7 W |
| Net weight | 0.43 kg |
