Product

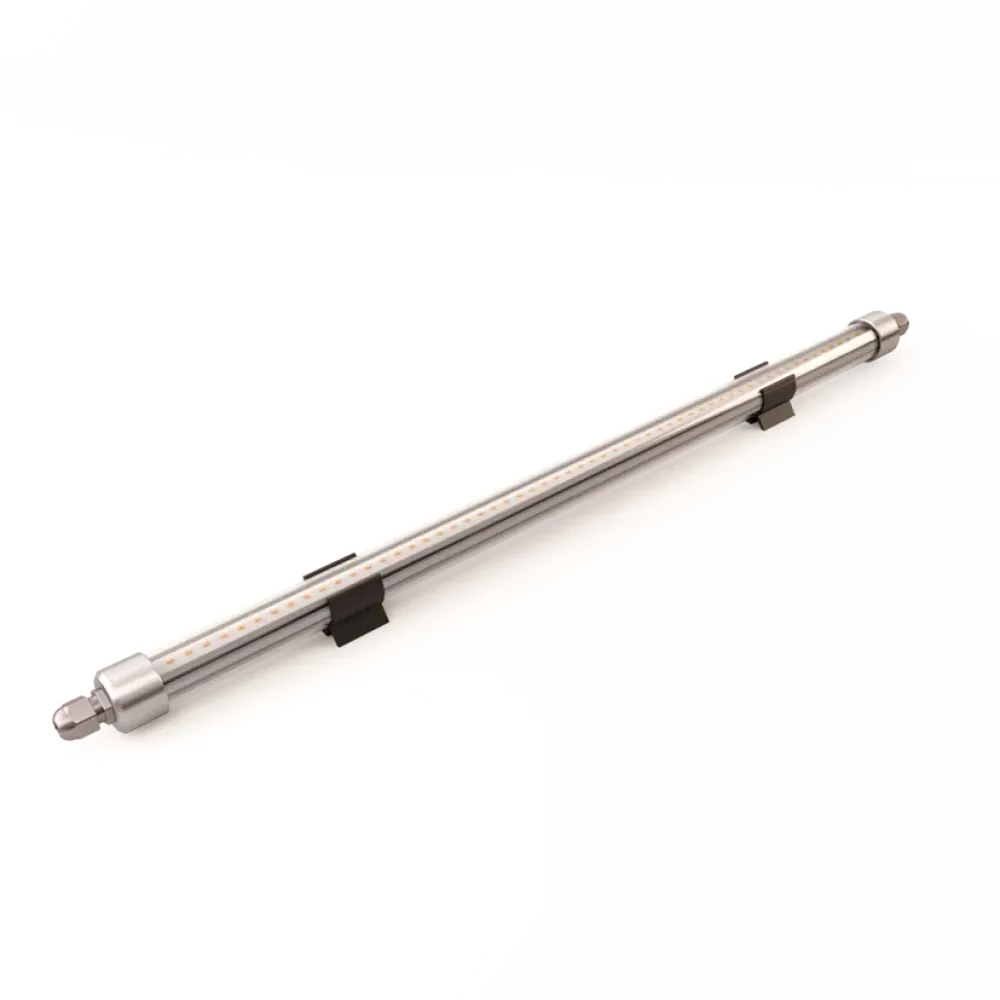

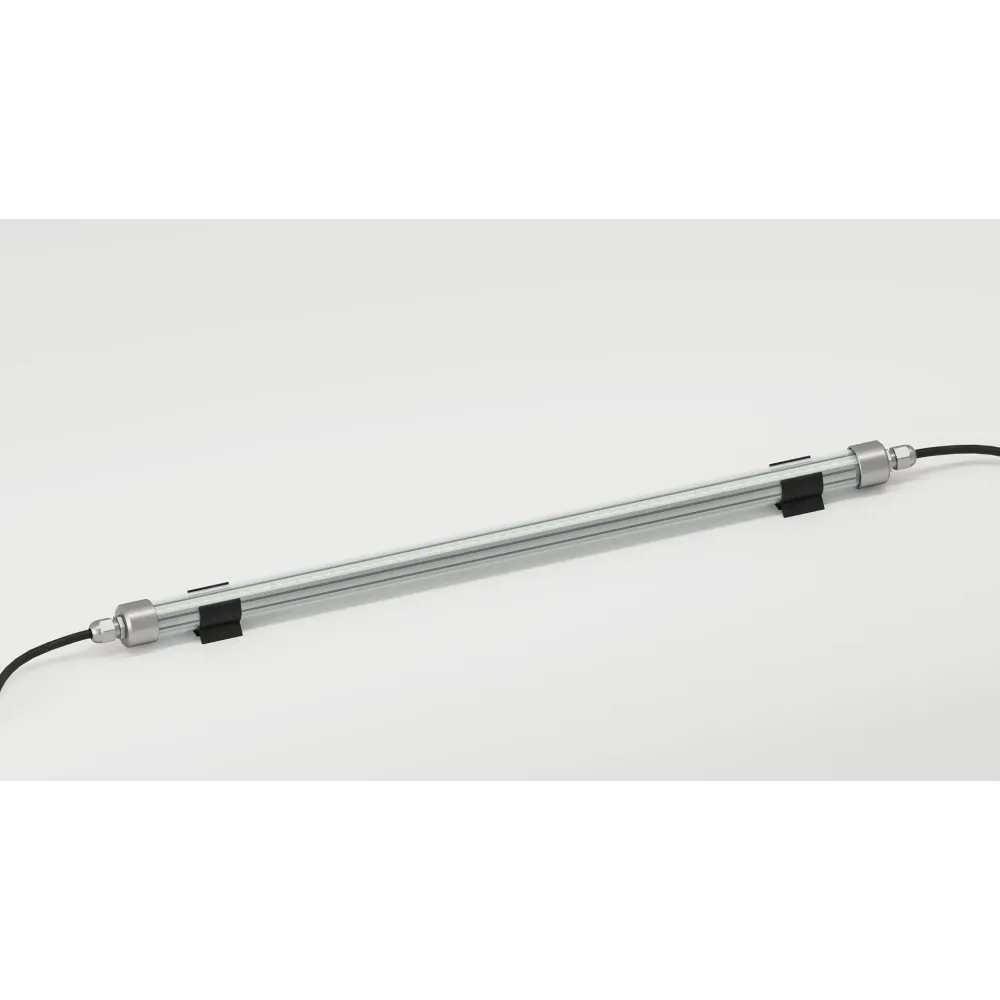

Thintube 500
Finish
Silver anodized
Power/Control
On/Off optional dimming via accessories
Light color/CCT
3000 K
4000 K
RGB
Optics
120° opal diffuser
About the product
Direct vision light, for accents and contours. Professional modular system with medium power LEDs. Pilot voltage 24Vdc (RGB version) 48VDC (white version), power 14.5W (RGB version) 16W (white version). Custom module lengths from 200 mm to 1500 mm. Diffused light. Three color temperatures of 3000K, 4000K and RGB. Through wiring. Separate power supply.
Product specifications
| IP rating | IP68 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | RGB |
| Beam angle | 120° opal diffuser |
| Operating temperature | -30°C to 55°C |
| Storage temperature | -50°C to 80°C |
| Mounting | surface, permanent immersion |
| Finishing | Silver anodized |
| Construction | UV-protected extruded polycarbonate, aluminum caps, silicone seal, nickel-plated brass cable gland |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24 V |
| IK rating | 8 |
| Source type | Mid power LED |
| Source lifespan | >50 000 h L80 B10 at 25 °C |
| Source flux | 210 lm |
| Light efficiency | 29.0 lm/W |
| Delivered flux | 160 lm |
| Delivered efficiency | 22.5 lm/W |
| Input power | 7 W |
| Net weight | 0.35 kg |
Data sheets
