About the product

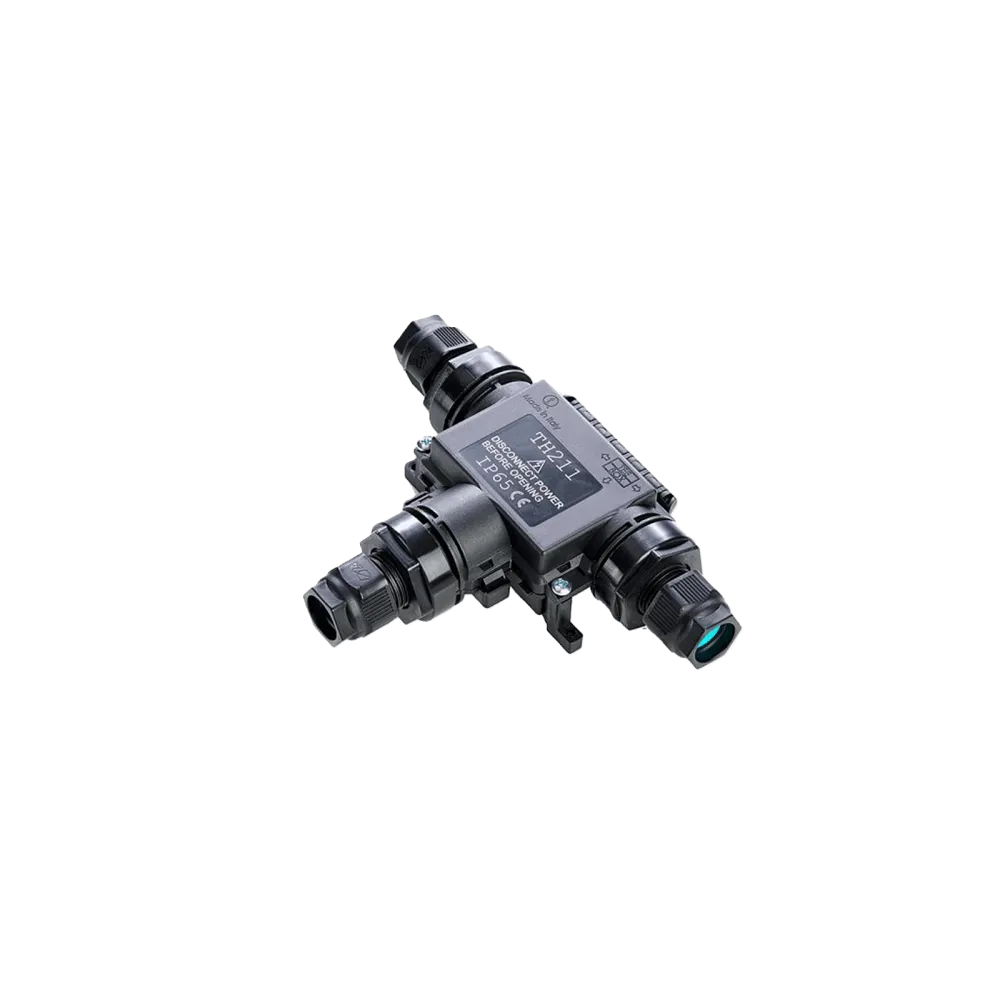

Junction Box TH211 from Techno, Italy
3way Cable Junction Box
- 3-way T-Distributor with 3pole cable connector
- For cable diameter: Ø 7.0 – 13.5 mm
- Dimensions outside: 137.0 x 118.0 x 36.0 mm
- Dimensions inside: 58.0 x 45.0 x 27.0 mm
- IP Rate: IP65
Further, not published products and versions from Techno on request.
Technical data
No of outlets: 3
Dimension Outside: 137.0 x 118.0 x 36.0 mm
Dimension Inside: 58.0 x 45.0 x 27.0 mm
Temperature Mark: T 85°C
Material of the housing: PA66 UL94 V2
O-Rings: TPE
Material characteristics: Halogenfree, Siliconfree
Errors and Technical changes reserved
Product specifications
| Pole | 3 |
| Nominal current | 24 A |
| Nominal voltage (V) | 450 V |
| Cable diameter | 7-13.5 mm |
| Wire section | 0.5-4.0 mm² |
| IP protection | IP65 |
| Certificates | IEC |
| Manufacturer | Techno |
