About the product

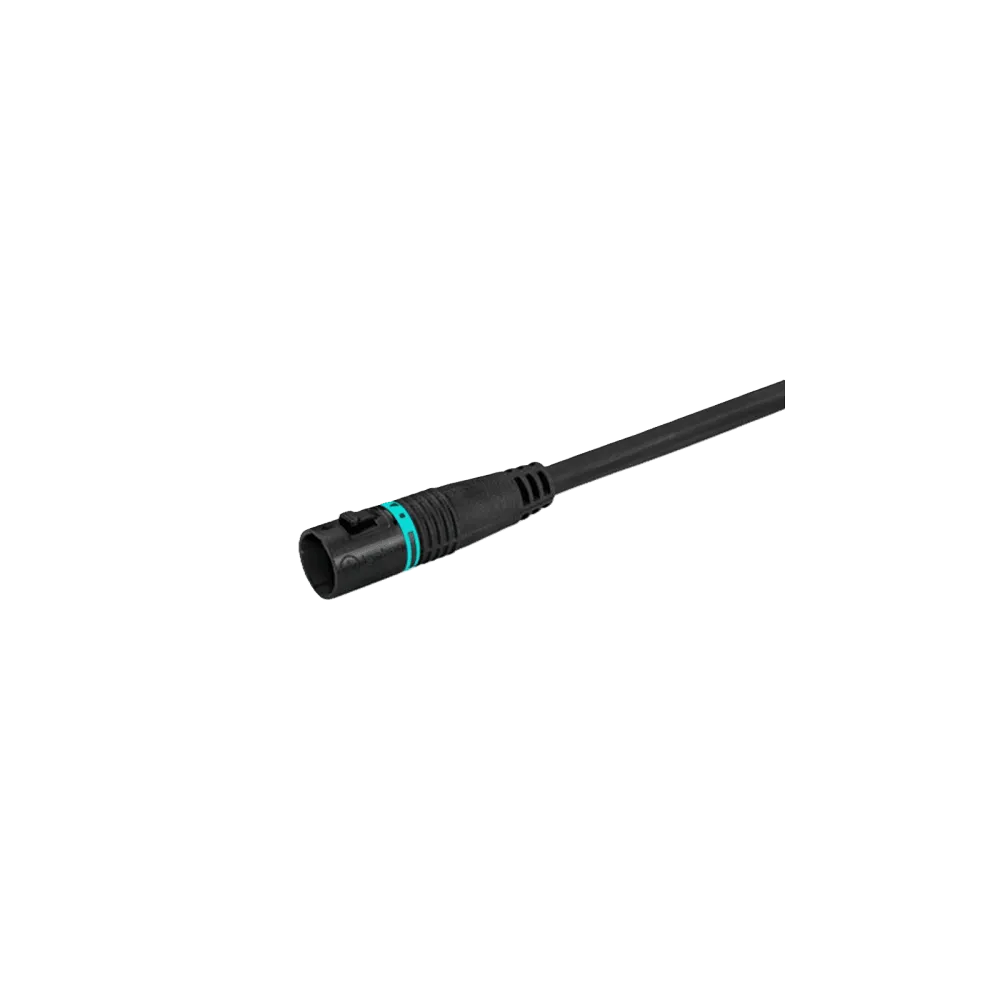

3-Pole Micro Circular Connector THC381 with Push-Pull-Lock and cable from Techno, Italy
Type: Micro Circular Plug Connector (male) with cable 1m
Cable Assembly: Overmolded
Locking-System: Push-Pull
Counterpart: THB.381.B3E, THC.381.B3E.Lx
Further, not published products and versions from Techno on request.
Technical data
- No of poles: 3 (L-N-E)
- IP Rate: IP68
- Cable type: H07RN-F (black)
- Cable cross section: 0.75 mm2
- Nominal Voltag: 500V AC
- Nominal Current: 10A
- Temperature range: -40°C…+100°C
- Manufacturer: Techno
Errors and Technical changes reserved
Product specifications
| Product | Connecting cable |
| Pole | 3 |
| Nominal current | 10 mA |
| Nominal voltage (V) | 500 V |
| Wire section | 0.75 mm² |
| IP protection | IP68 |
| Length (m) | 1 mm |
