About the product

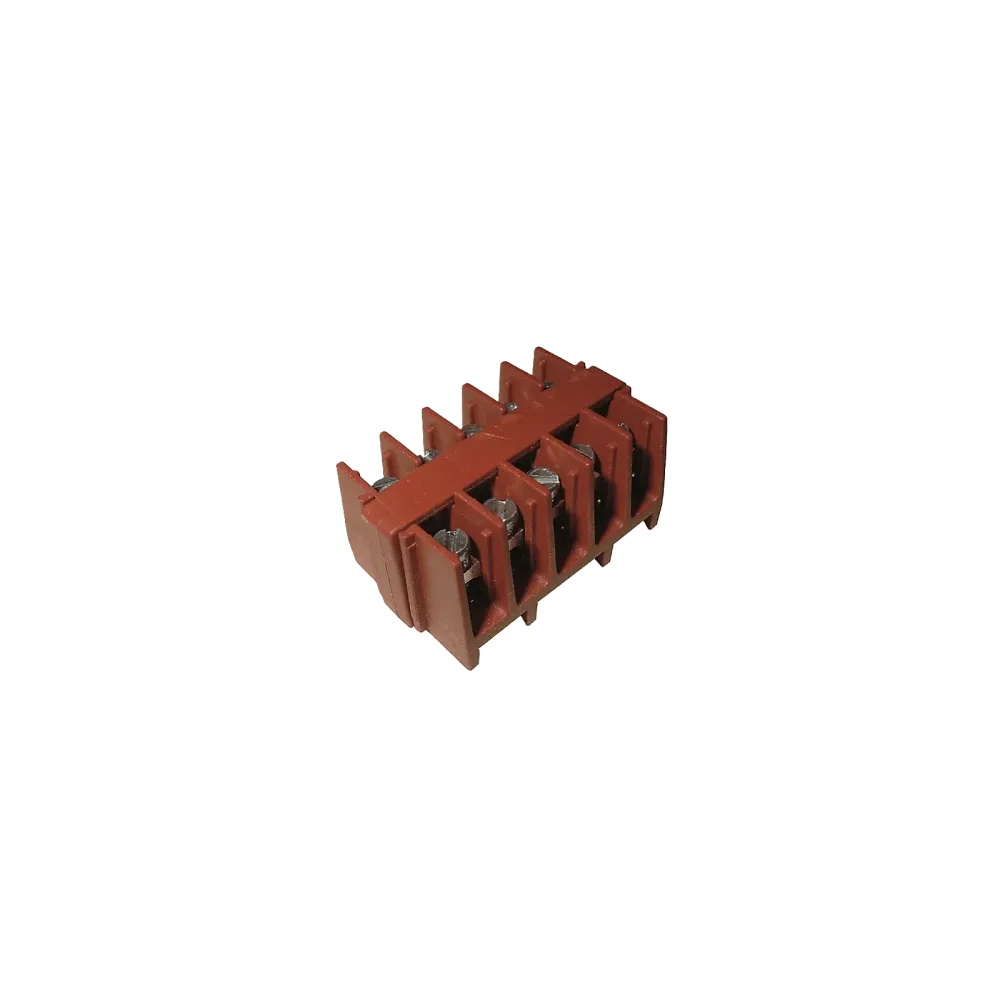

THB029 cable connector from Techno
. Compact 2-way cable distributor from Techno with 5 poles
- 2-way cable connector
- For cable cross-sections: 0.5 - 4.0 mm2
- Dimensions: 20.6 x 32.0 x 16.4 mm
- Protection class: IP00
Other Techno products and designs on request.
Technical data
Number of outputs: 2
External dimensions: 20.6 x 32.0 x 16.4 mm
Temperature: T 125°C
Housing material: PA66 GF UL94 V0
Contact material: Brass
Protection class: IP00
Subject to technical changes
Product specifications
| Manufacturer | Techno |
| Nominal voltage (V) | 450 V |
| Nominal current | 32 A |
| IP protection | IP00 |
| Number of poles | 5 |
| Connection cross-section (mm²) | 0.5 - 4.0 mm² |
