Product
Stepled 3 C
Finish
Silver anodized
Stainless steel
Power/Control
On/Off
Light color/CCT
2200 K
3000 K
4000 K
5700 K

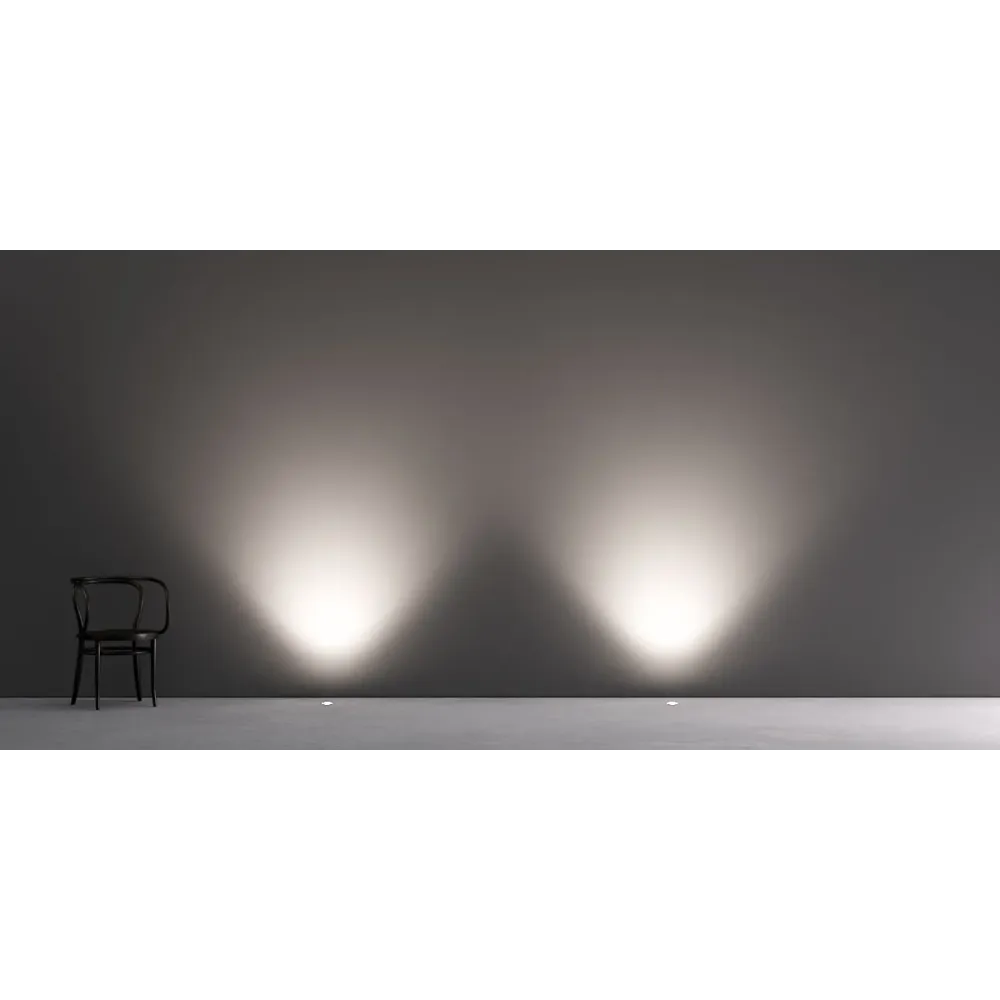

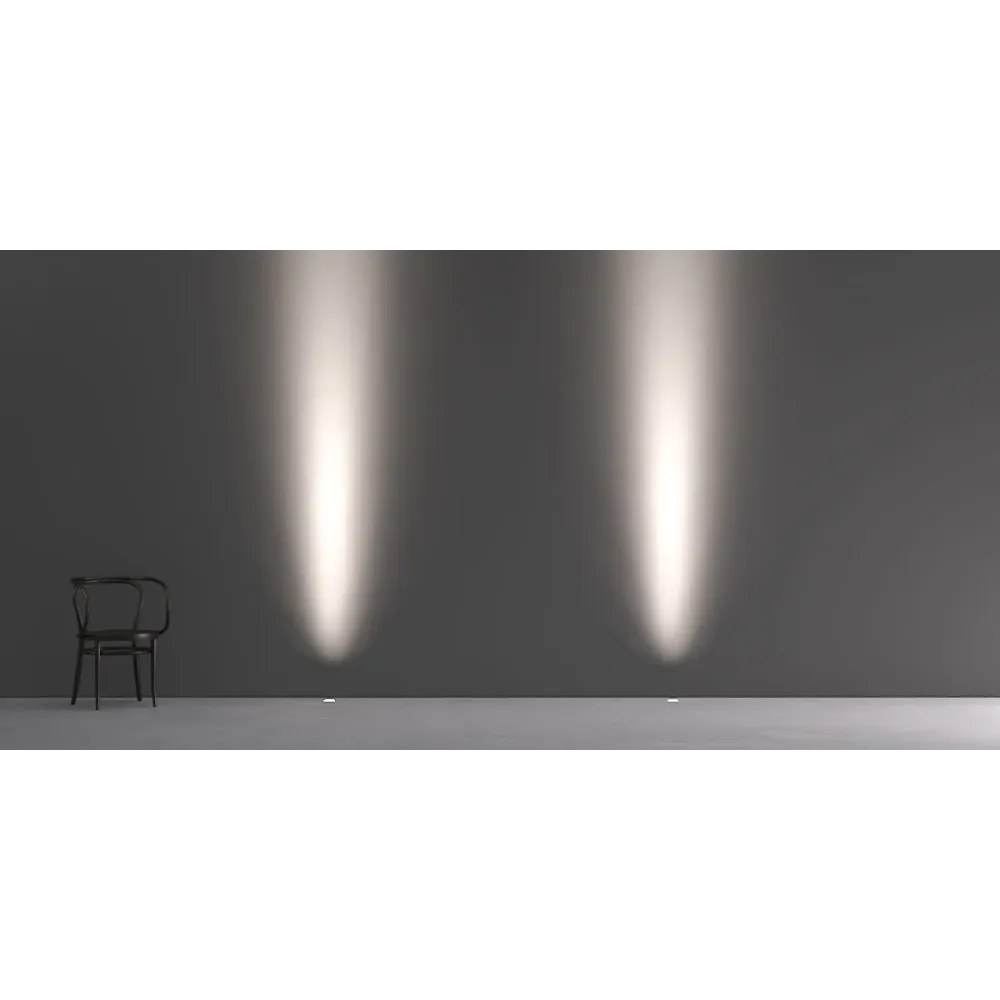

Optics

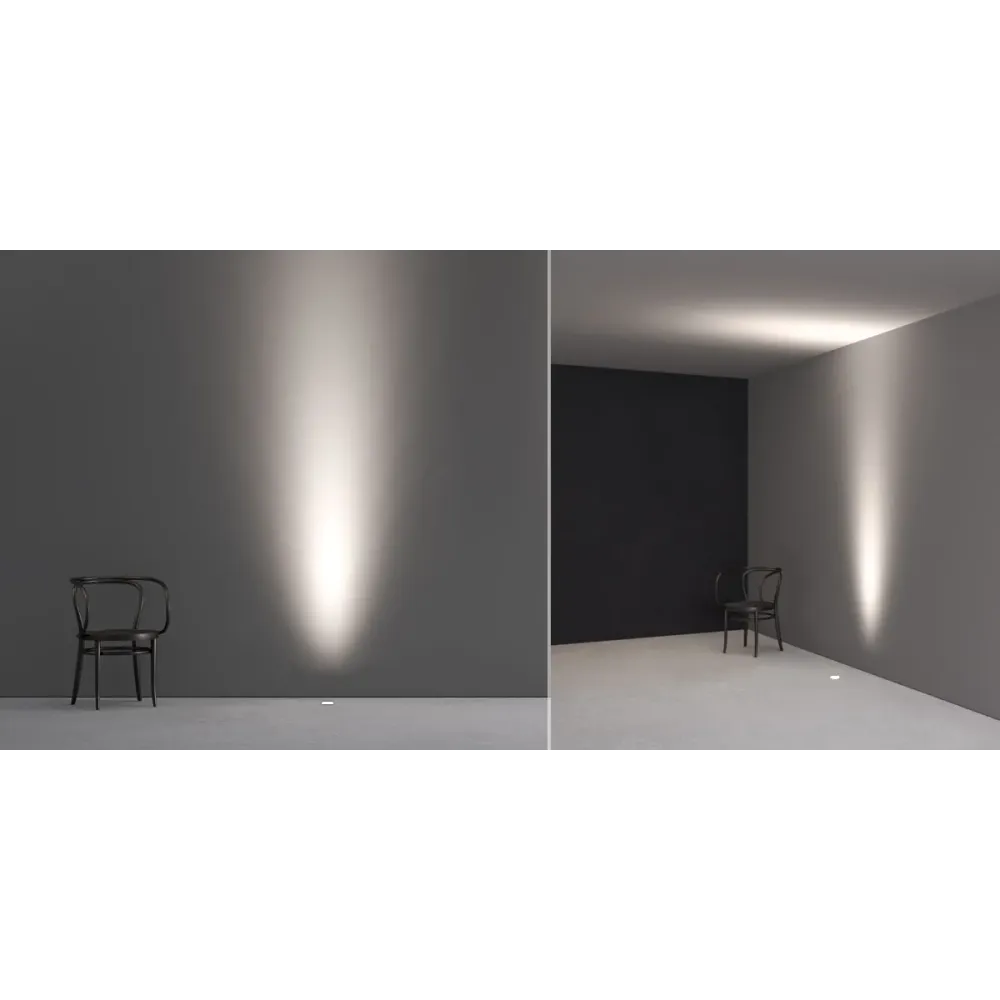

10°

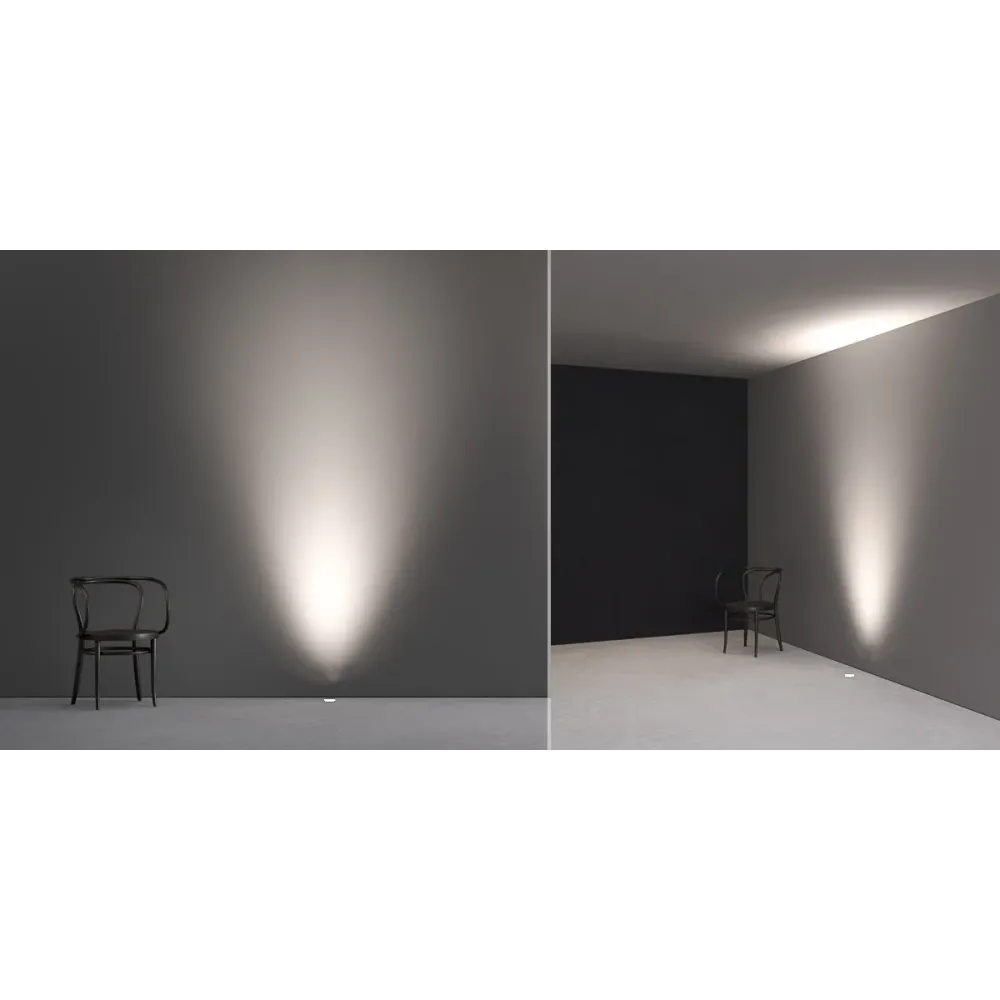

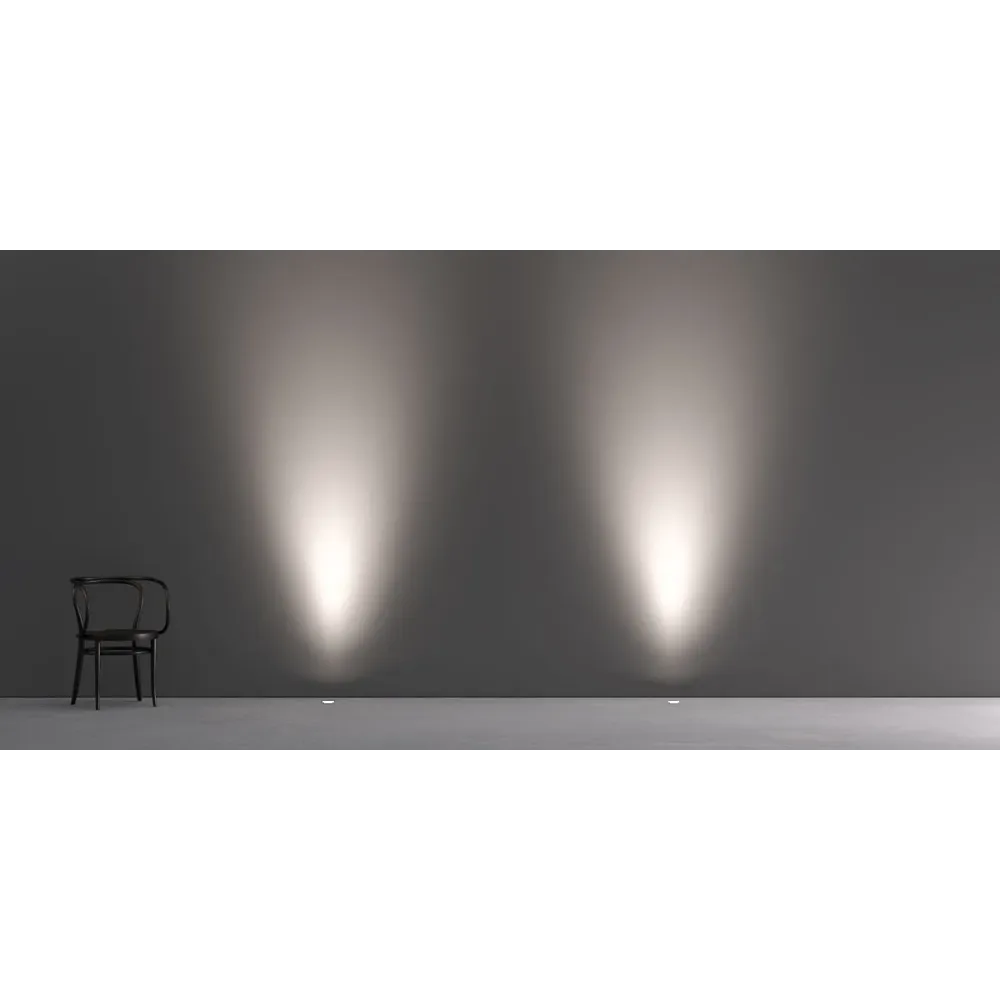

30°

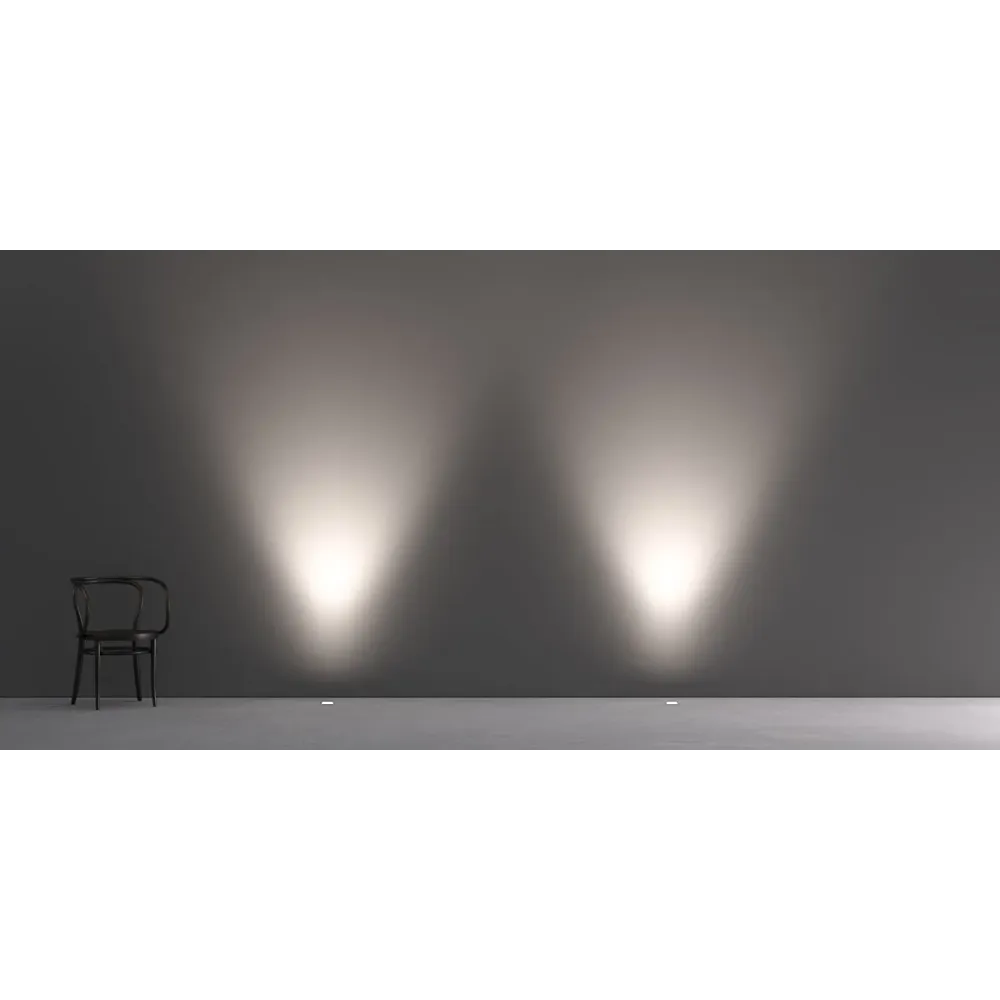

50°
12° x 35°
35° x 12°
80°

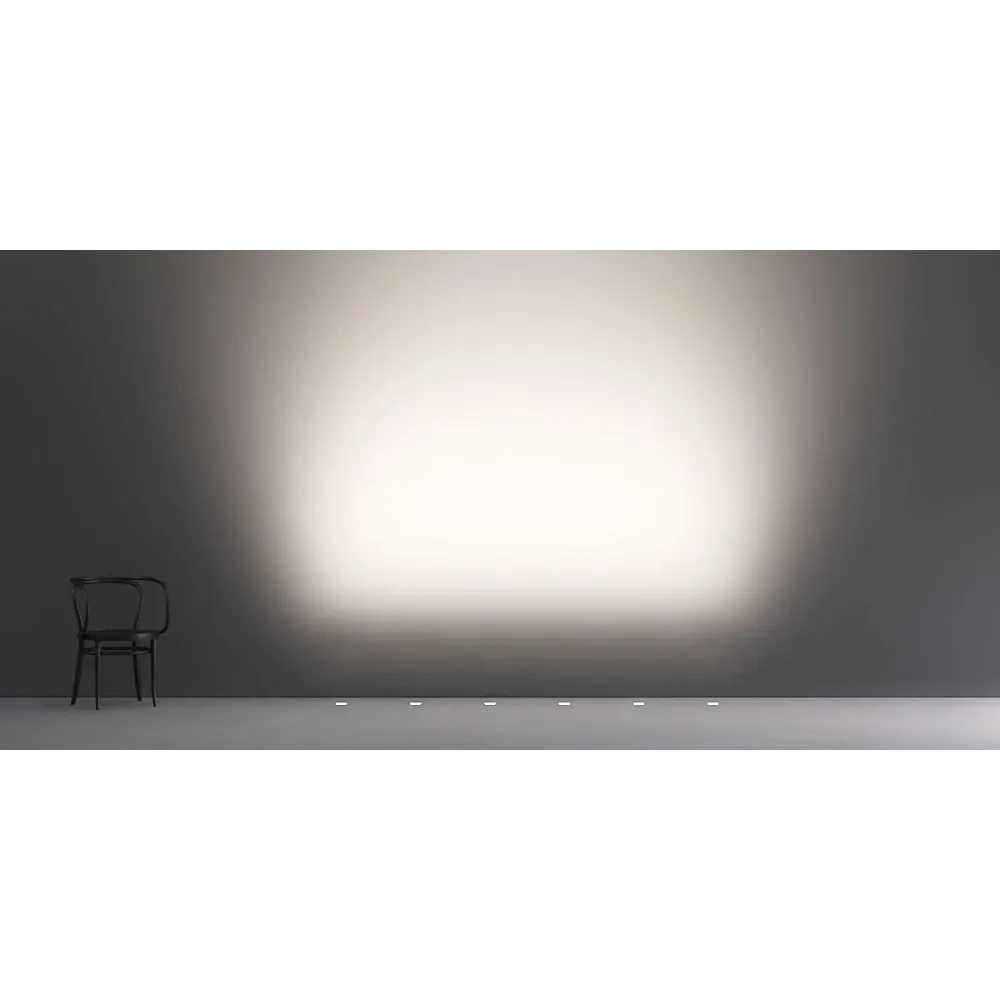

Narrow wall washer

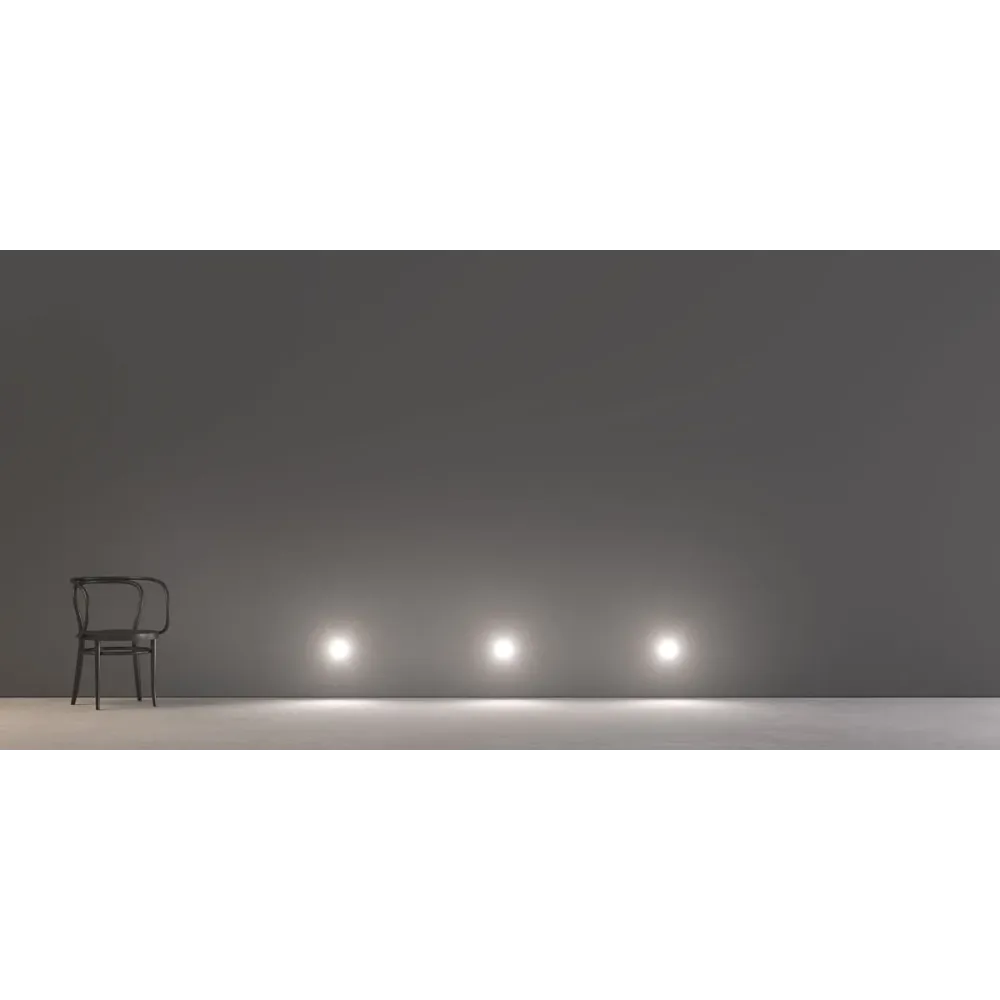

120° opal diffuser

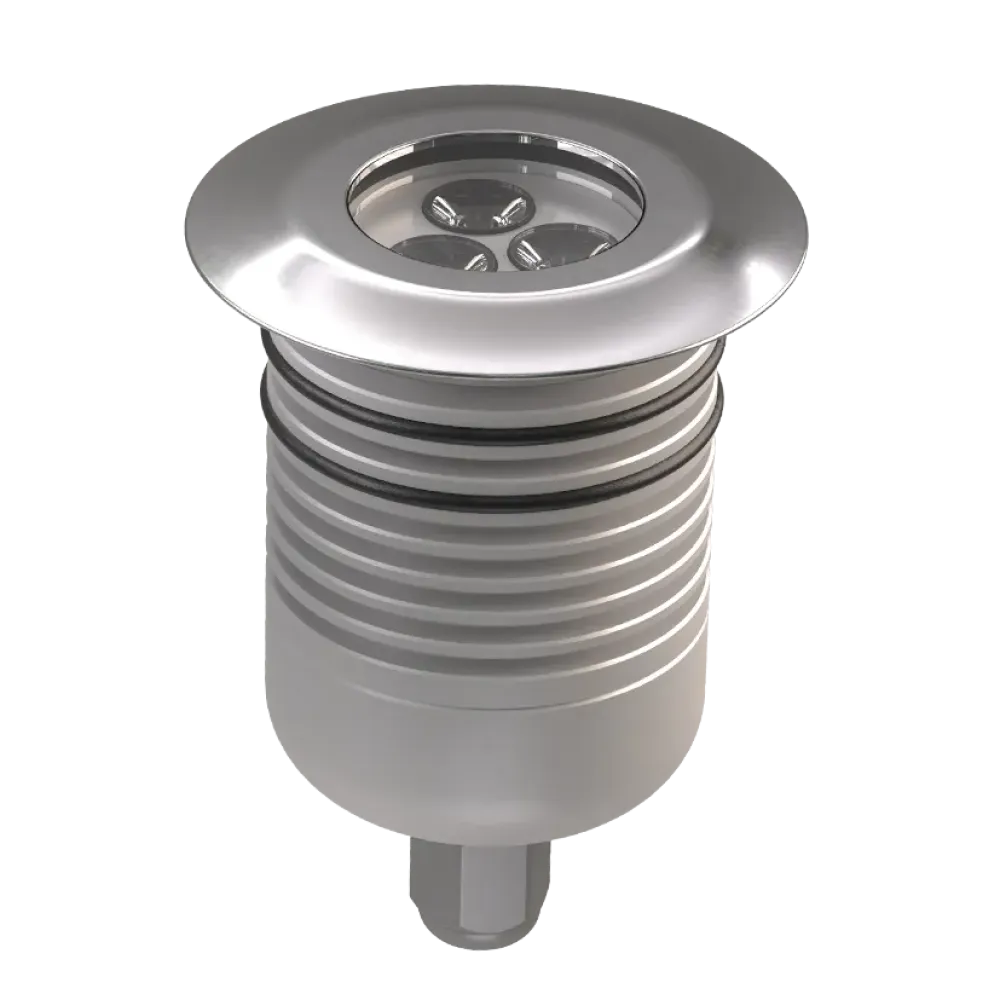

About the product
In-ground-recessed luminaires for up light illumination, featuring high power LEDs.Eight high-precision beam angles (five high-precision beam angles, Stepled 1).Installation-friendly.Remoto power supply unit (power supply unit on board Stepled 3 C).
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, 80°, narrow wall washer, 120° opal diffuser |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |

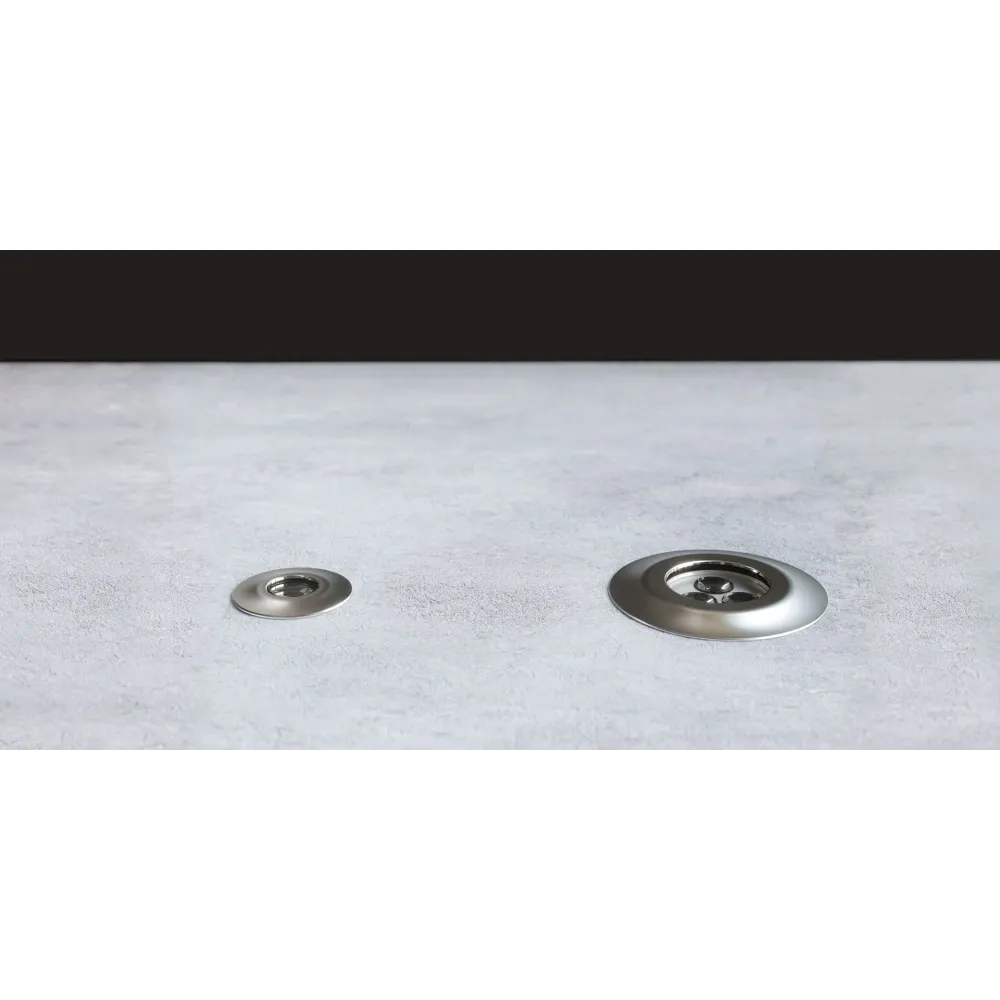

| Mounting | ground-recessed |
| Finishing | stainless steel |
| Construction | machine-crafted aluminium alloy, silicone gasket, tempered extra-clear glass, nickel-plated brass, stainless steel collar |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 480 lm |
| Light efficiency | 163.7 lm/W |
| Delivered flux | 365 lm |
| Delivered efficiency | 95.7lm/W |
| Input power | 4 W |
| Net weight | 0.45 kg |
