Product
Star
Finish
Silver anodized
Power/Control
DMX-512A and RDM compatible
Light color/CCT
2200 K
3000 K
4000 K
5700 K
RGB
Optics
120° opal diffuser
About the product

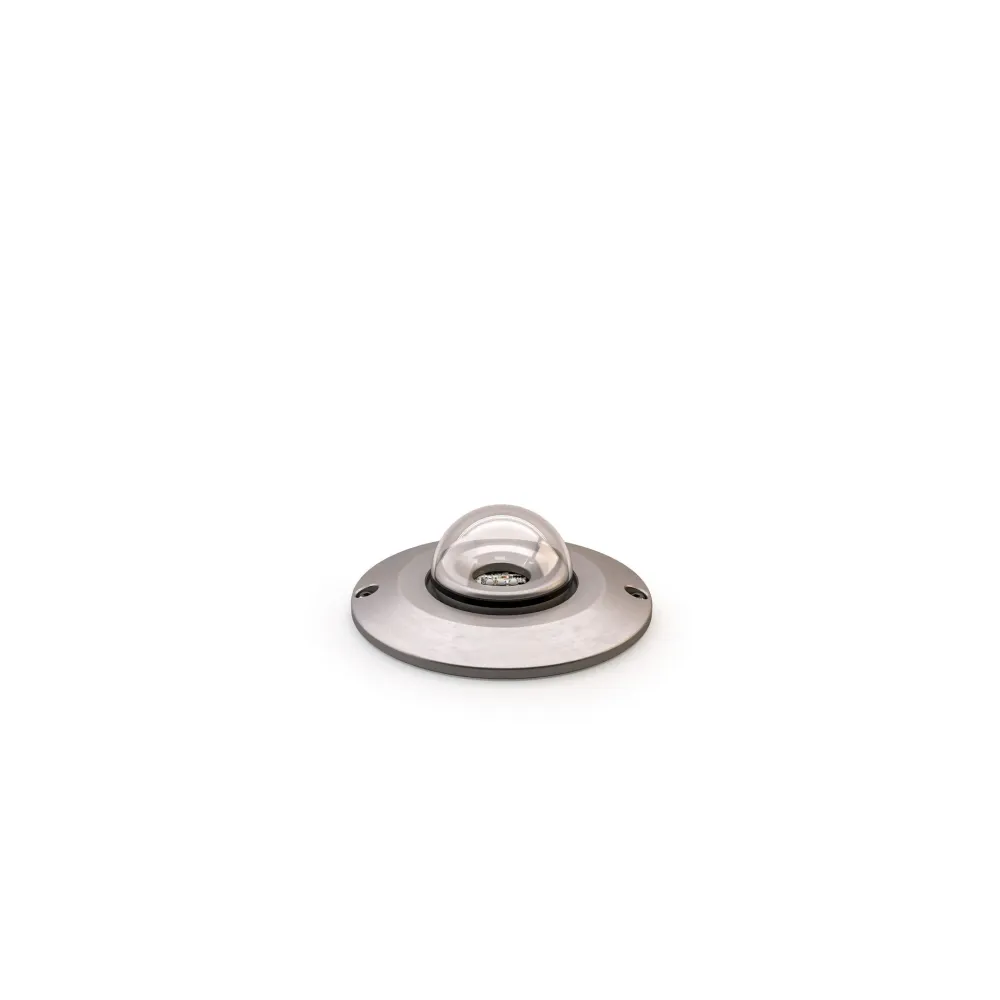

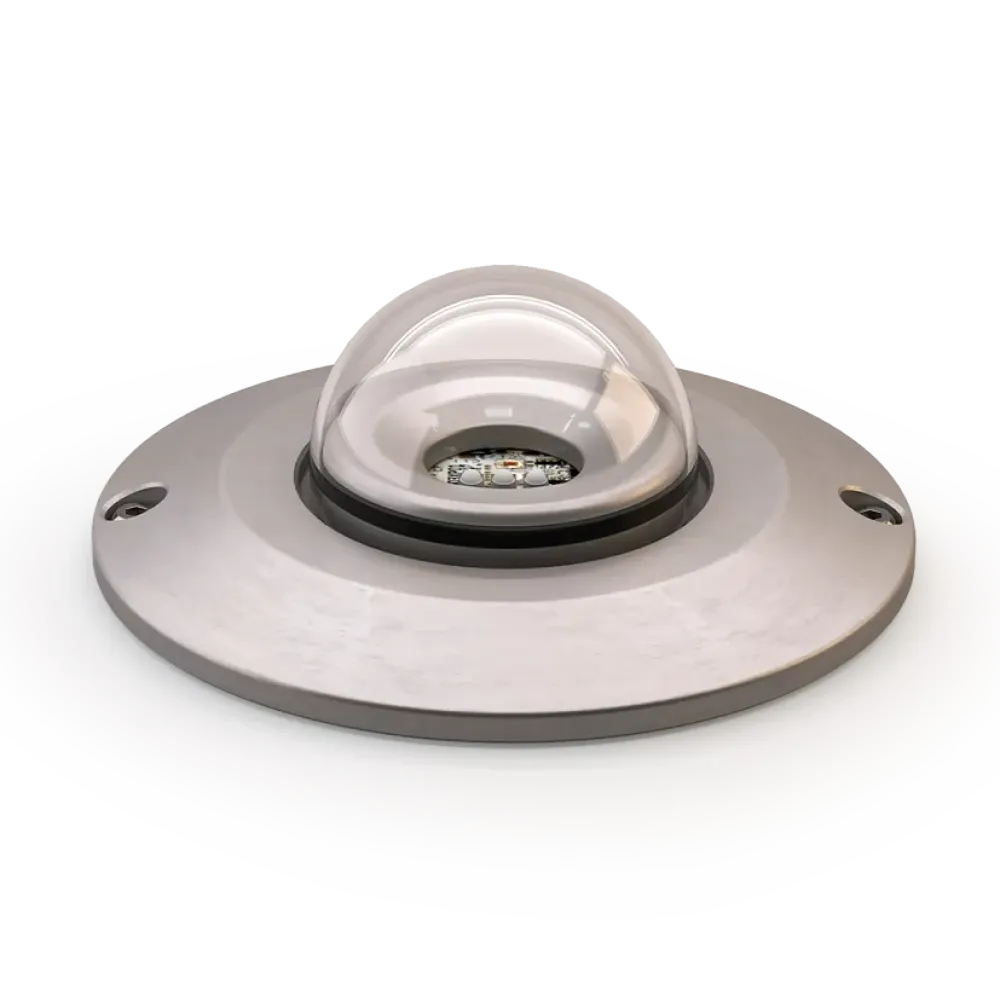

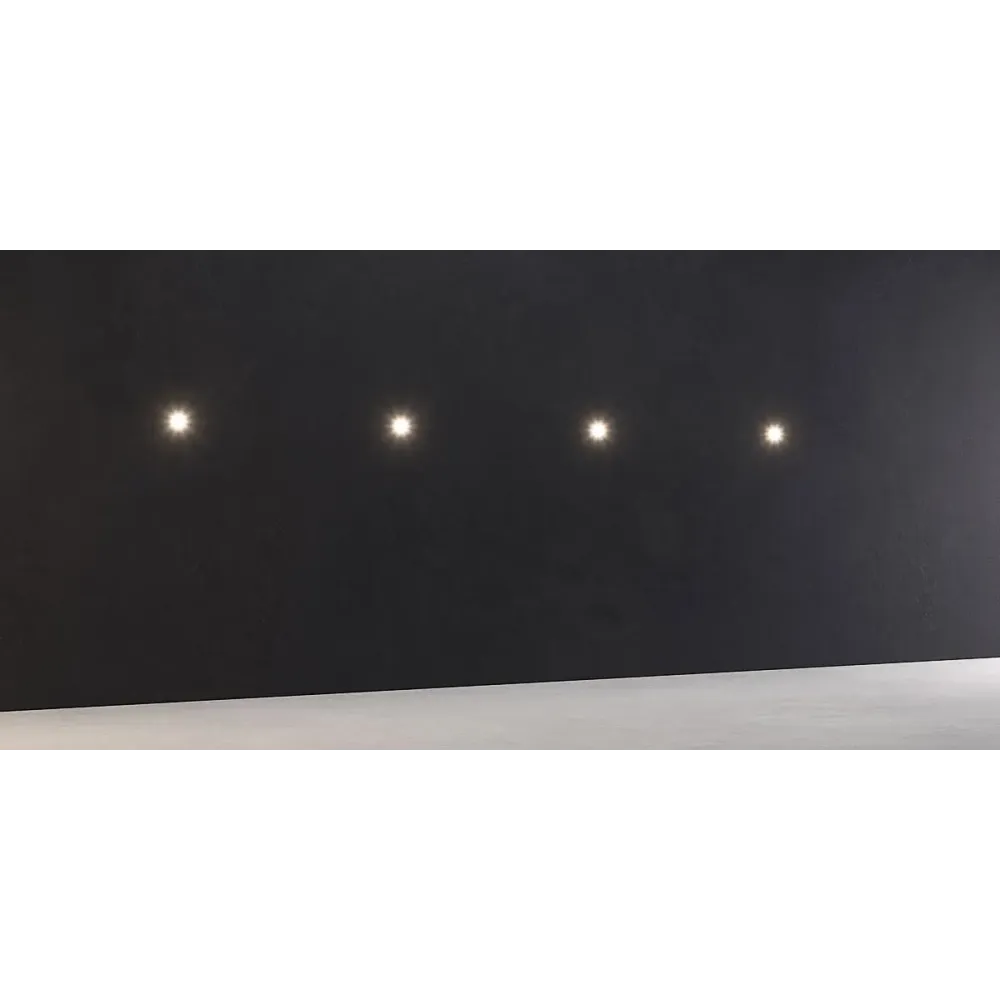

Wall-recessed lightpoint for accent and signal lighting, featuring high power LEDs.Flood and diffused light distribution.Installation-friendly.Remote power supply unit.
Product specifications
| IP rating | IP66/67 |
| Management interface | DMX-512A and RDM-compatible |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K, RGB |
| Beam angle | 120° opal diffuser |
| Operating temperature | -30°C to 55°C |
| Storage temperature | -50°C to 80°C |
| Mounting | wall-recessed |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, EPDM gasket, UV-protected polycarbonate cover, nickel-plated brass |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 48 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 490 lm |
| Light efficiency | 161.3 lm/W |
| Delivered flux | 375lm |
| Delivered efficiency | 111.4 lm/W |
| Input power | 3.5 W |
| Net weight | 0.6 kg |
