Product
Sole
Finish
Black anodized
Power/Control
On/Off
Light color/CCT
3000 K
4000 K
5000 K
Optics
26°
50°
62° x 27°
27° x 62°
About the product

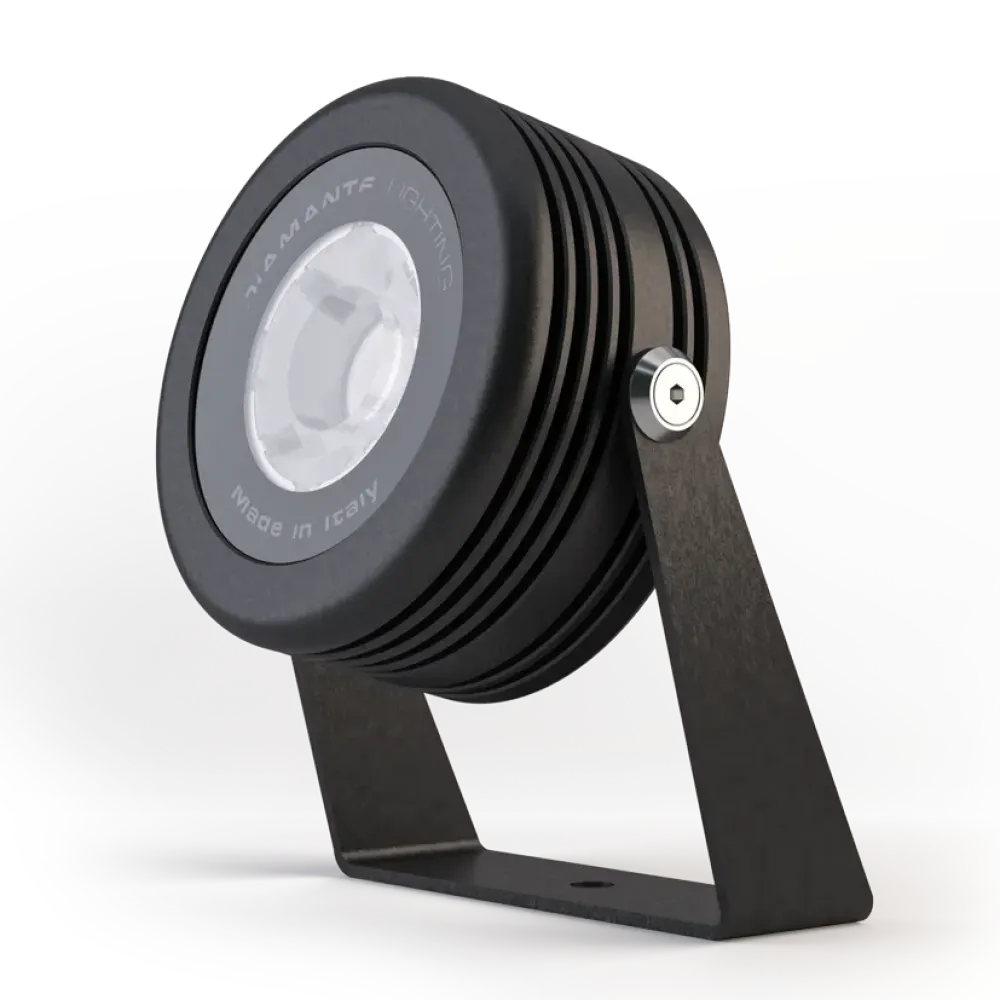

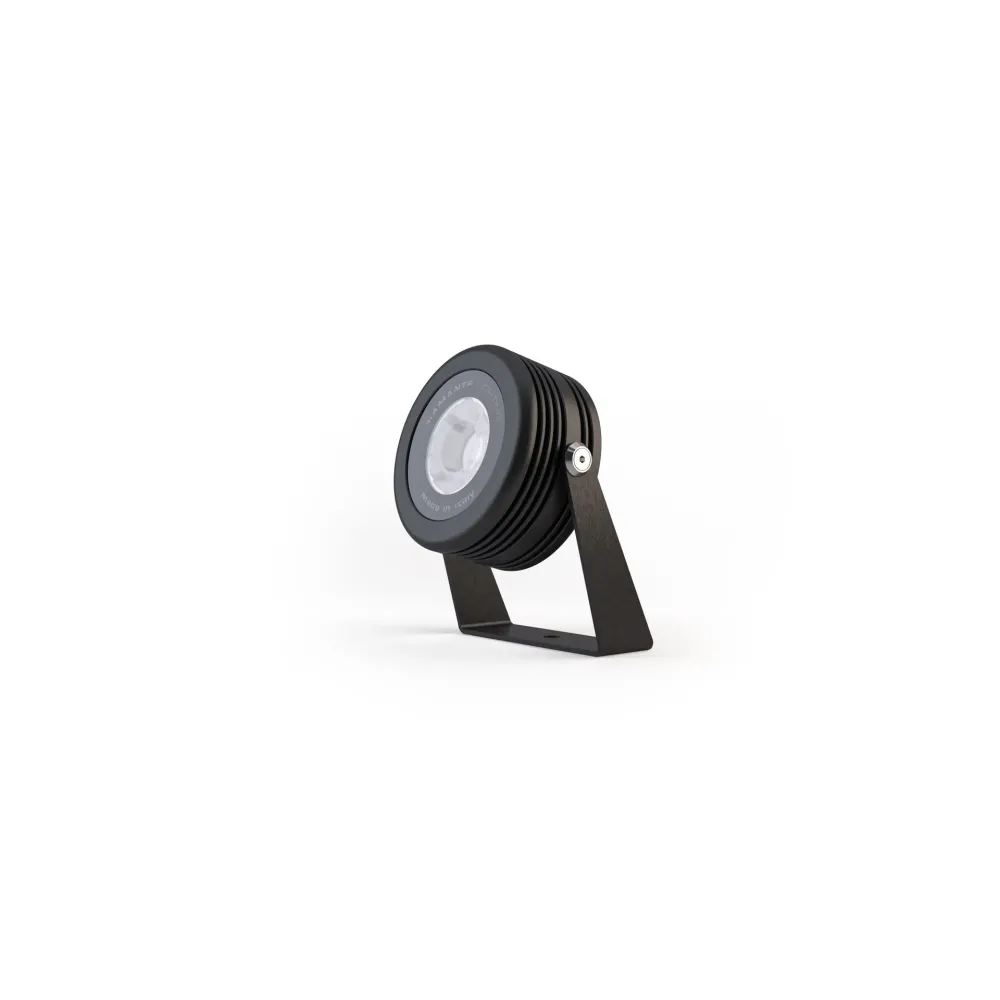

Surface-mounted, adjustable projector for wall washing and generalillumination, featuring one COB LED.Four high-precision beam angles.Easy positioning and aiming devices.Installation-friendly.Main voltage power supply. Surface-mounted, adjustable projector for wall washing and general illumination, featuring one COB LED.Main voltage power supply.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off |
| Colour temperature/CCT | 3000 K, 4000 K, 5000K |
| Beam angle | 26°, 50°, 62°x27°, 27°x62° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | black anodized |
| Construction | machine-crafted aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass gland connector |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 10 |
| Source type | High voltage chip on board |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 1480 lm |
| Light efficiency | 98.7 lm/W |
| Delivered flux | 1135 lm |
| Delivered efficiency | 75.6 lm/W |
| Input power | 15 W |
| Net weight | 0.9 kg |
