About the product

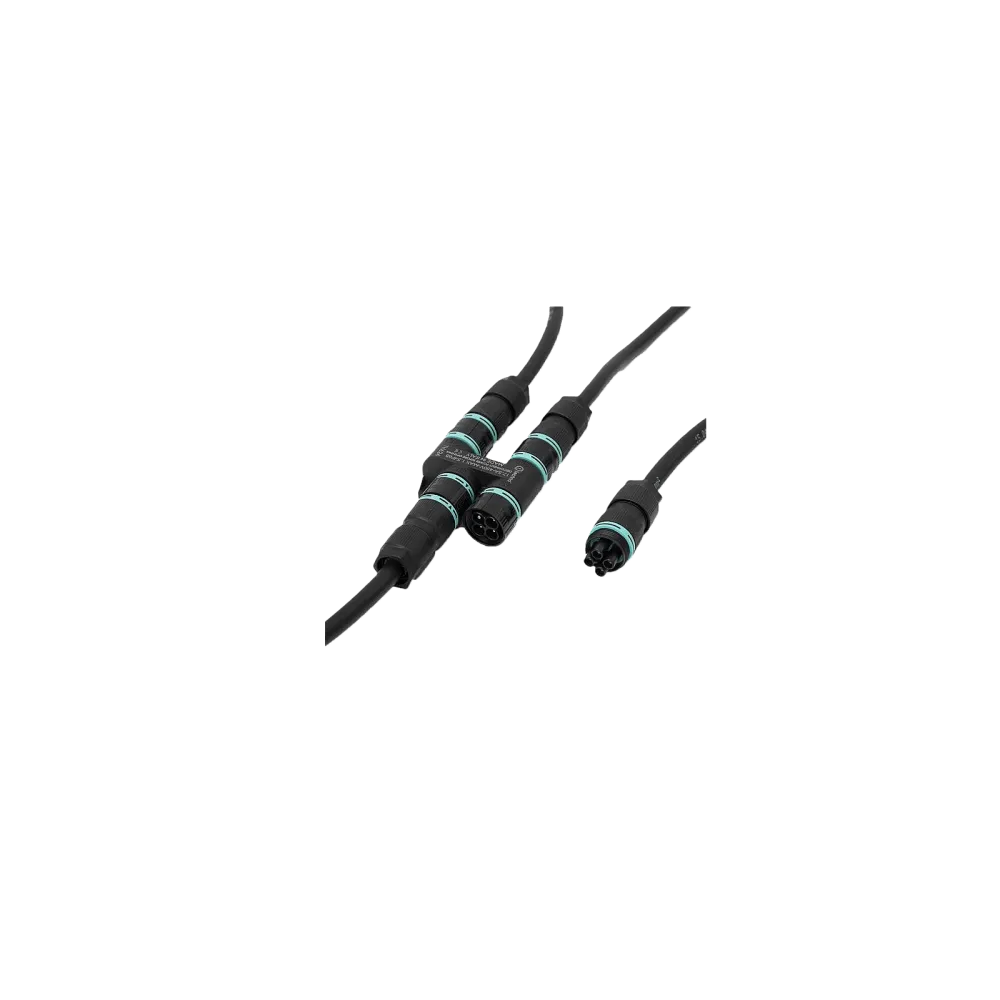

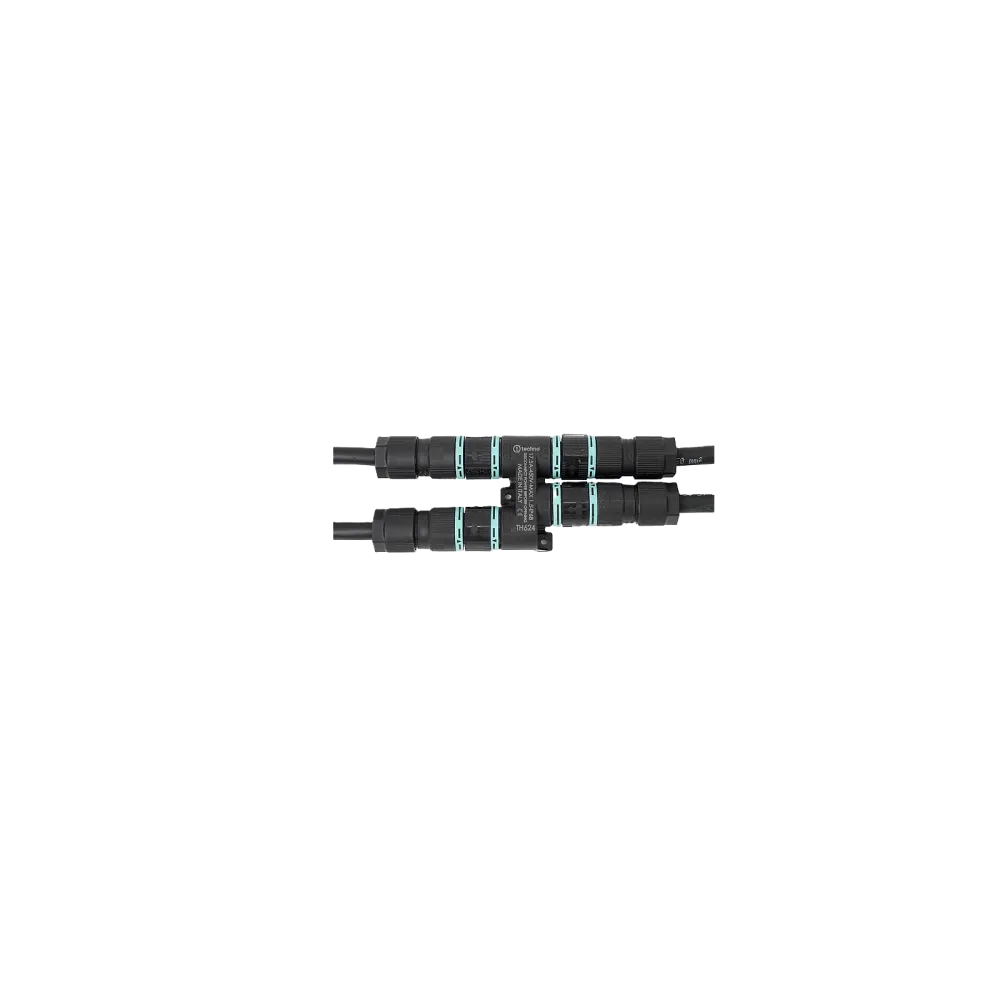

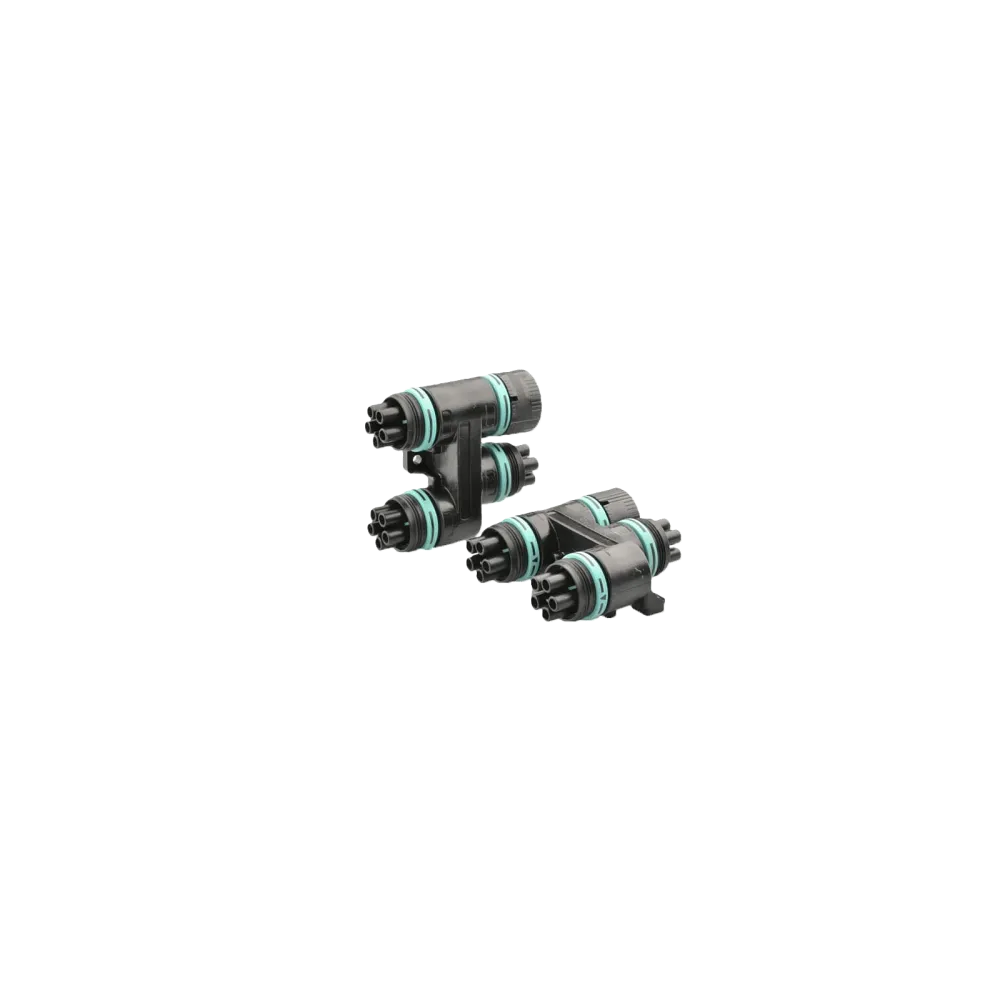

4-way "H"-Current Distributor/Junction Box TH624 from Techno, Italy
with 4 connections (1+3) – Quick and simple assembly increases the efficiency of the installation.

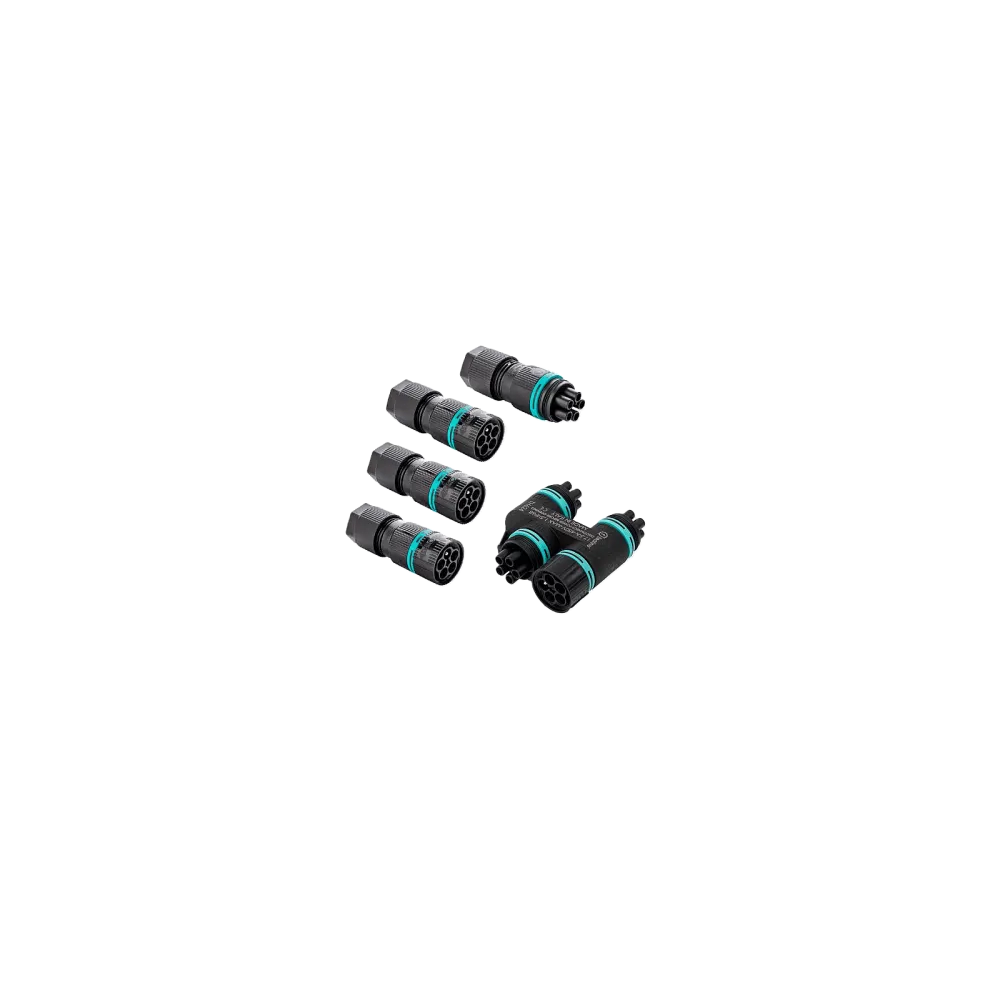

Set, consisting of:
1x H-Current-Distributor THH.624.A5A
3x Plug THB.387.A5A.L
1x Socket THB.387.B5A.L
(all components available separately)
Locking-System: Screw
Further, not published products and versions from Techno on request.
Technical data
No of input/outlets: 4 (1+3)
Dimensions Exterior: 65.0 x 61.0 x 25.0 mm (only H-Distributor)
Nominal Voltage: 500V AC
Nominal Current: 17.5 A AC/DC
Cable Cross sections: 0.5 – 1.5 mm2
For cable diameters: 6.0 -13.5 mm
Temperature range: -40°…+125°C
IP Rate: IP66/IP68
Housing material: PA66 GF UL94 V0 / PA66 GF UL94 V2 (Cable Glands)
O-Rings: TPE
Material characteristics: Halogen free
Errors and Technical changes reserved
Product specifications
| Product | Cable connector female, Cable connector male |
| Pole | 5 |
| Nominal current | 17.5 A |
| Nominal voltage (V) | 500 V |
| IP protection | IP66, IP68 |
| Certificates | CE |
| Manufacturer | Techno |
| Series | TEEBOX |
