About the product

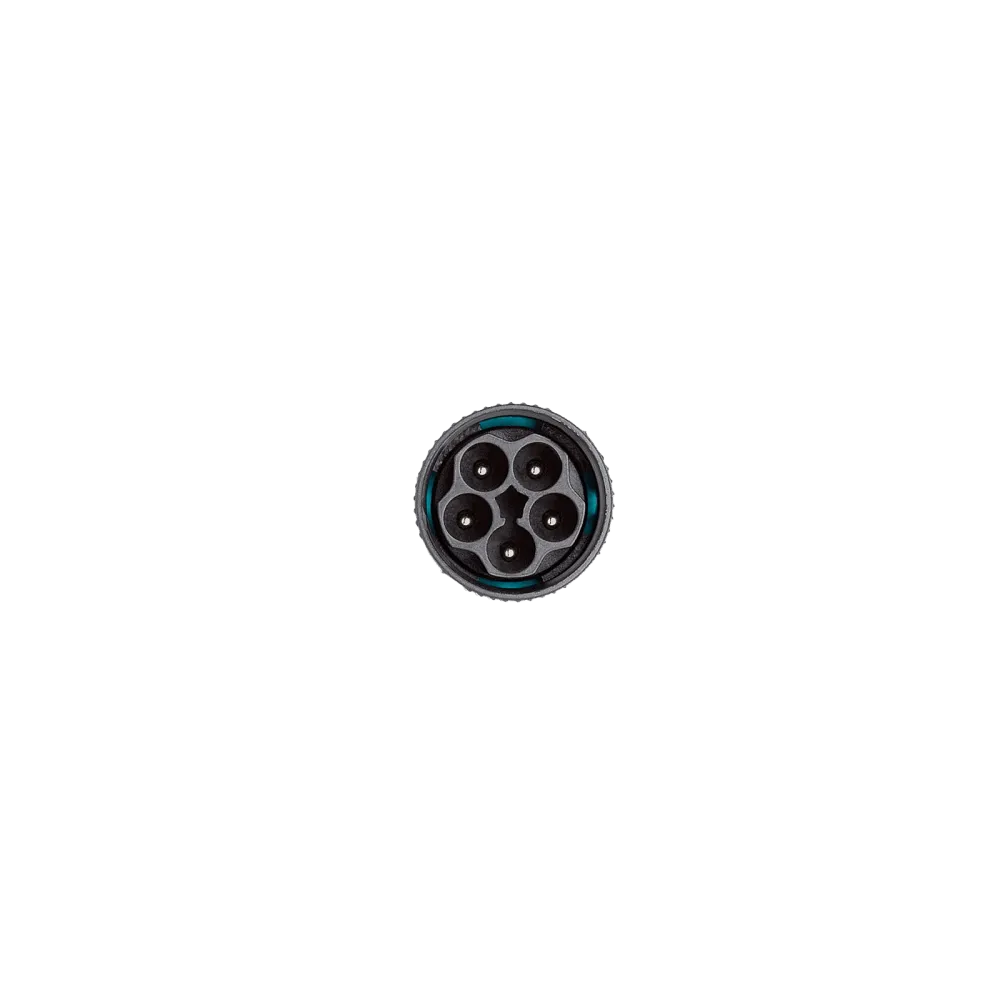

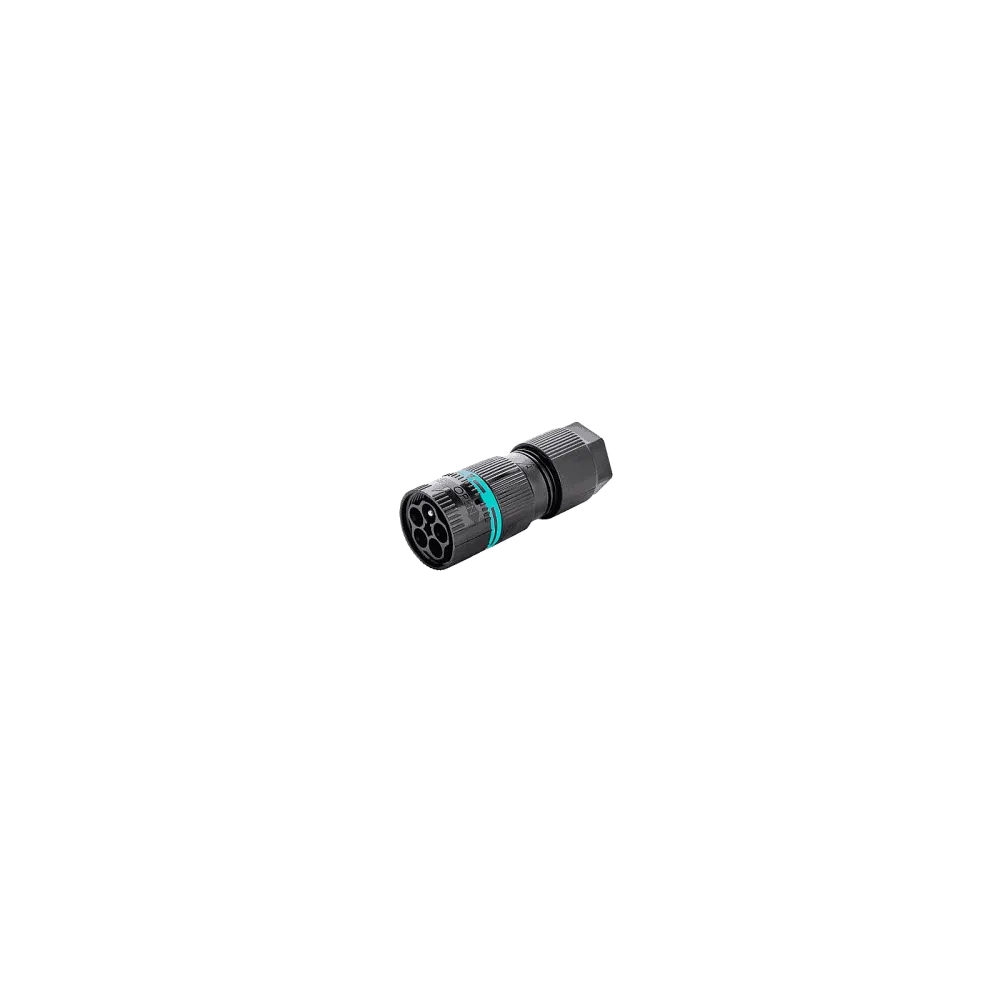

5-Pole Mini Circular Connector TH387 long with Screw-Lock from Techno, Italy
Version: Plug, Wire Protection
Wire Connection: Screw
Lock-System: Screw
Version: Long Version
Counterpart (Socket): THB.387.B5A
Further, not published products and versions from Techno on request.
Technical data
No of Poles: 5
IP Rate: IP66/IP68
Dimension: Ø 23.0 x 66.0 mm
Cable diameter: 7.0 – 13.5 mm
Cable cross section: 0.25 – 1.5 mm2
Nominal Voltage: 500V AC
Nominal Current: 17.5 A
Temperature range: -40°C…+125°C
Manufacturer: Techno
Product specifications
| Product | Cable connector male |
| Manufacturer | Techno |
| Certificates | IEC |
| IP protection | IP66, IP68 |
| Connection | Screw terminal |
| Wire section | 0.25-1.5 mm² |
| Cable diameter | 7-12 mm |
| Nominal voltage (V) | 500 V |
| Nominal current | 17.5 A |
| Pole | 5 |
| Temperature range | -40°C to 125°C |
Data sheets
