Item ID: 43721

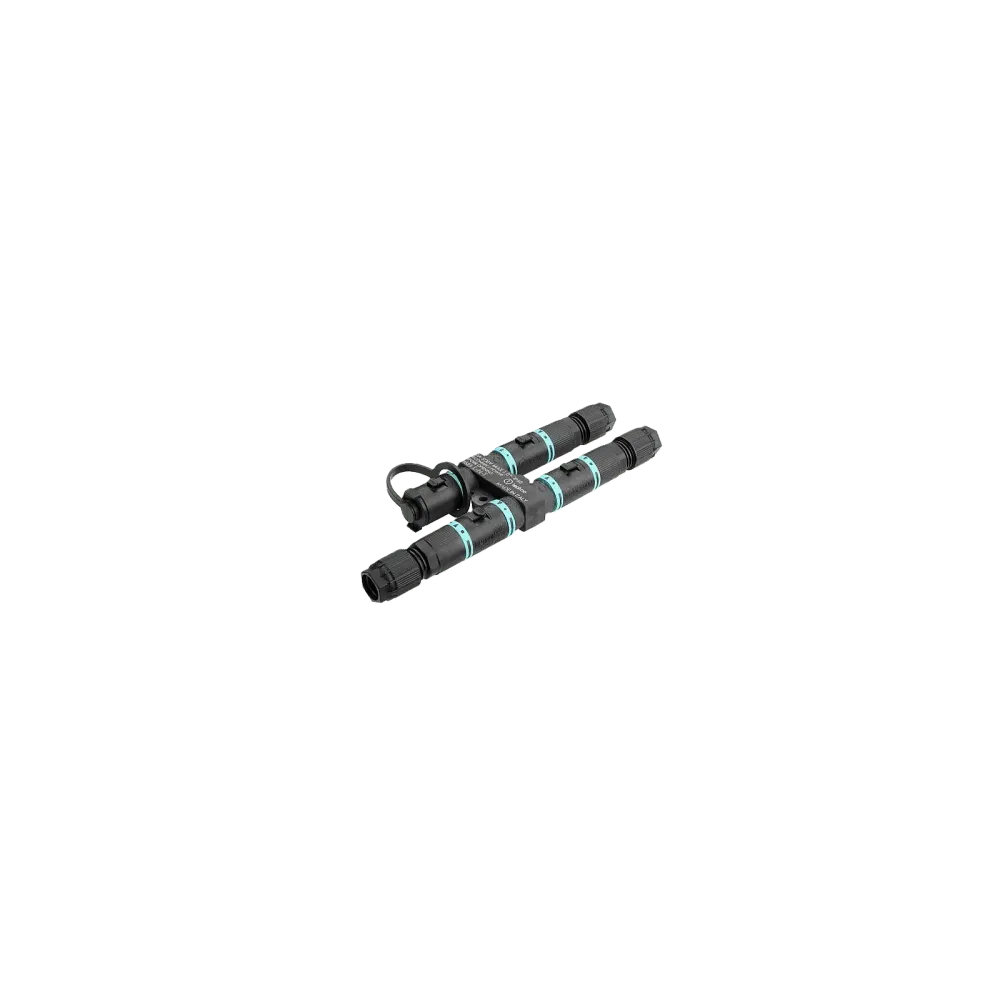

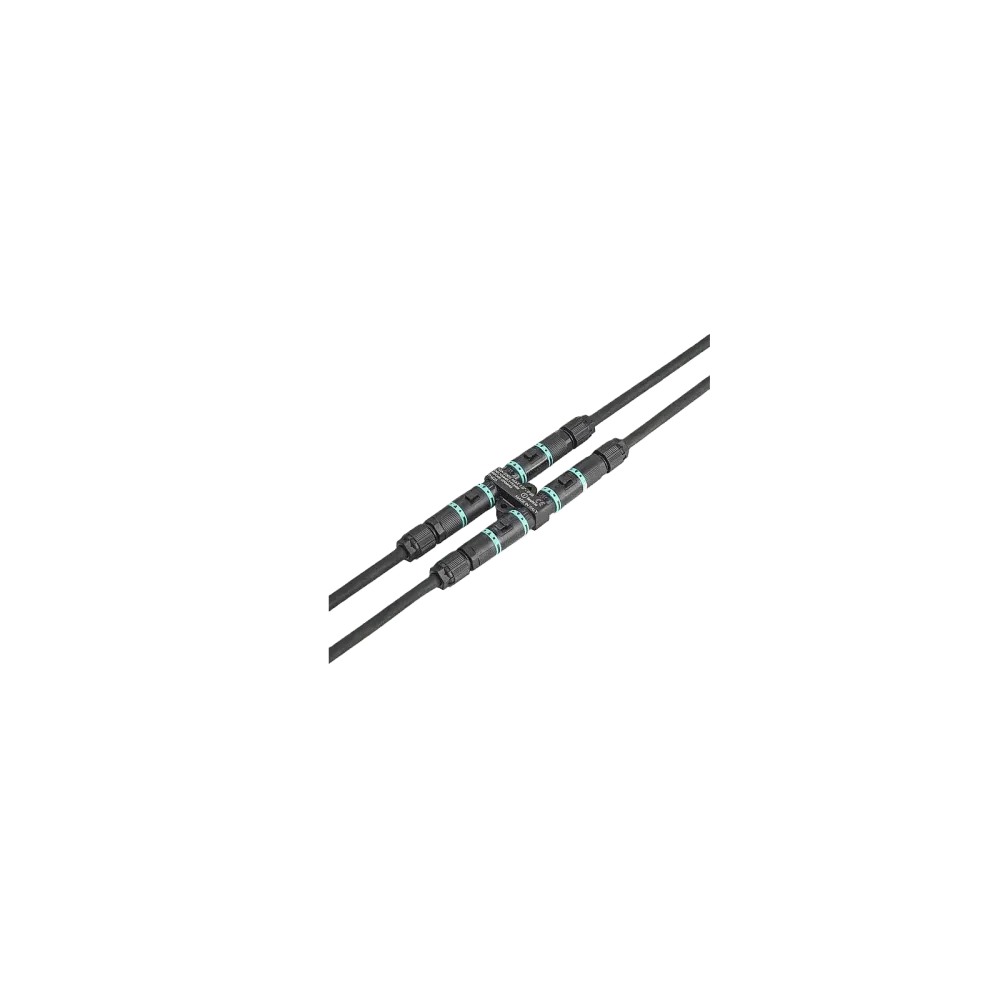

Set: H-cable distributor TH625, 4-gang, 2P, screw connection, D4.0-8.0, IP66/IP68
About the product
4-way cable distributor set TH625 from Techno

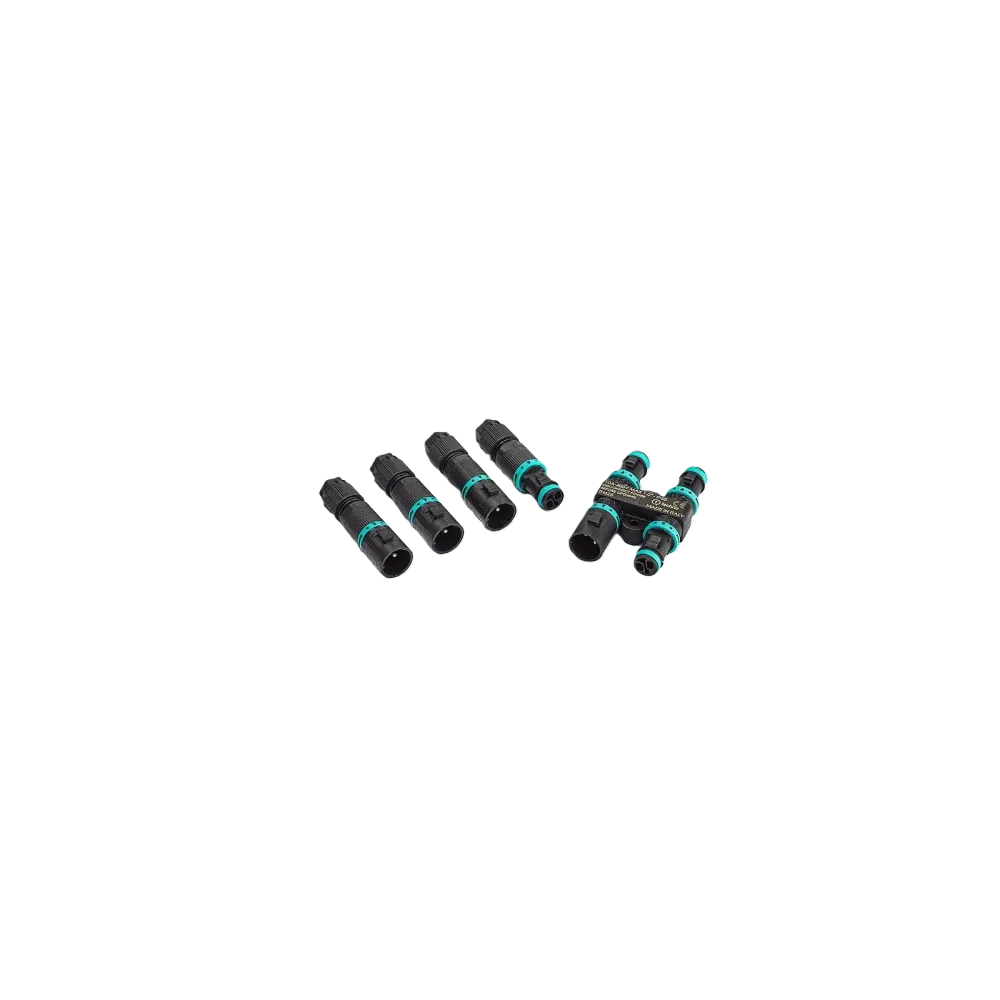

. Set, consisting of:

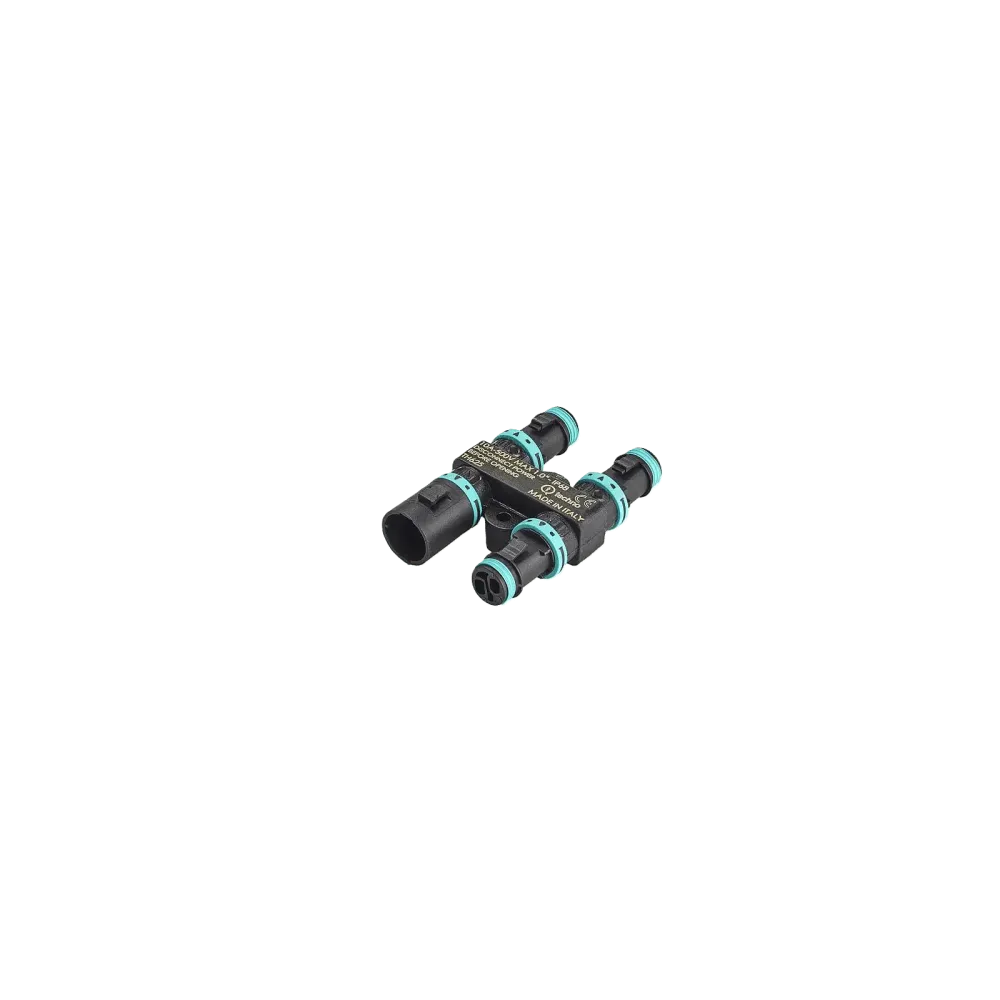

1x H power distributor (THH.625.A2A)
. 3x plug (THB.381.A2A)
. 1x socket (THB.381.B2A)
Locking: Push-Pull
Other Techno products and designs on request.
Technical data
Number of outlets: 4 (3+1)
External dimensions: 58.8 x 39.25 x 16.39 mm (H-distributor only), 135 x 39.25 x 16.39 mm (with mounted plugs)
Nominal voltage: 500V AC (3V-60V DC)
Nominal current: 10A AC/DC
Connection cross-section: 0.25 - 1.0mm2
Cable diameter: 4.0 -8.0 mm (depending on the corresponding seal)
Temperature range: -40°..+100°C
IP protection: IP66/IP68
Housing material: TE, PA66 GF UL94 V0 / PA66 GF UL94 V2 (cable gland)
O-rings: TPE
Material properties: Halogen-free, silicone-free
Subject to errors and technical changes
Product specifications
| Manufacturer | Techno |
| Certificates | IEC |
| Nominal current | 10 mA |
| Nominal voltage (V) | 500 V |
| IP protection | IP66 - IP68 |
| Number of poles | 2 |
| Cable diameter | 5.8-6.9 mm |
