Product

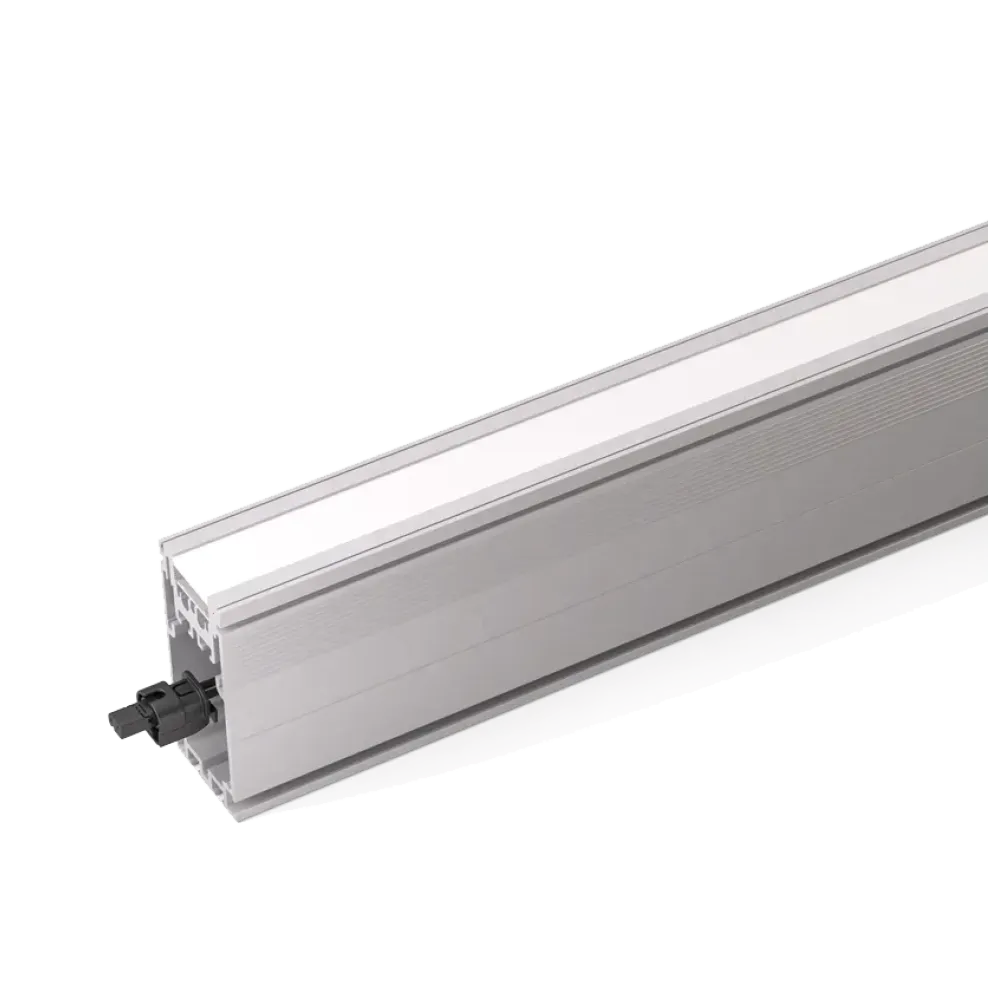

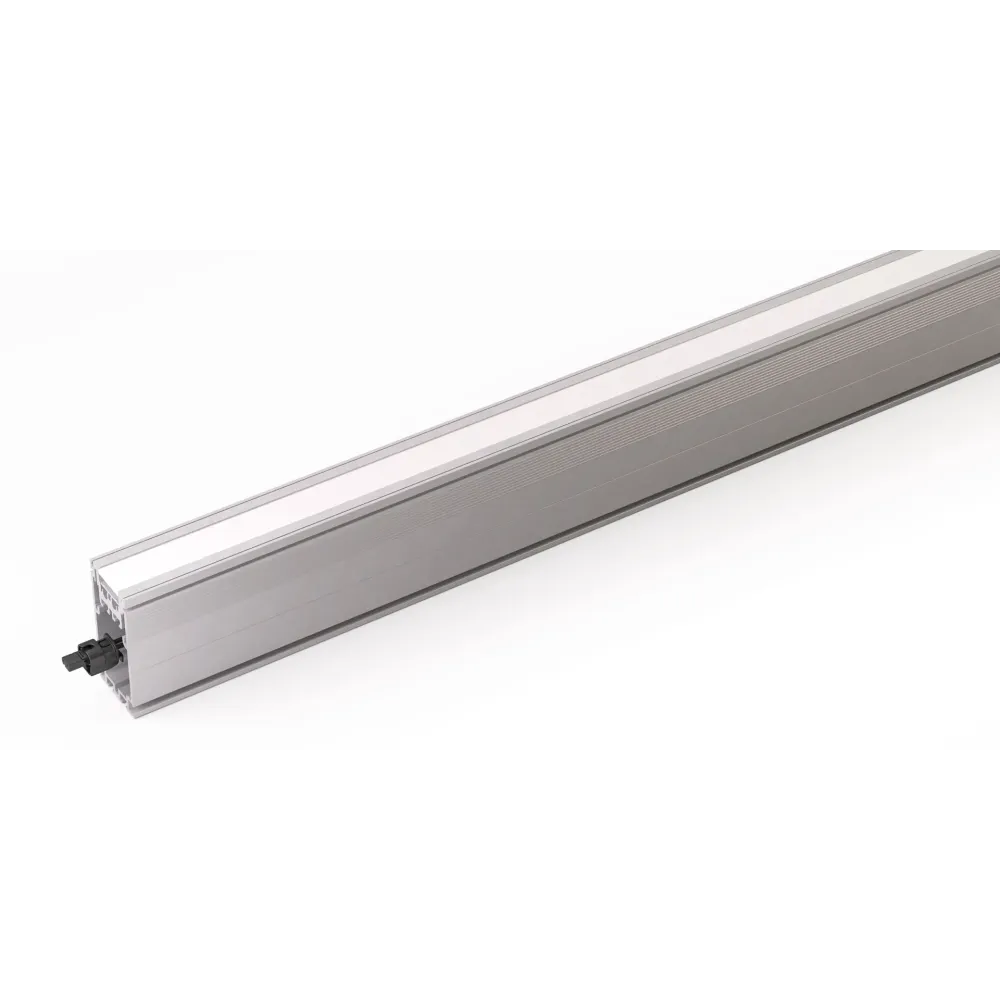

Segno 1500
Finish
Silver anodized
Power/Control
On/Off optional dimming via accessories
Light color/CCT
3000 K
4000 K
5000 K
Optics
120°
About the product

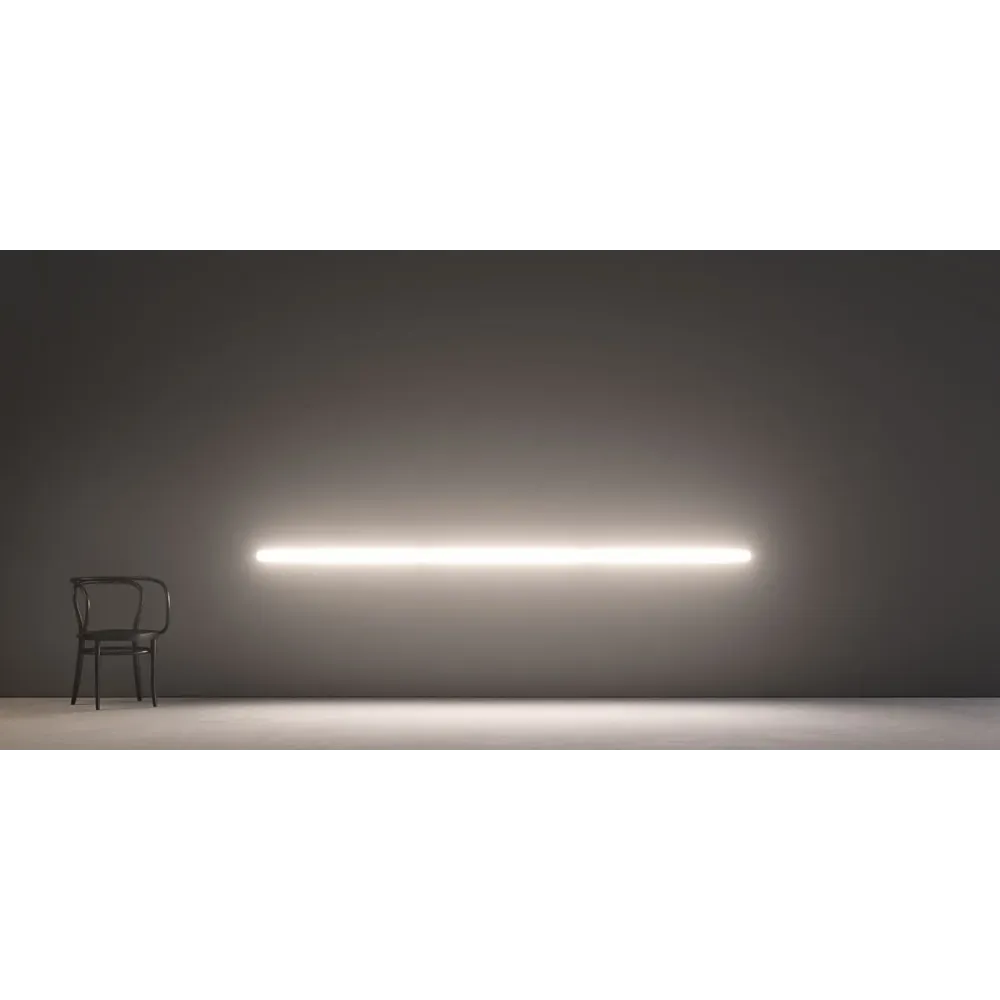

In-ground direct view, accent, way finding and contour light.Specification-grade modular system featuring mid power LEDs.Modules lengths of 500, 1000 and 1500 mm.Diffused light.Wide choice of outputs, colour temperatures, colour-mixings.Remote power supply unit.
Product specifications
| IP rating | IP66/67 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 3000 K, 4000 K, 5000K |
| Beam angle | 120° opal diffuser |
| Operating temperature | -30°C to 55°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | Silver anodized |
| Construction | extruded aluminium alloy, scratch proof hard Polyurethane resin |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 48 V |
| IK rating | 10 |
| Source type | Mid power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 2905 lm |
| Light efficiency | 121.2 lm/W |
| Delivered flux | 1795 lm |
| Delivered efficiency | 74.9 lm/W |
| Input power | 24 W |
| Net weight | 1.95 kg |
