About the product

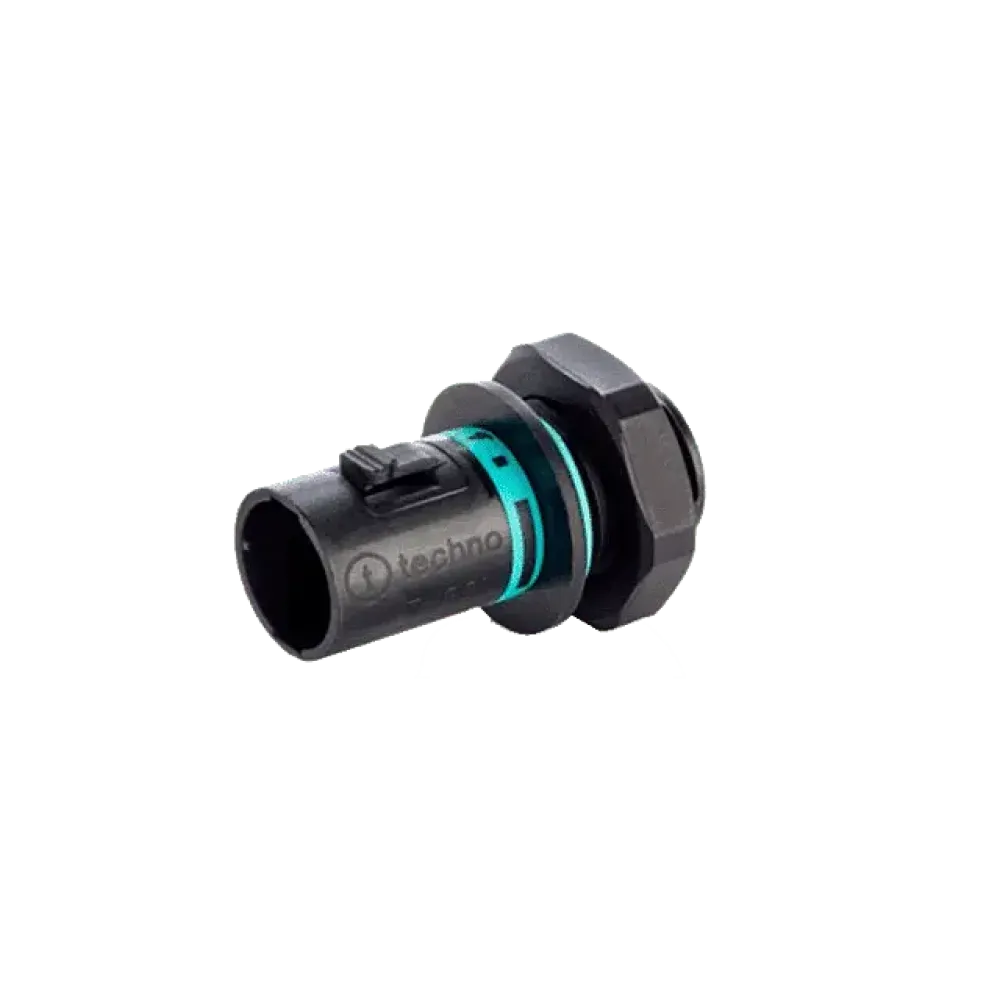

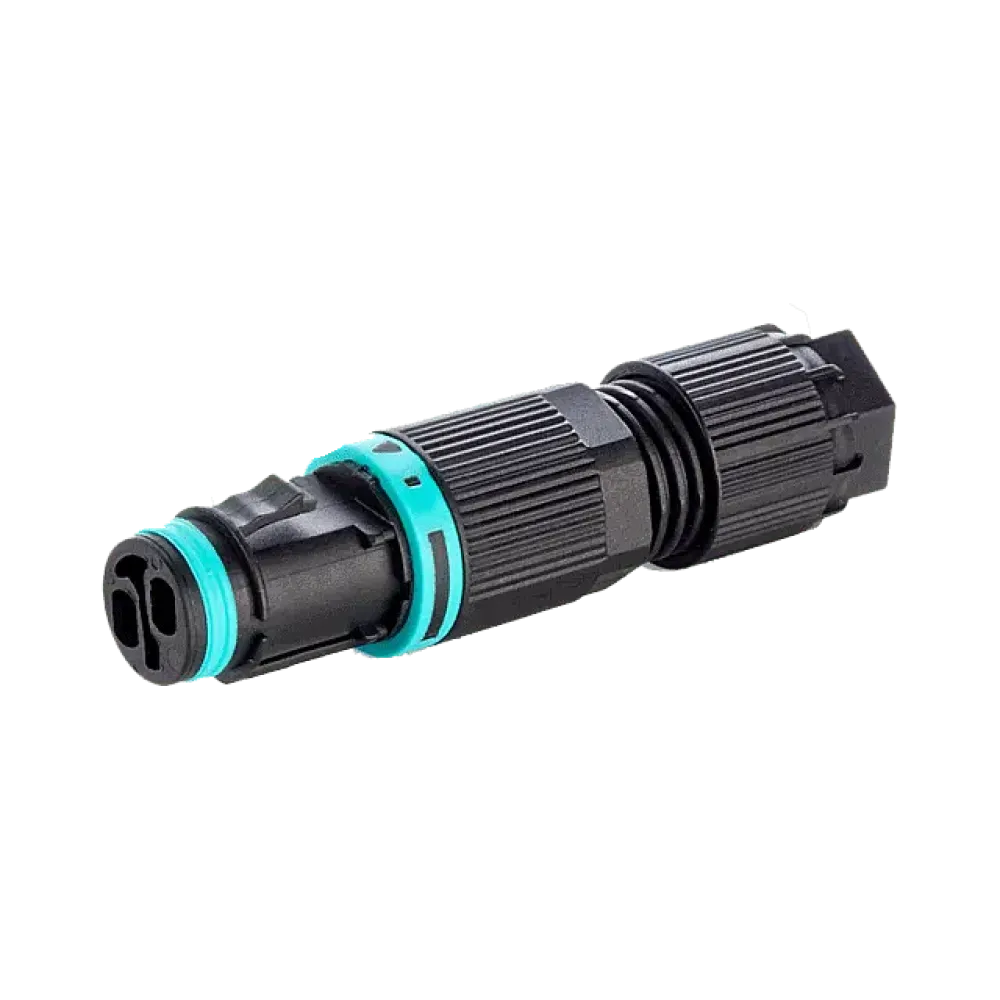

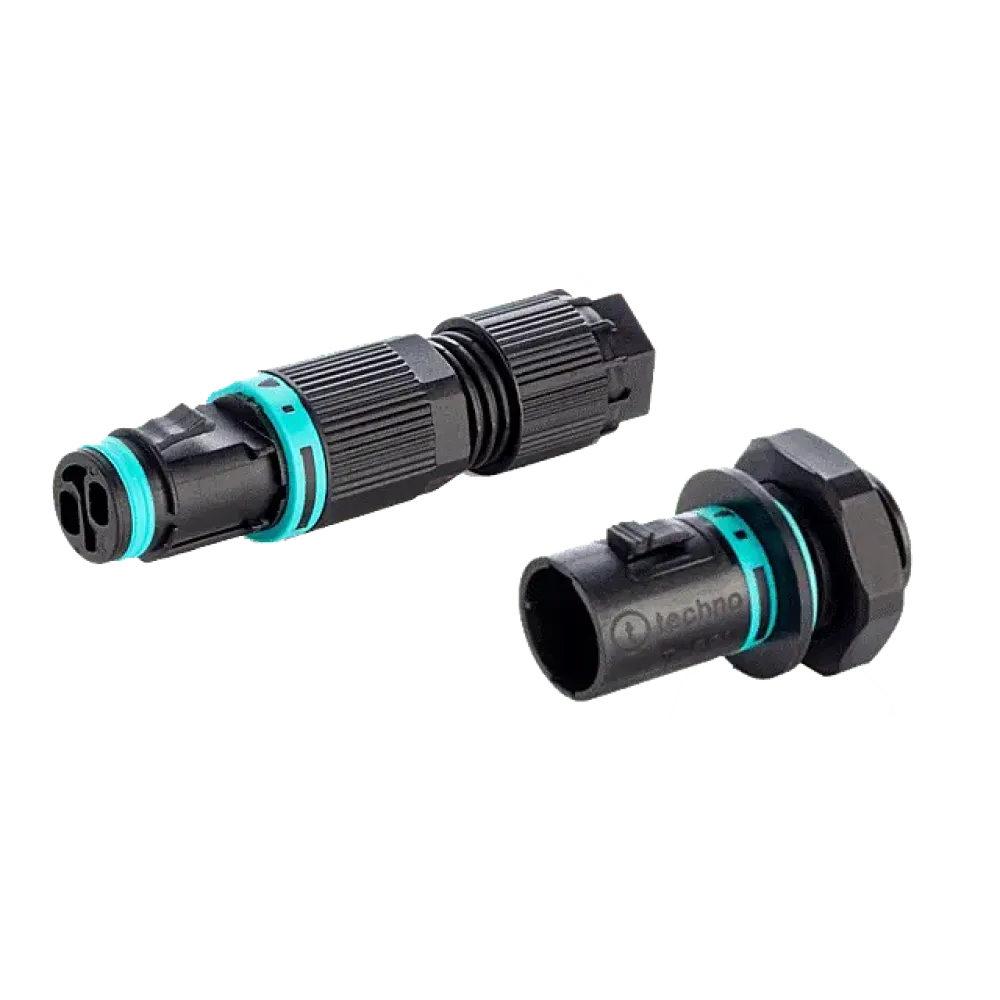

Round plug connector - screw connection - cable to device
Technical data
- 2 pole
- IP68 / 69K, 3bar (30m / 1h)
- Cable diameter: 5.8 - 6.9 mm

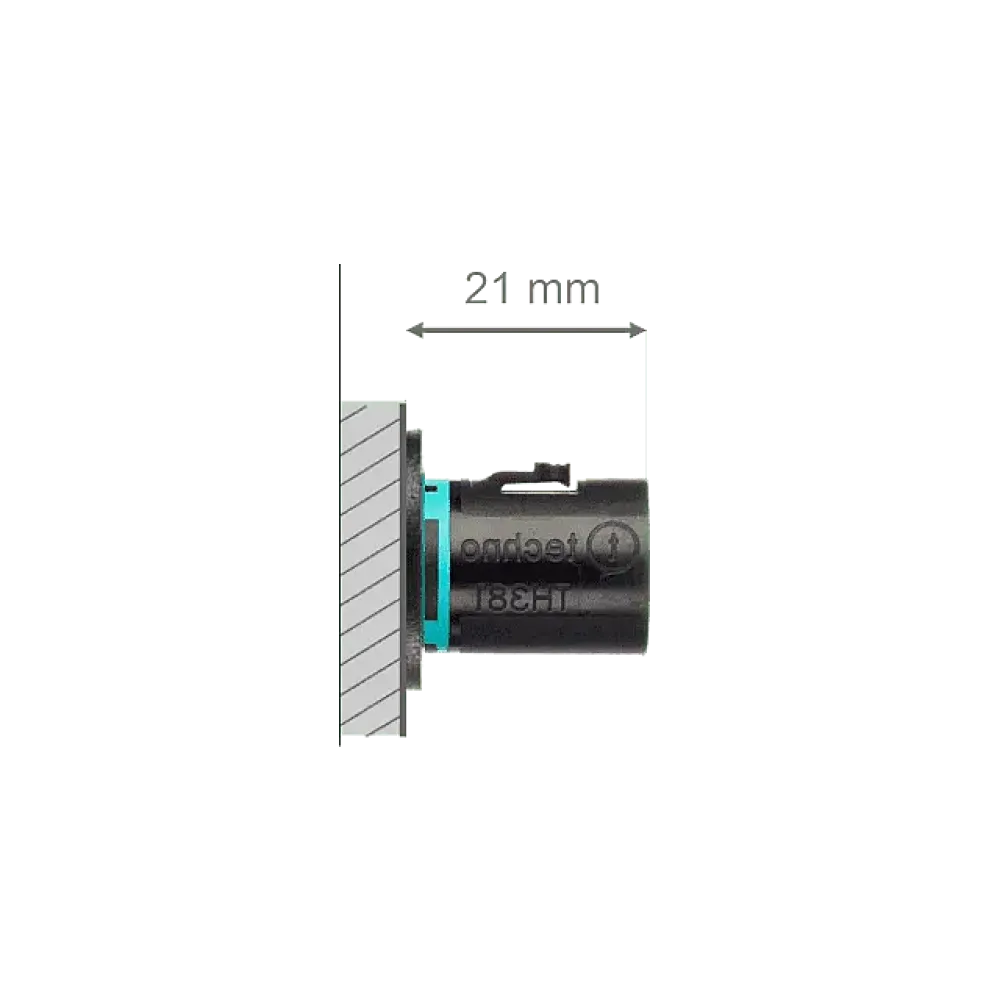

- Dimensions plugged in: 14 x 56mm
- 0.25 - 1.5mm2, H05RN-F: 2 x 1.00mm2
- 10 A / 400 V AC/DC, 250 V AC Protection class II / Approval: IEC (IMQ)
- -40°C - +125°C
- Manufacturer: Techno
Product specifications
| Connection | Screw terminal |
| Product | Cable to device connector |
| Connection cross-section (mm²) | 0.25 - 1.5 mm² |
| IP protection | IP68 |
| Number of poles | 2 |
| Temperature range | -40°C to 125°C |
| Nominal voltage (V) | 250-400 V |
| Nominal current | 10 mA |
| Certificates | IEC |
| Manufacturer | Techno |
| Cable diameter | 5.8-6.9 mm |
