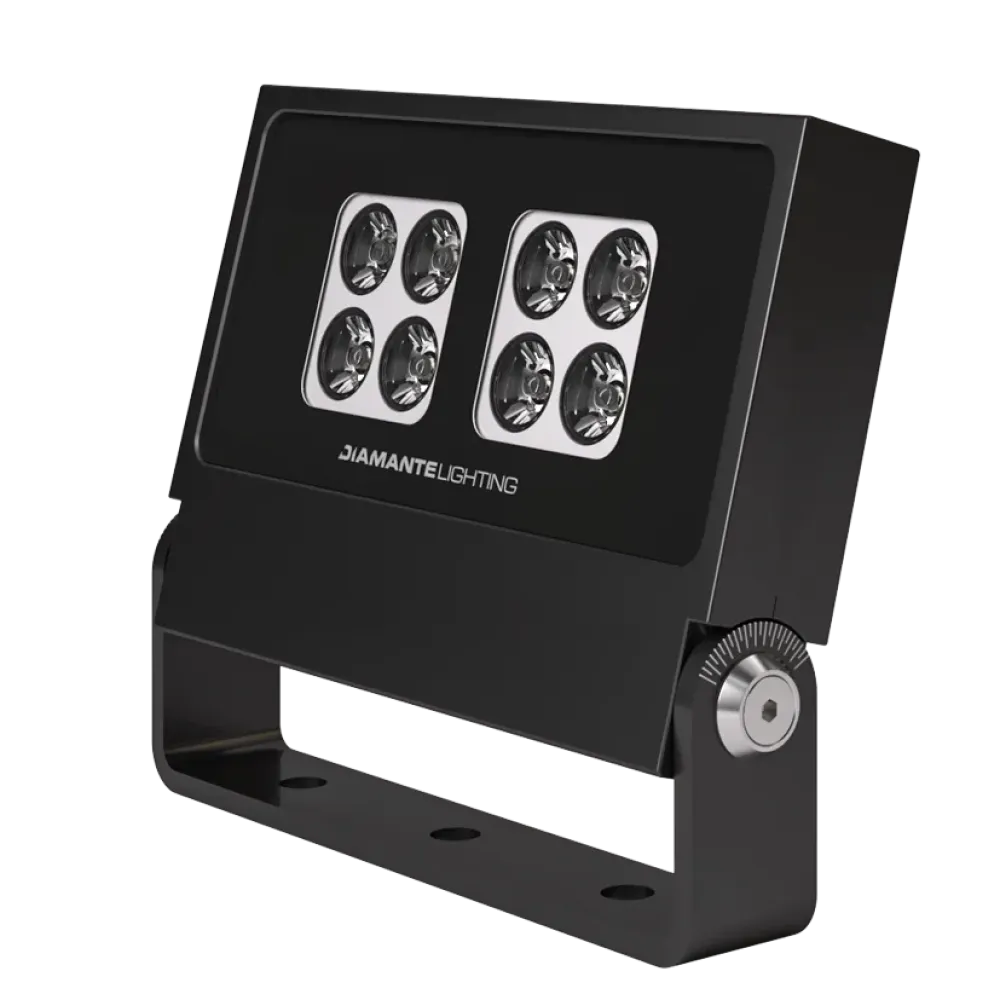

Product
Quadro 8
Finish
Black anodized
Power/Control
On/Off optional dimming via accessories
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
10°
30°
50°
12° x 35°
35° x 12°
80°
About the product

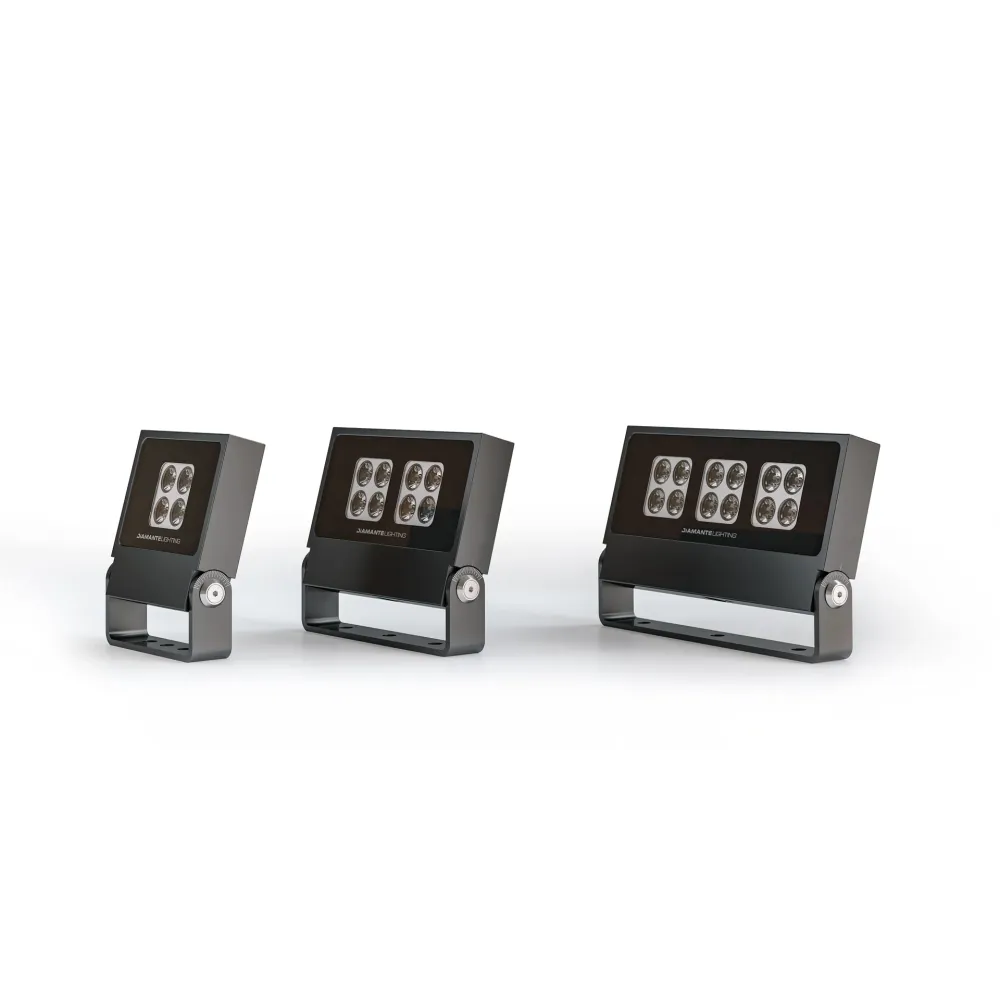

Floodlights, adjustable in aluminum alloy, ideal for accent lighting, wall washing or for functional lighting, with high-power LEDs. Power 6,5W (Quadro 4), 13W (Quadro 8), 19W (Quadro 12).Six high-precision optical variables, including two ellipticals. Four color temperatures from 2200K to 6000K. Elegant and refined design, ideal for mounting on the wall or on the ground in architectural environments of all kinds. Separate power supply, on-board regulator
Product specifications
| IP rating | IP66/67 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, 80° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | black anodized |
| Construction | machine-crafted aluminium alloy, silicone gasket, tempered extra-clear glass |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 48 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 1775 lm |
| Light efficiency | 155.9 lm/W |
| Delivered flux | 1350 lm |
| Delivered efficiency | 108.8 lm/W |
| Input power | 13 W |
| Net weight | 0.9 kg |
