Beam
Flood 32°
Spot 14°
Wide Flood 44°
Light color/CCT
3000 K
4000 K
About the product

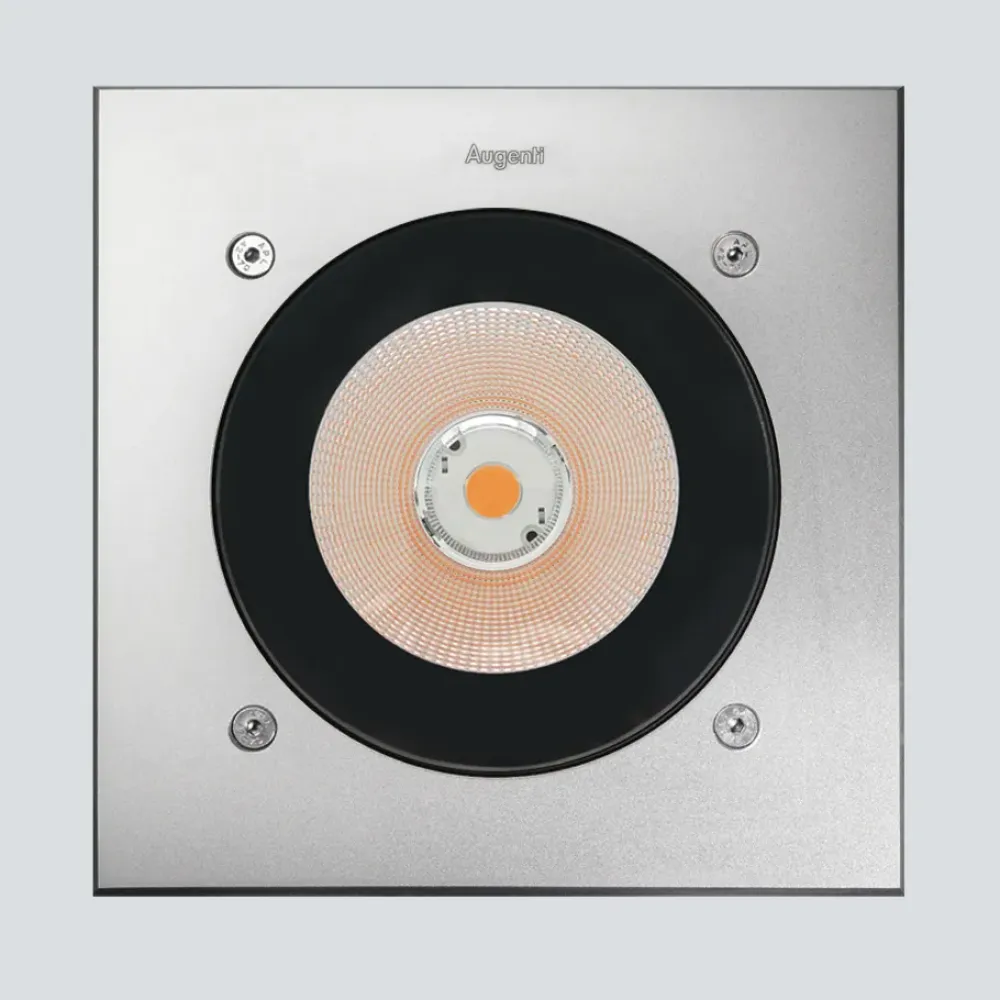

In-ground luminaire suitable for both light foot and vehicle traffic, with static load resistance of 2000 Kg. Supplied with secondary optics for different types of light distribution, suitable for the oblique illumination of façades and architectural elements, or etched glass for diffused distribution combined with glare control, making it suitable for pedestrian pathways. Available with LED version in fixed or dimmer output.
Product specifications
| Assembly | inground recessed |
| Protection | IP67/IK10 |
| Body | die-cast aluminium |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Frame | stainless steel AISI316L |
| Screen | tempered extra-clear glass 15mm with silk-screen printing |
| Seals | molded silicone gasket UV-resist |
| Screws | Stainless steel A2 |

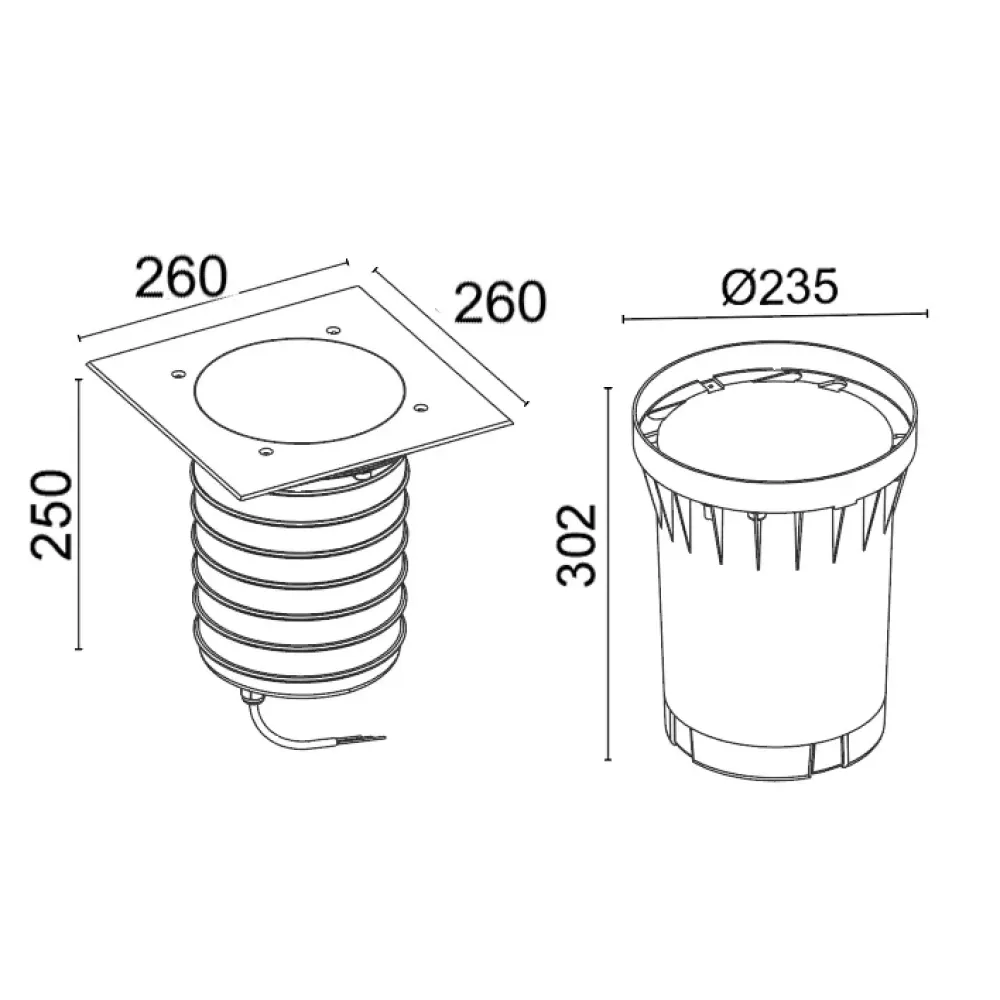

| Size | H 302 x L 260 x W 260 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 900 mA |
| Control | DALI-2 integrated |
| Specific wiring | included |
| Wiring | included |
| Power module LED | 32 W |
| Source | LED COB |
| Source flux | 4850 lm |
| Fixture source | 3187 lm |
| Apparent efficiency | 66.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Absorbed power | 34 W |
| Colour | Steel |
