Item ID: 41425.13116

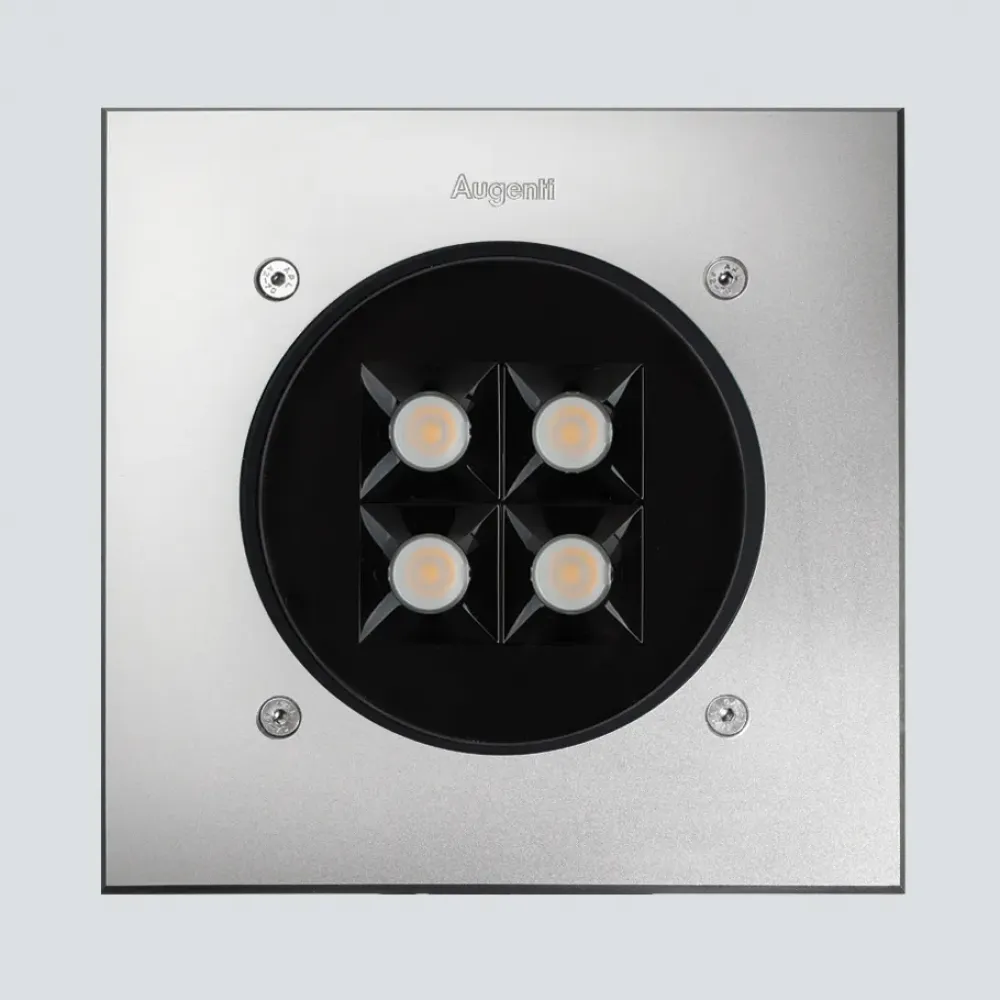

Platho 200C 4251C/WR50NB.99-Ceiling Recessed - Square ceiling recessed L. 200 LED ARRAY - Built-in driver
Color
Steel
About the product

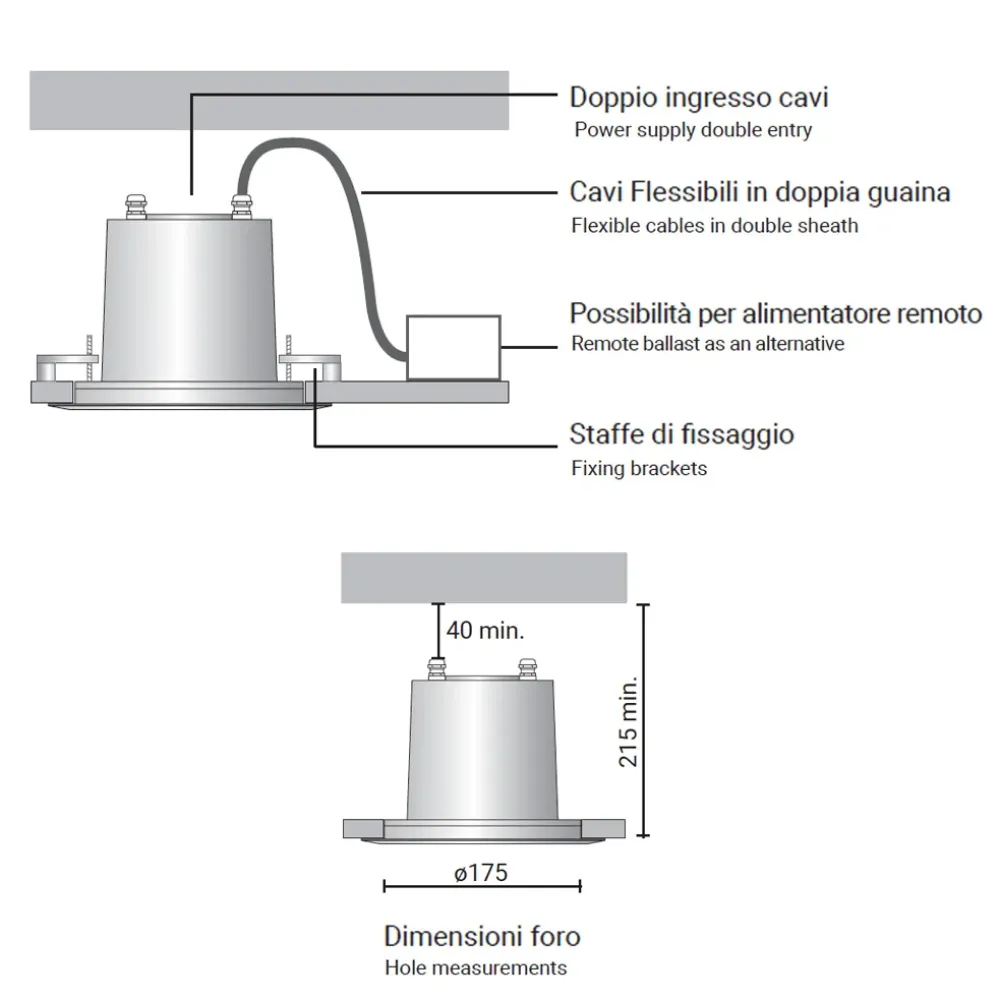

Recessed ceiling fixture equipped with secondary optics for different light distributions, useful for grazing illumination of facades and architectural elements, or with etched glass for diffused distribution combined with glare control. Available with LED AC version or with Driver. Dali dimmable on request with extra charge.
Product specifications
| Assembly | ceiling installation |
| Source | LED Array |
| Source flux | 1690 lm |
| Fixture source | 1216 lm |
| Apparent efficiency | 72.00% |
| Insulation class | class I |
| Overvoltage protection | 2-4kV |
| Operating Ta | 50° |
| Energy class | Class A |
| CCT LED | 3000K |
| CRI | >80 |
| MacAdam step | 3 |
| TM-21 lifespan | L80B10 80000h Ta 25°C |
| Photobiological risk | RG1 |
| Absorbed power | 14 W |
| Power module LED | 12 W |
| Wiring | included |
| Protection | IP67/IK10 |
| Body | die-cast aluminium |
| Box | polypropylene (PP) 30% fiber UV-stabilized GWT750 |
| Frame | stainless steel AISI316L |
| Screen | tempered extra-clear glass 15mm with silk-screen printing |
| Seals | molded silicone gasket UV-resist |
| Screws | Stainless steel A2 |

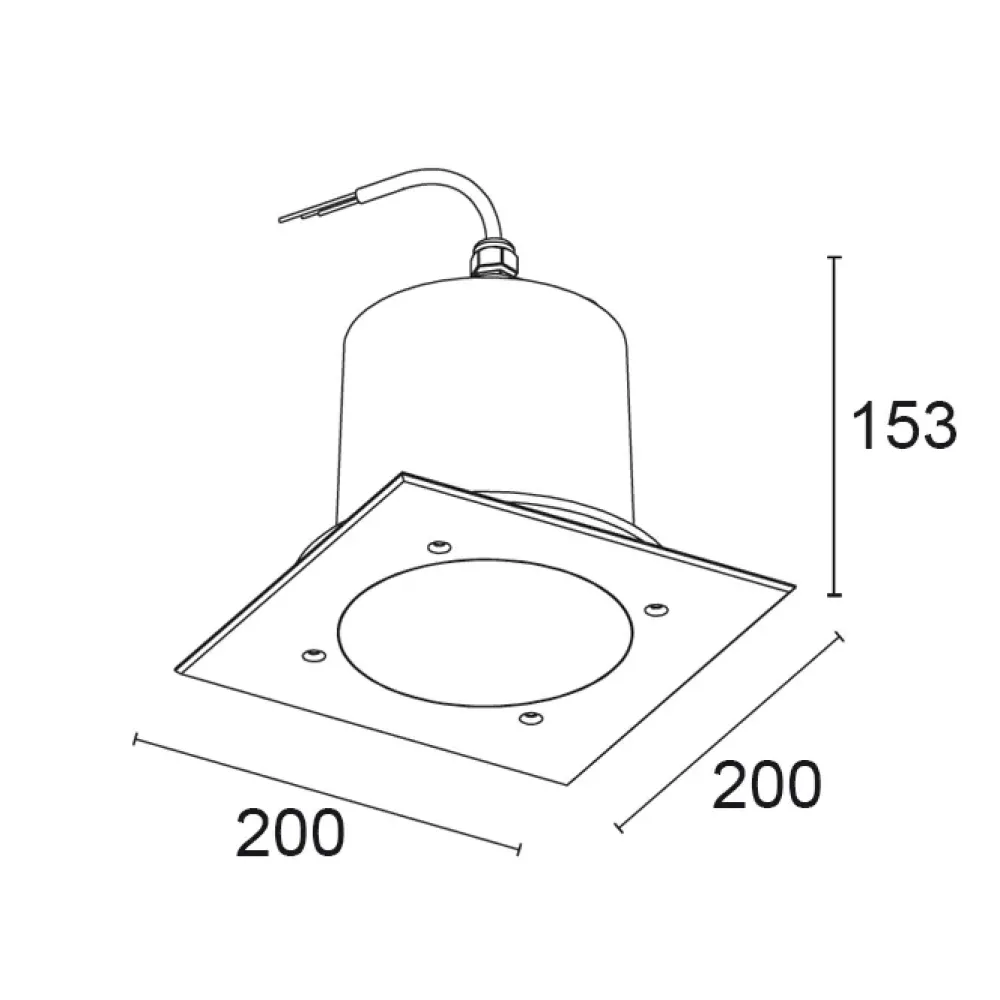

| Size | H 153 x L 200 x W 200 mm |
| Power supply | 220-240 VAC 50/60 Hz |
| Driver | built-in |
| Driver current | 500 mA |
| Control | DALI available on request |
| Specific wiring | included |
| Beam opening | downlight spot/20° |
