Minox

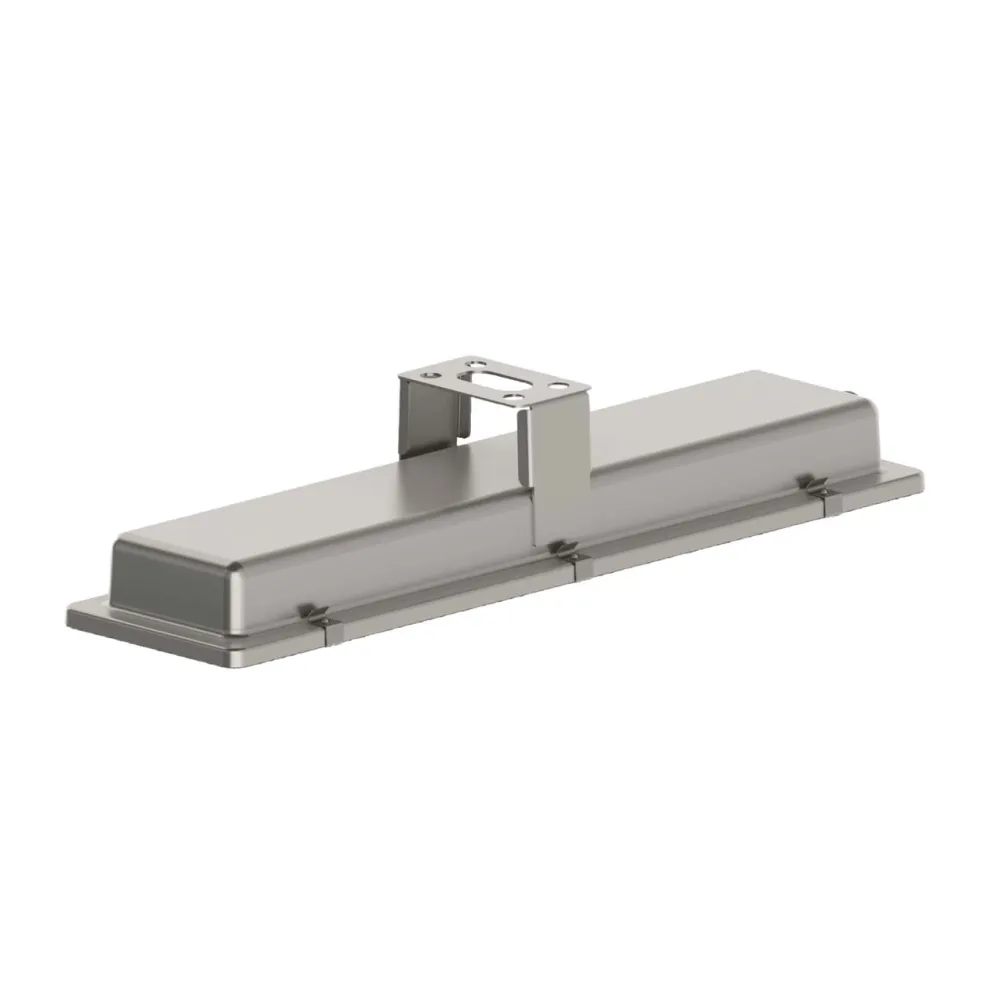

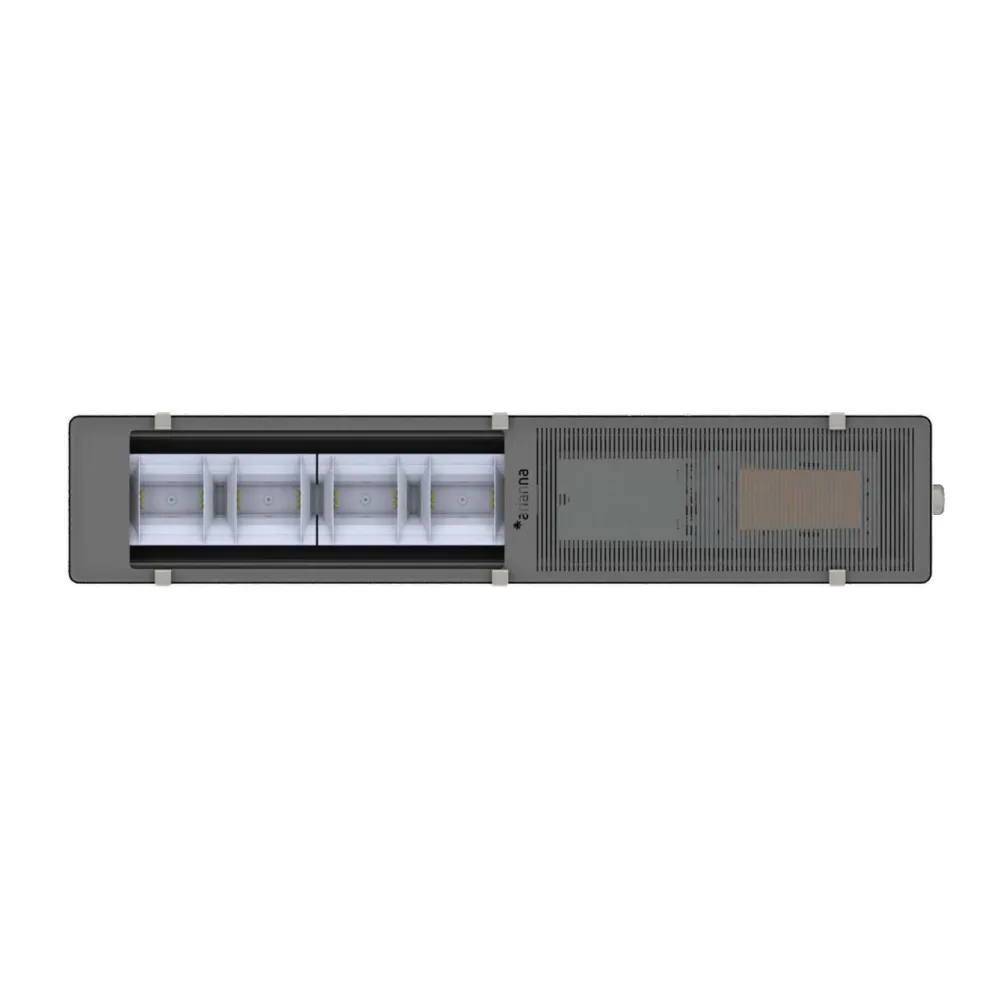

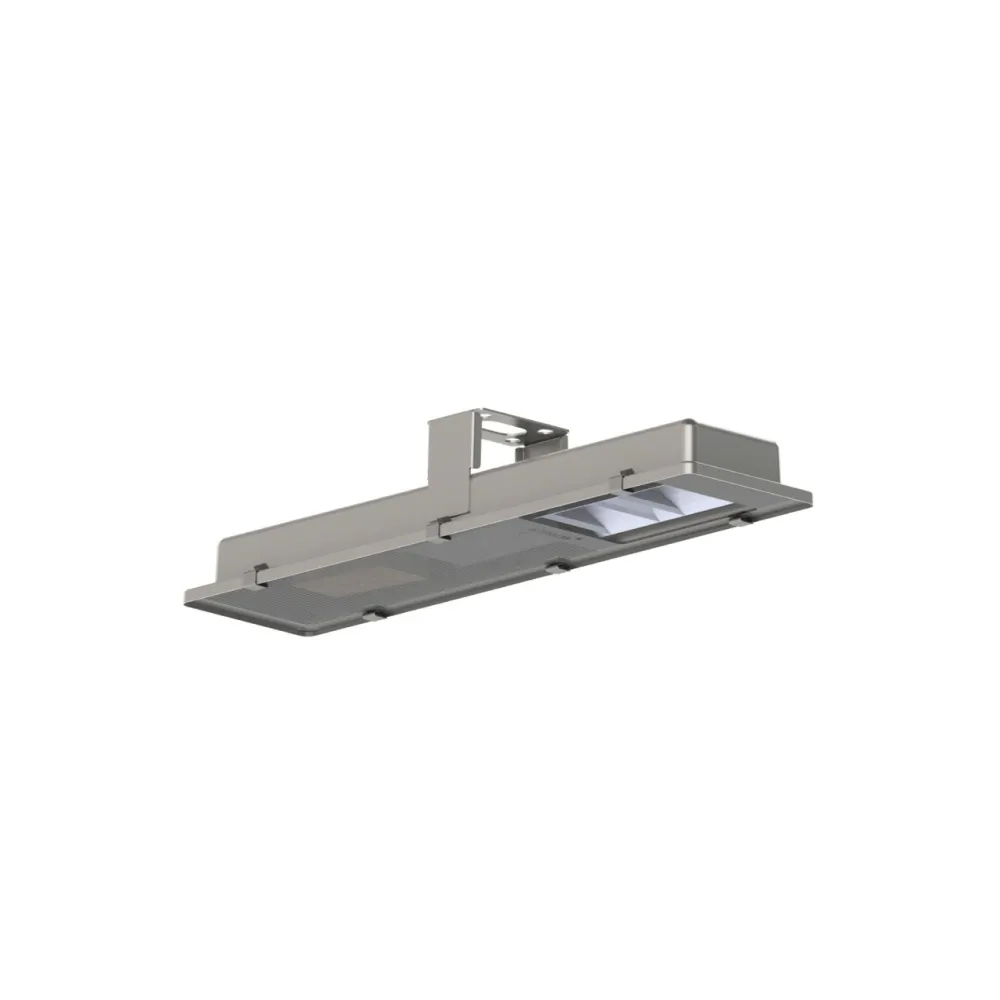

Minox is the stainless steel floodlight with LED technology for harsh and corrosive environments. A single technological solution to illuminate all areas of the tunnel, from the first to the last meter.

The hyper modular stainless steel floodlight

To make the new AISI316L stainless steel tunnel floodlight unique, the R&D department have come up with an entirely solder-free light that maximises the resistance to aggressive environment because it does not use other materials on the outer structure.

The choice of components and raw materials used in Arianna is followed very carefully with a view to ensuring long product life. The maintenance or replacement of lighting fixtures involves high management costs and unnecessary CO2 emissions.

Minox is designed to make installation easy and replace existing methods thanks to its limited weight and universal bracket.

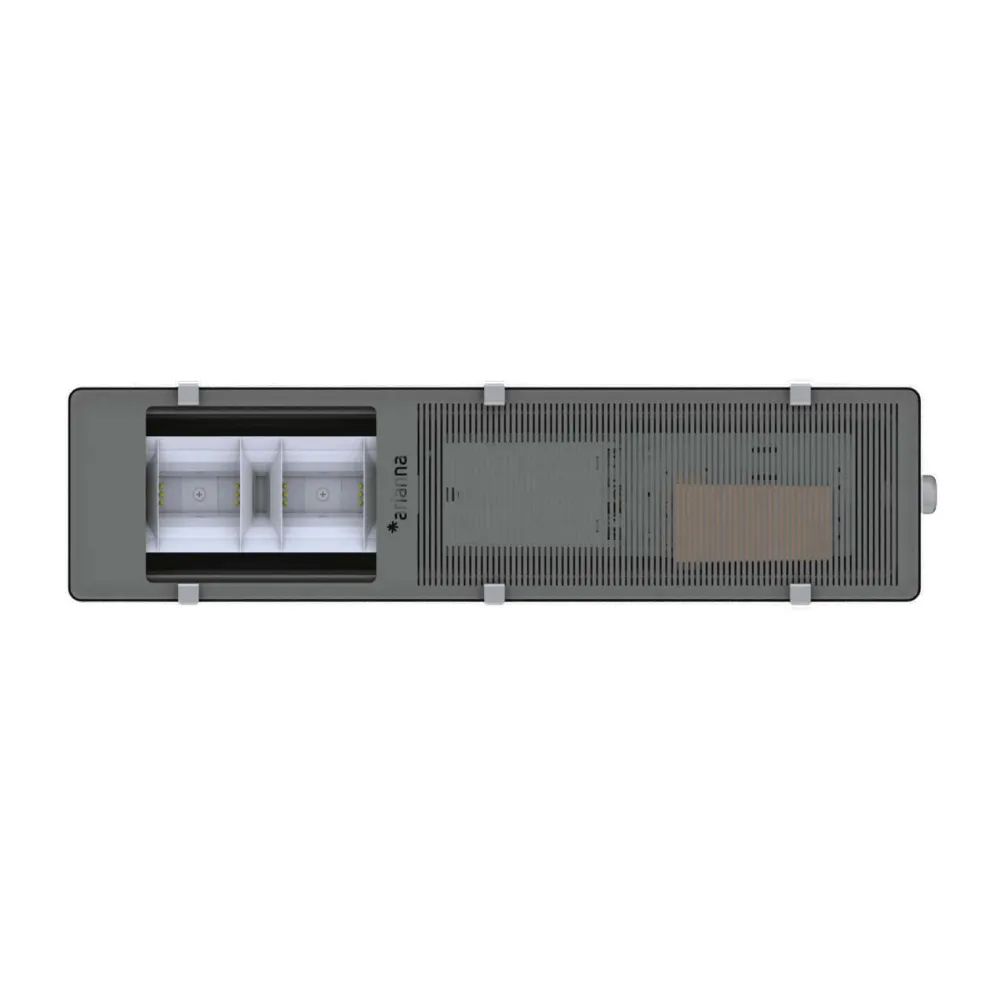

Minox Mini
Minox Mini is suitable, specifically but not exclusively, for the permanent line and is available in three wattage sizes. For the permanent lighting of tunnels, the patented symmetrical total reflection optic is able to guarantee the right light beam in terms of uniformity, glare control and energy efficiency. Minox Mini guarantees fluxes starting from 3600 lumens and in its most powerful version it is able to reach 6600 lumens.

Minox Maxi
Modular, but designed to be suitable mainly for reinforcement, Minox Maxi is presented with configurations of up to 4 modules. For the application as reinforcement lighting, Arianna has prepared a counter-flow optic which, eliminating the vertical and symmetrical components of the photometry, generates a light beam capable of obtaining significant luminance levels, reaching the lighting specifications of the project with considerably lower consumption. Minox Maxi adapts to any type of tunnel thanks to the availability of fluxes from 10,000 lumens in the basic configuration, up to 52,000 lumens in the Minox Maxi 4-module configuration.

Application:
FULL INOX modular projector for tunnel lighting, prepared for remote control systems.
