Item ID: 43727

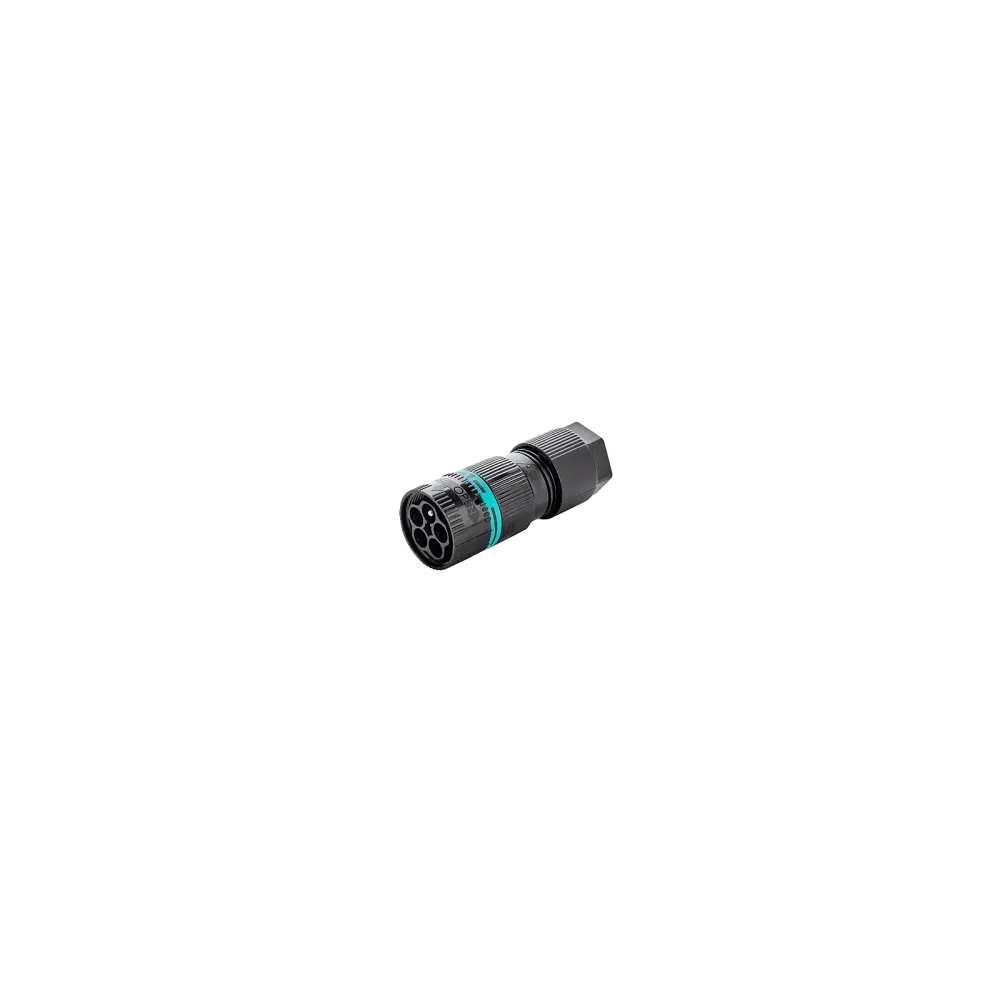

Mini circular connector TH387 long, plug, 5P, screw connection, IP66/IP68
About the product
5-pin mini circular connector TH387 long with screw lock from Techno, Italy
Version: Plug, wire protection
. Connection: Screw
. Locking: Screw
. Version: Long version
Other Techno products and designs on request.
Technical data
Number of poles: 5
Protection class: IP66/IP68
Dimensions: Ø 23.0 x 66.0 mm
Cable diameter: 7.0 - 13.5 mm
Cable cross-section: 0.25 - 1.5 mm2
Rated voltage: 500V AC
Rated current: 17.5 A
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to errors and technical changes
Product specifications
| Connection | Screw terminal |
| Number of poles | 5 |
| Product | Cable plug |
| Temperature range | -40°C to 125°C |
| IP protection | IP66 - IP68 |
| Cable diameter | 7-12 mm |
| Nominal voltage (V) | 500 V |
| Certificates | IEC |
| Nominal current | 17.5 A |
| Manufacturer | Techno |
| Connection cross-section (mm²) | 0.25 - 1.5 mm² |
