Item ID: 43713

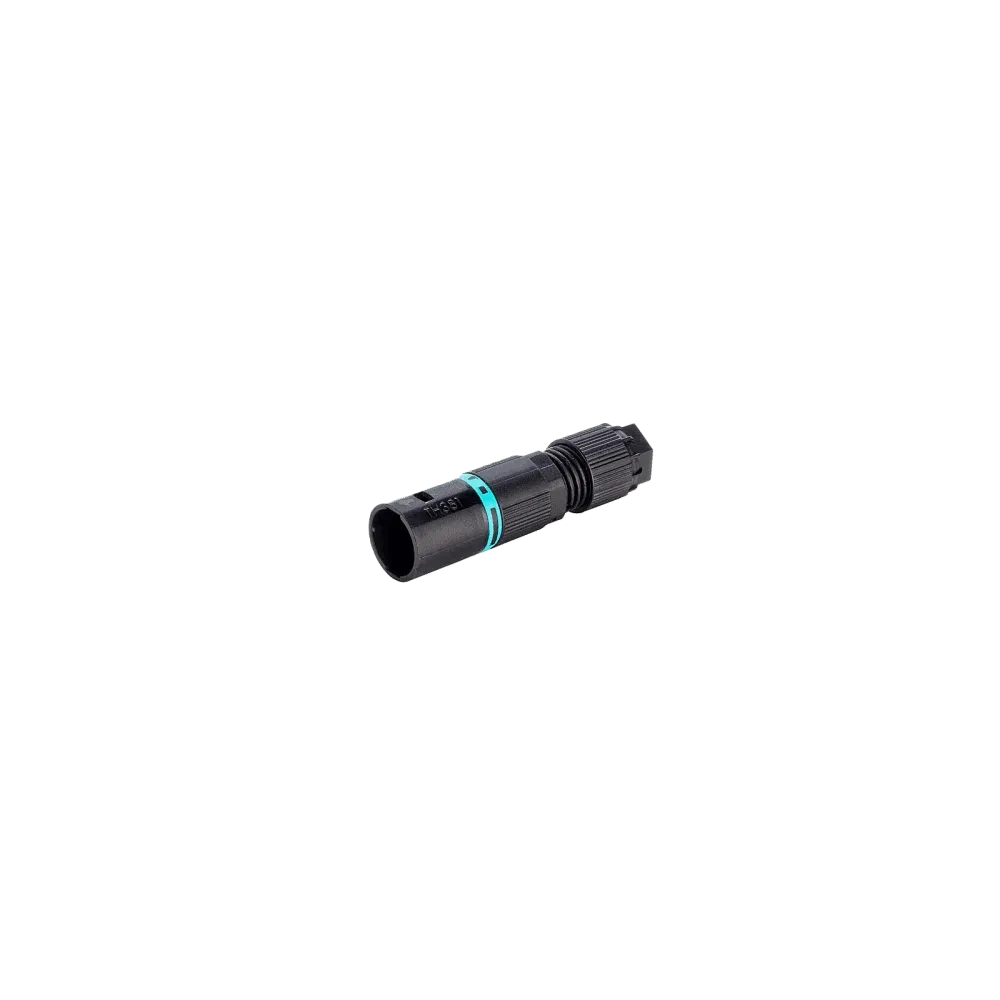

Micro round plug Saferlock, 2p, plug, screw connection, 0.25-1.0mm2, D5.8-6.9mm, IP66/IP68/IP69
About the product
TH381 micro circular connector from Techno
Version: Plug
. Connection: Screw
. Locking: Push-Pull Saferlock (= a tool is required for unlocking)
Other Techno products and designs on request.
Technical data
Number of poles: 2
Protection class: IP66/IP68/IP69
Cable diameter: Ø 5.8 - 6.9 mm
Dimensions:
. Plug size: Ø 14.0 x 53.0 mm
. with counterpart plugged in: Ø 14.0 x 90.0 mm
Cable cross-section: 0.25 - 1.0 mm2
Rated voltage: 500V AC (3V-60V DC)
Rated current: 10A AC/DC
Temperature range: -40°C..+125°C
Manufacturer: Techno
Subject to technical changes
Product specifications
| Connection | Screw terminal |
| Connection cross-section (mm²) | 0.25 - 1.0 mm² |
| Cable diameter | 5.8-6.9 mm |
| Number of poles | 2 |
| Product | Cable plug |
| Temperature range | -40°C to 125°C |
| Nominal voltage (V) | 250 V |
| Nominal current | 10 mA |
| Certificates | IEC |
| Manufacturer | Techno |
| IP protection | IP69 - IP66 - IP68 |
