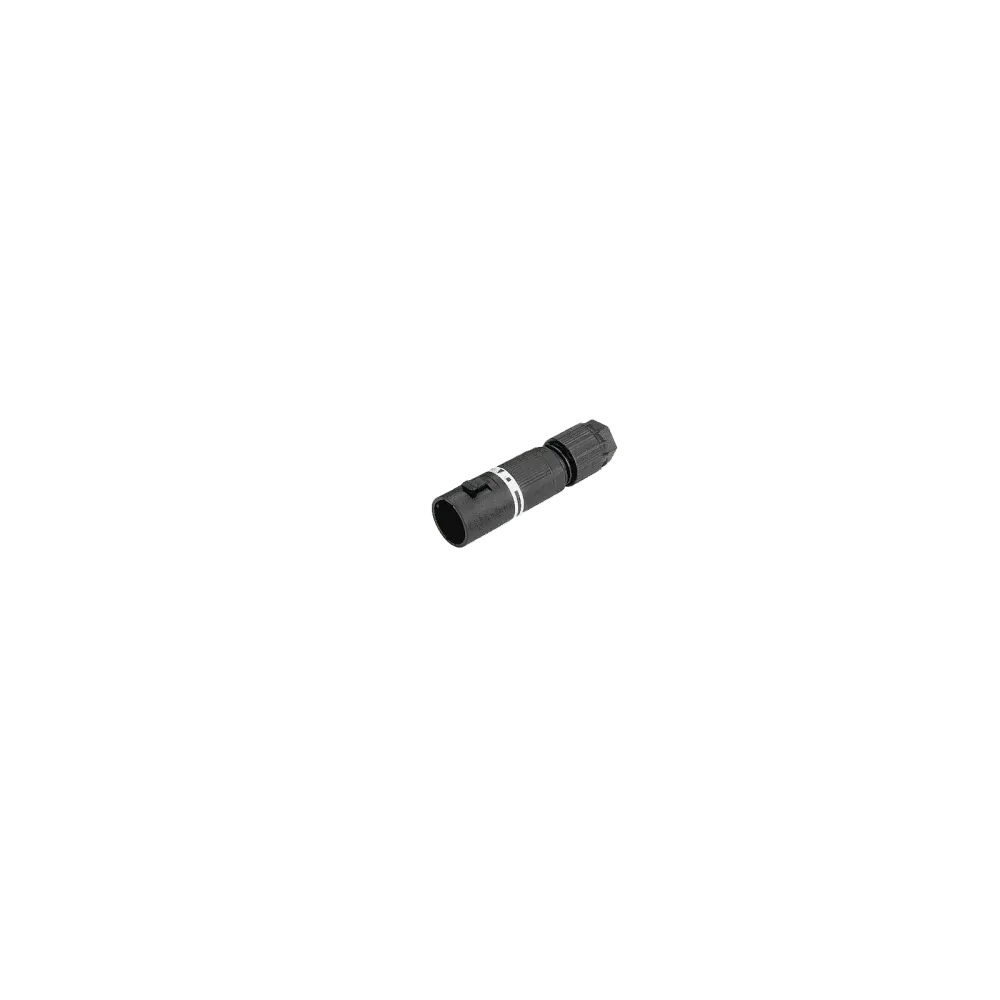

Micro round plug, 3p, male, screw connection, 0.25-1.0mm2, D7.0-8.0mm, IP66/IP68/IP69

Delivery at your place between May 29 and Jul 3 2025

Add to cart

About the product

TH381 micro circular connector from Techno

Version: Plug (pin)
. Connection: Screw
. Locking: Push-pull (unlocking possible without tools)

Other Techno products and designs on request.

Technical data

Number of poles: 3
Protection class: IP66/IP68/IP69
Cable diameter: Ø 7.0 - 8.0 mm
Dimensions:
. Plug size: Ø 14.0 x 53.0 mm
. with counterpart plugged in: Ø 14.0 x 90.0 mm
Cable cross-section: 0.25 - 1.0 mm2
Rated voltage: 500V AC (3V-60V DC)
Rated current: 10A AC/DC
Temperature range: -40°C..+125°C
Manufacturer: Techno

Subject to technical changes

Product specifications

Connection	Screw terminal
IP protection	IP69 - IP66 - IP68
Connection cross-section (mm²)	0.25 - 1.0 mm²
Number of poles	3
Product	Cable plug
Temperature range	-40°C to 125°C
Nominal voltage (V)	250-500 V
Certificates	IEC, UL
Nominal current	10 mA
Manufacturer	Techno
Cable diameter	7-8 mm
