Product
Luna 08 C
Luna 08
Finish
Black anodized
Power/Control
On/Off
DMX-512A and RDM compatible
DALI-2 compatible
Light color/CCT
3000 K
4000 K
RGBW (W 5700 K)
Optics
115° x 3°
100° x 5°
About the product

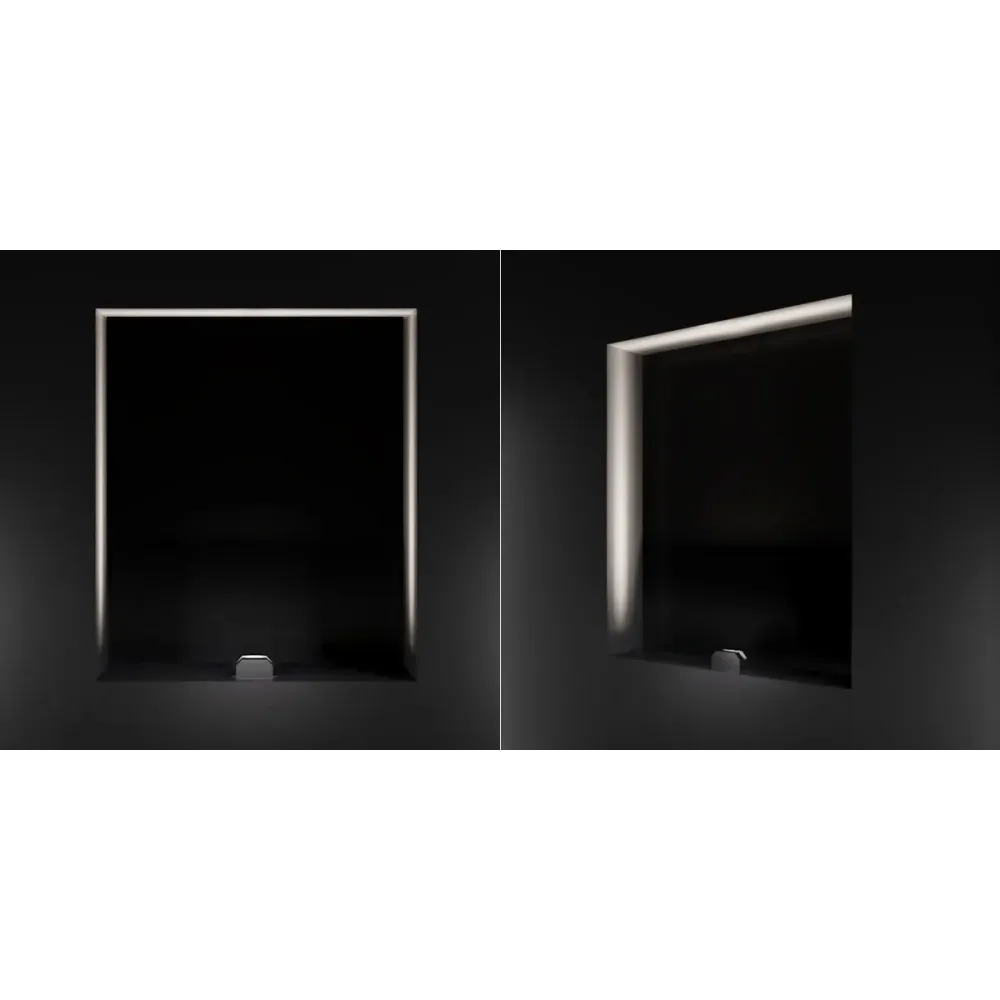

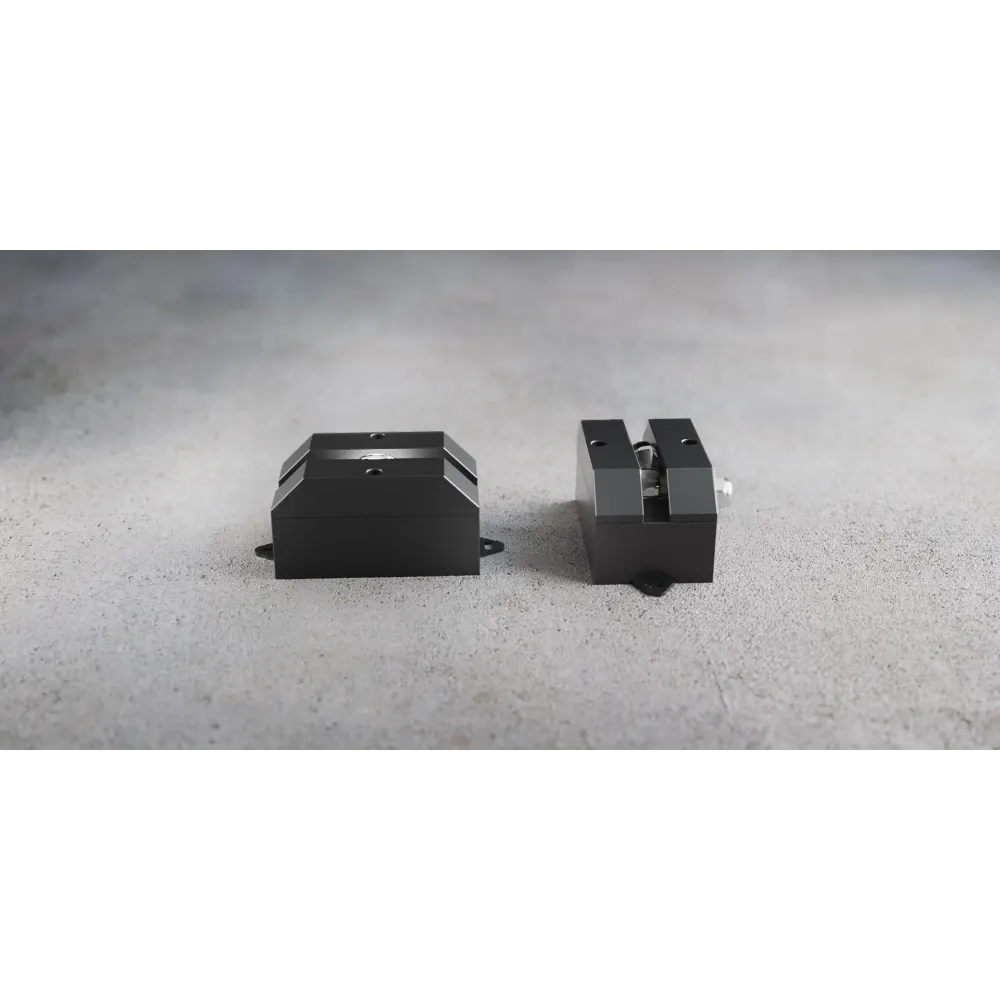

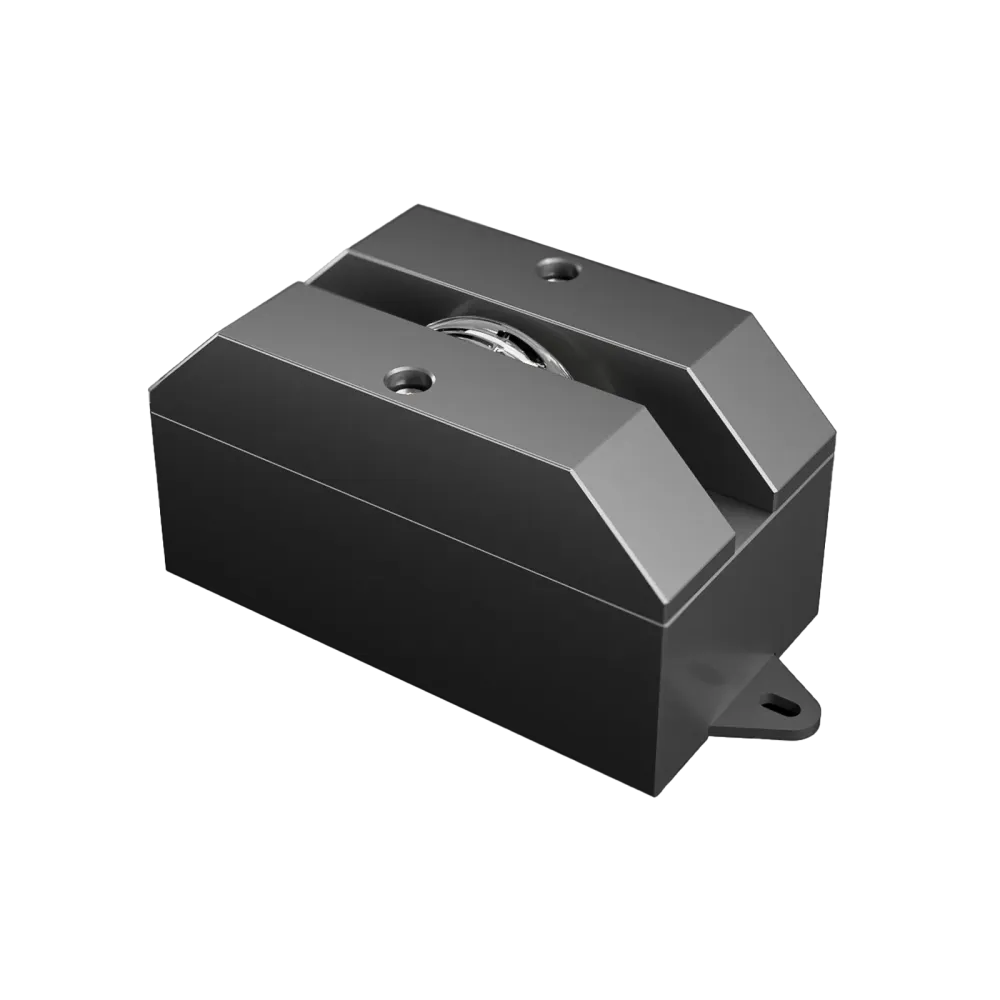

Surface-mounted lightpoint for windows contour lighting, featuring high power LEDs.Two high-precision beam angles.Installation-friendly.On-off version with integrated power supply, DALI or DMX version with internal cards and separate power supply.
Product specifications
| IP rating | IP66 |
| Management interface | DMX-512A and RDM, DALI-2 |
| Colour temperature/CCT | RGBW (W=5700K), 3000K, 4000K |
| Beam angle | 115°x3°, 100°x5° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | black anodized |
| Construction | machine-crafted aluminium alloy, silicone gasket, UV-protected polycarbonate cover, nickel-plated brass, pressure valve |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 975 lm |
| Light efficiency | 133.0 lm/W |
| Delivered flux | 865 lm |
| Delivered efficiency | 106.3 lm/W |
| Input power | 5 W |
| Net weight | 0.5 kg |
