Product
Leonardo 24
Finish
Powder-coated grey
Power/Control
On/Off
DALI compatible
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
8°
35°
50°
45° x 8°
8° x 45°
75° x 40°
40° x 75°
100°
Wide asymmetrical
About the product

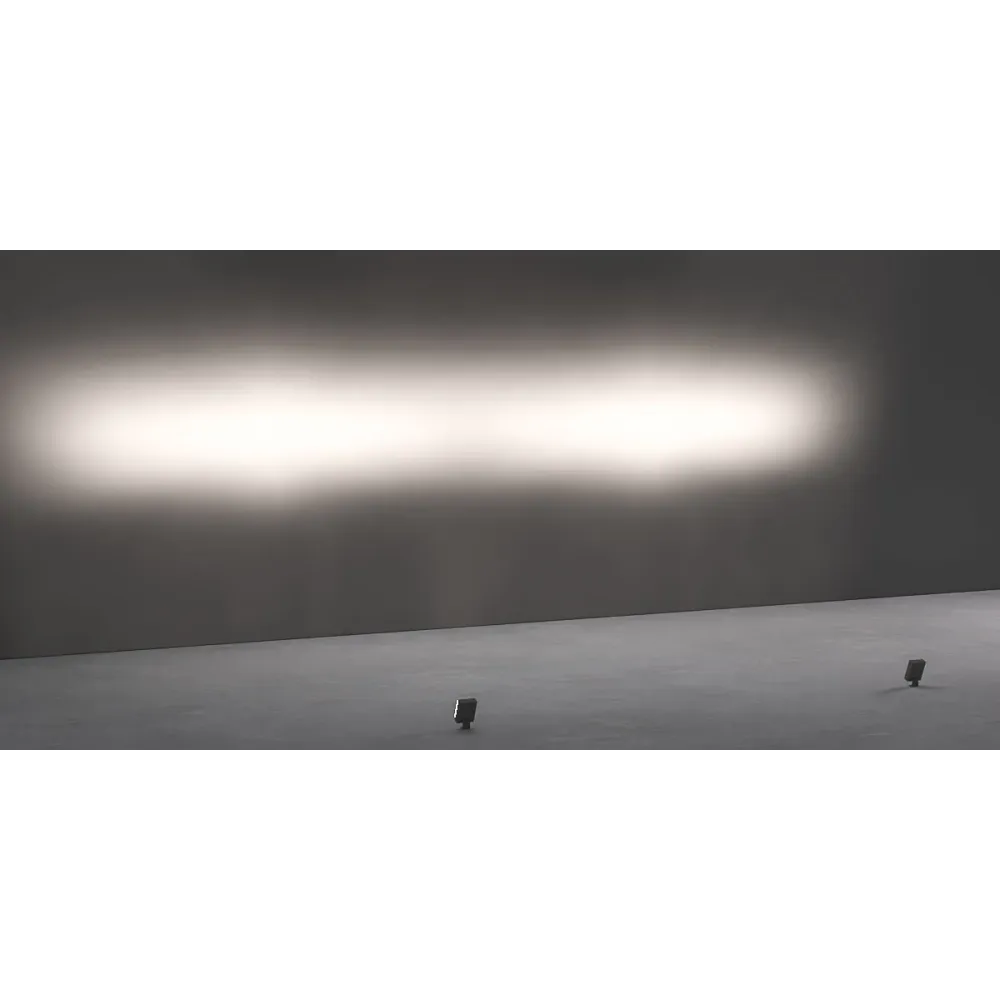

Surface-mounted, adjustable projector for precise accent lighting and wall washing, featuring high power LEDs.Nine high-precision beam angles.Easy positioning and aiming devices.Installation-friendly.Power supply unit on board.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off, DALI-compatible |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 40°x75°, 100°, wide asymmetrical |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | powder-coated, grey |
| Construction | die-cast aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, pressure compensation valve |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >110 000 h L70 B10 at 25 °C |
| Source flux | 3825 lm |
| Light efficiency | 163.7 lm/W |
| Delivered flux | 2935 lm |
| Delivered efficiency | 110.5 lm/W |
| Input power | 28.5 W |
| Net weight | 4.8 kg |
