About the product

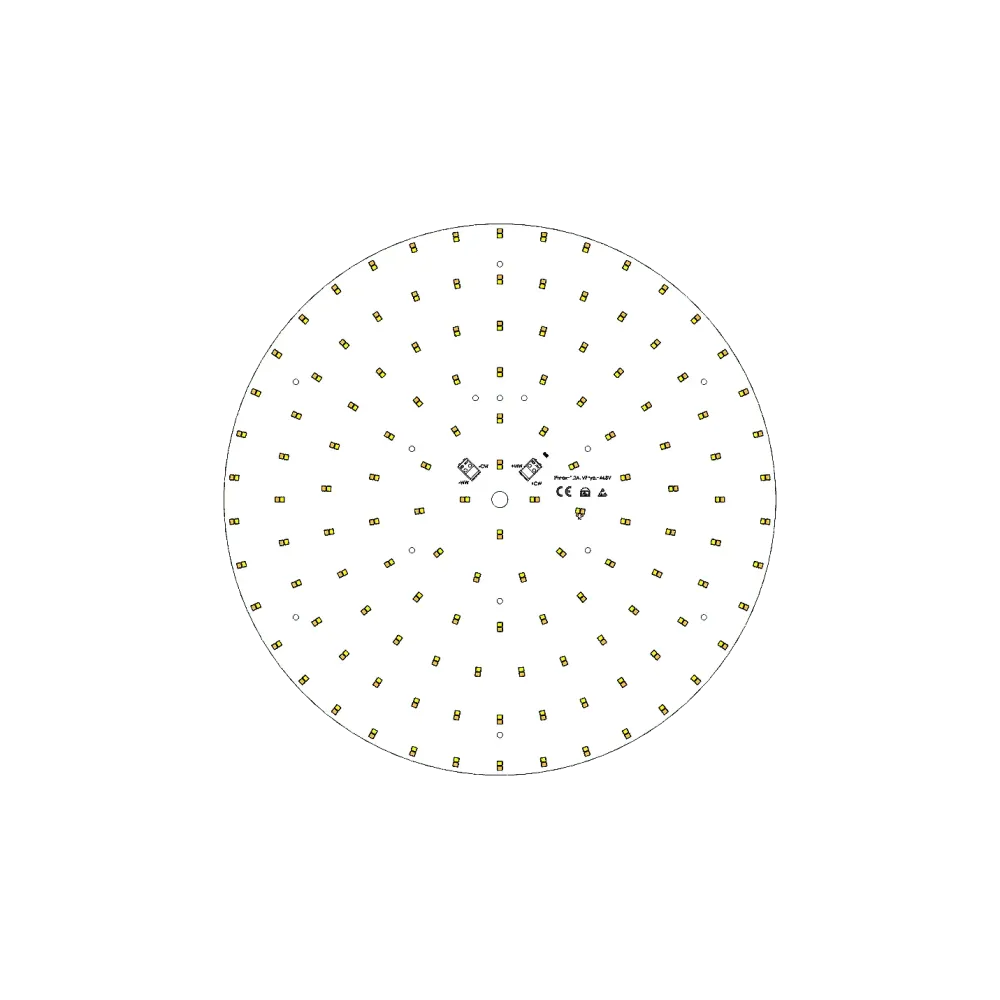

- Round Tunable White LED module with adjustable color temperature from 2700K to 6500K (= one print for 2700K or 6500K)
- This module can also be operated as a standard 2700K or 6500K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current)
- High color rendering Ra >80
- Very narrow color tolerance (MacAdam 3)
Technical data
- Light color: warm white, cold white
- Color temperature: 2700K, 6500K
- Color rendering Ra: >80
- Color BIN: 3SDCM
- Typical luminous flux: 4426lm, 4782lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 44V
- Rated current type: 0.6A
- Nominal power typ.: 26.4W
- Dimension: Ø320mm
- Material: FR-4
- LED: 256 Samsung LM281B+PRO LED (UG-Bin), LM80 tested
- Connections: 2x BJB 46.142.1001 terminals (+WW, -WW, +CW, -CW)
- Beam angle: 120°
Product specifications
| Operating mode | CC |
| Outside diameter | 340 mm |
| PCB material | FR-4 |
| Application | Single Color, Tunable White |
| Colour temperature (K) | 2700, 6500 K |
| Light colour | Cold white|Warm white |
| Colour rendering Ra | 80 |
| Power | 26.4 W |
| Shape | Round |
| Forward voltage | 44 V |
| Forward current | 600 mA |
| Luminous flux | 4426-4782 lm |
