About the product

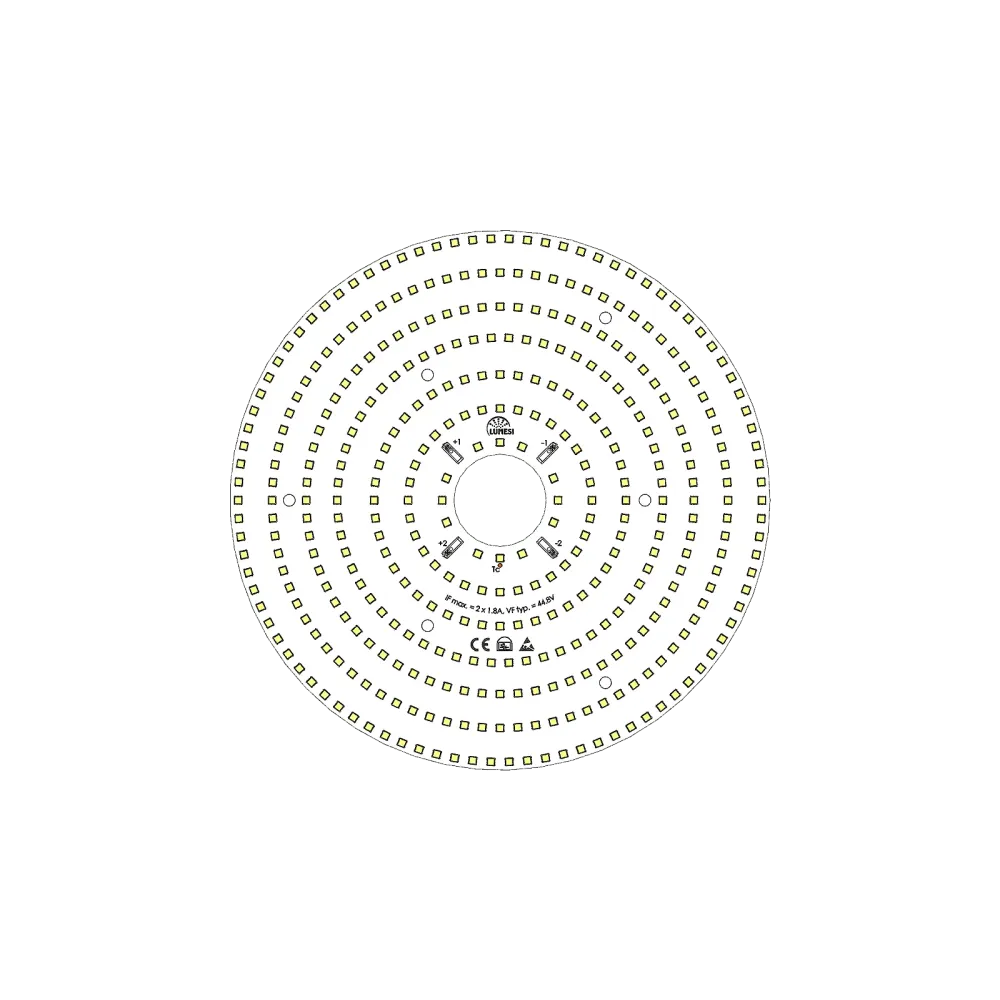

- Ring-shaped LED module with a color temperature of 3000K
- Extremely high module efficiency (constant current)
- High color rendering Ra >80
- Very narrow color tolerance (MacAdam 3)
- The SIMRING is ideal for retrofitting an existing Circline luminaire or for ring-shaped downlights, wall luminaires and ceiling luminaires
Technical data
- Light color: Warm white
- Color temperature: 3000K
- Color rendering Ra: >80
- Color BIN: 3SDCM
- Typical luminous flux: 19327lm
- Operating mode: Constant current CC
- Nominal voltage typ.: 44.64V
- Nominal current typ.: 2x 1.2A
- Nominal power typ.: 107.1W
- Dimension: Ø205mm outside, Ø35mm inside
- Material: Aluminum
- LED: 384 units Samsung LM281B+PRO (VK-Bin), LM80 tested
- Connections: 4 x BJB 46.141.1001.50
- Radiation: 120°
Product specifications
| Application | Single color |
| Outside diameter | 205 mm |
| PCB material | Aluminum |
| Colour temperature (K) | 3000 K |
| Colour rendering Ra | 80 |
| Light colour | Warm white |
| Forward voltage | 44.64 V |
| Power | 107.1 W |
| Inner diameter | 35 mm |
| Shape | Ring |
| Operating mode | CC |
| Luminous flux | 19327 lm |
