About the product

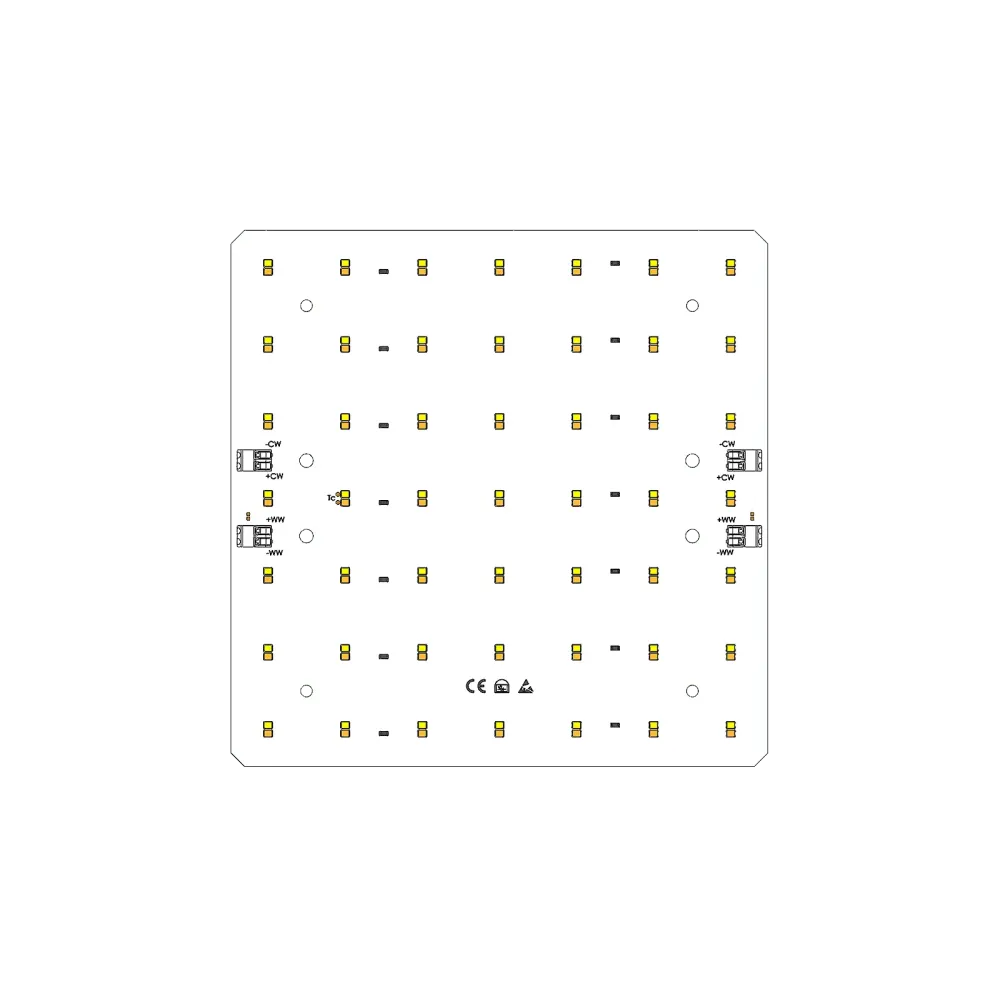

- Square Tunable White LED module with an adjustable color temperature from 3000K to 4000K (= one print for 3000K or 4000K)
- This module can also be operated as a standard 3000K or 4000K version, as both color temperatures can be controlled individually.
- Extremely high module efficiency (constant current and new SAMSUNG LED S90 Inside, LM80 tested)
- Very high color rendering Ra >90
- Very narrow color tolerance (MacAdam 3)
- Ideal for linear luminaires and area lighting
Product specifications
| Energy class | Class C |
| PCB material | Aluminum |
| Colour temperature (K) | 3000, 4000 K |
| Application | Single Color, Tunable White |
| Light colour | Neutral white|Warm white |
| Colour rendering Ra | 90 |
| Maximum forward current (mA) | 1050 |
| Power | 9.6 W |
| Forward current | 500 mA |
| Length | 200 mm |
| Shape | Square |
| Width | 200 mm |
| Forward voltage | 19.3 V |
| Operating mode | CC |
| Luminous flux | 1714-1818 lm |
