Product
Kalos 1
Finish
Black anodized
Power/Control
On/Off optional dimming via accessories
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics
10°
30°
50°
12° x 35°
35° x 12°
80°
About the product

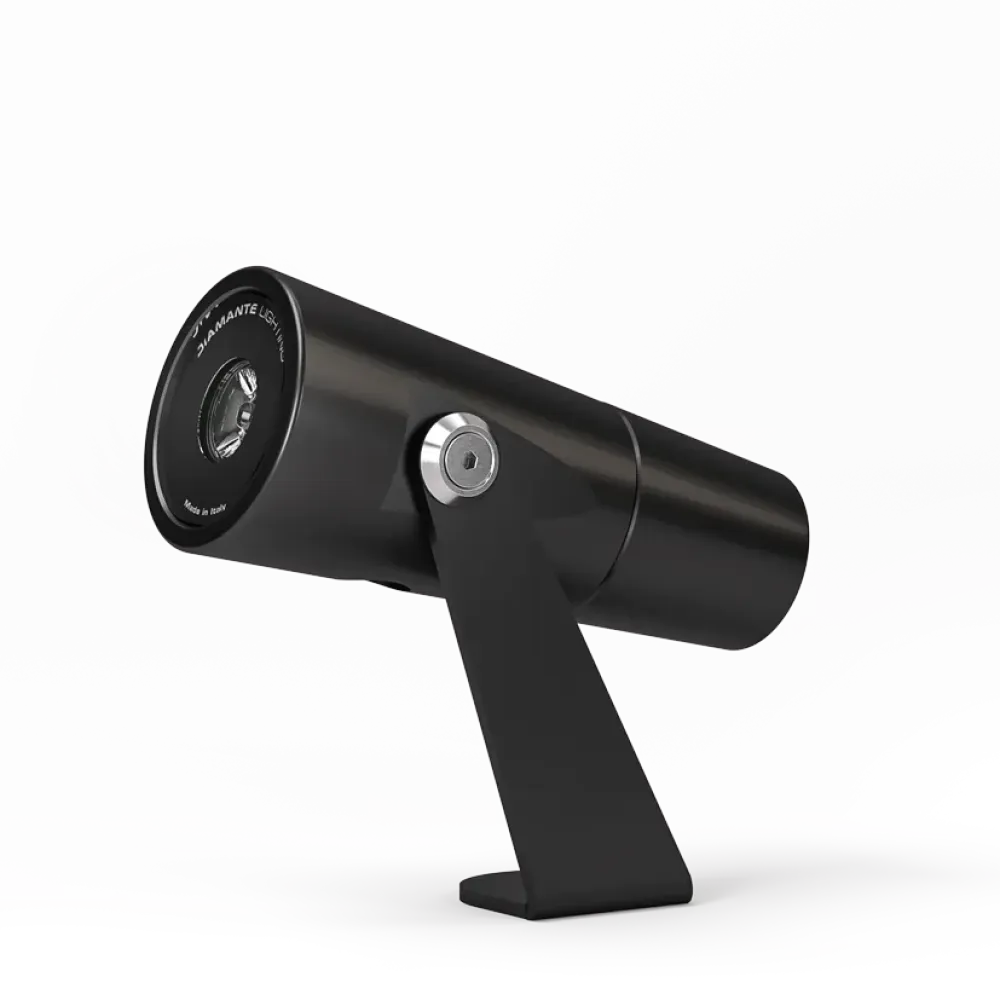

Surface-mounted, adjustable projectors for precise accent and wall washing illumination, featuring high power LEDs.Six high-precision beam angles (Kalos 1) and six-including four degrees angle-(Kálos 2).Easy positioning and aiming devices.Installation-friendly.Remote power supply unit (Kálos 1); power supply unit on board (Kálos 2). Easy positioning and aiming devices.Installation-friendly.Remote power supply unit (Kálos 1).Six high-precision beam angles (Kalos 1).
Product specifications
| IP rating | IP66/67 |
| Management interface | On/Off, dimmable (accessories) |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, 80° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | black anodized |
| Construction | machine-crafted aluminium alloy, silicone gasket, tempered extra-clear glass |
| Power supply | External power supply|Constant voltage |
| Insulation class | Insulation class III |
| Voltage | 24-48 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >90 000 h L70 B10 at 25 °C |
| Source flux | 300 lm |
| Light efficiency | 146.3 lm/W |
| Delivered flux | 230 lm |
| Delivered efficiency | 102.1 lm/W |
| Input power | 2.5 W |
| Net weight | 0.2 kg |
