Jilspot 7 Dynamic 230 V 50/60 Hz - insulation class I
Product
Jilspot 7 Dynamic
Finish
Silver anodized
Power/Control
DMX-512A and RDM compatible
DALI compatible
Light color/CCT
2200 K
3000 K
4000 K
5700 K
RGBW (W 6000 K)
Optics
10°
30°
50°
12° x 35°
35° x 12°
80°
About the product

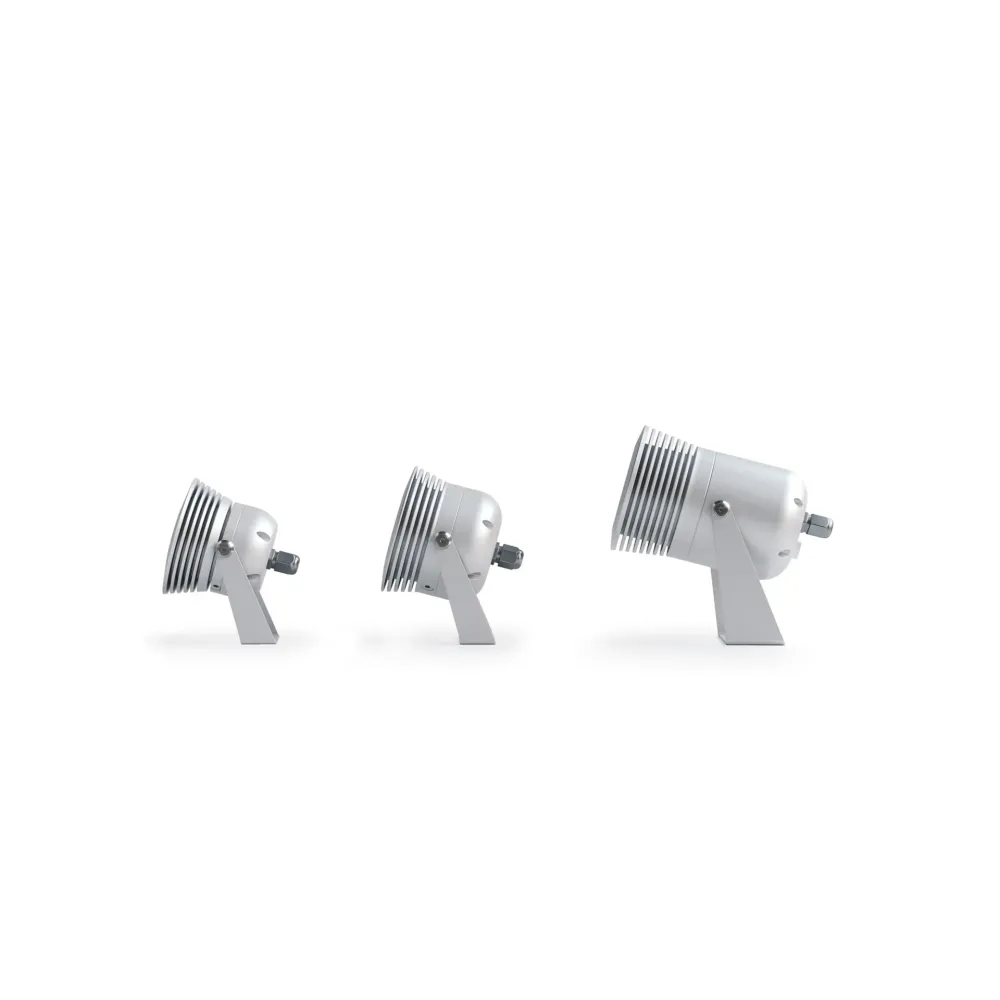

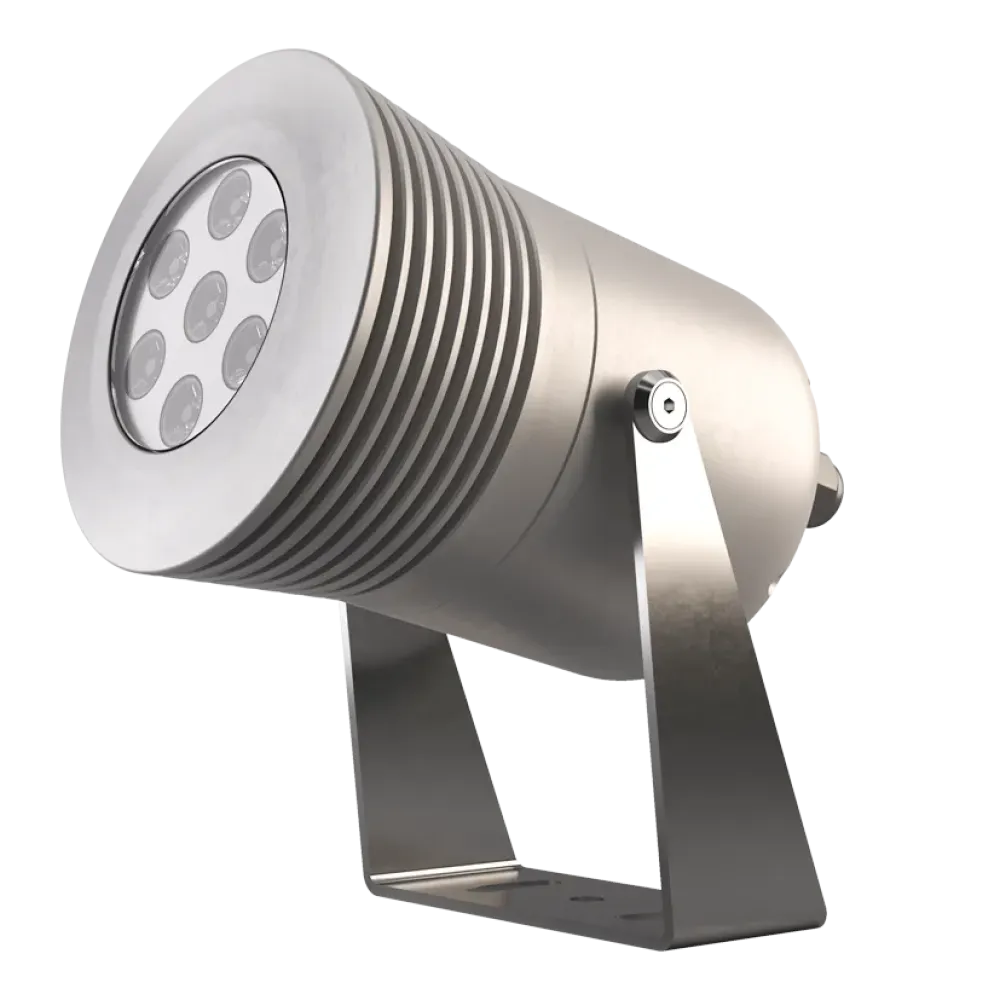

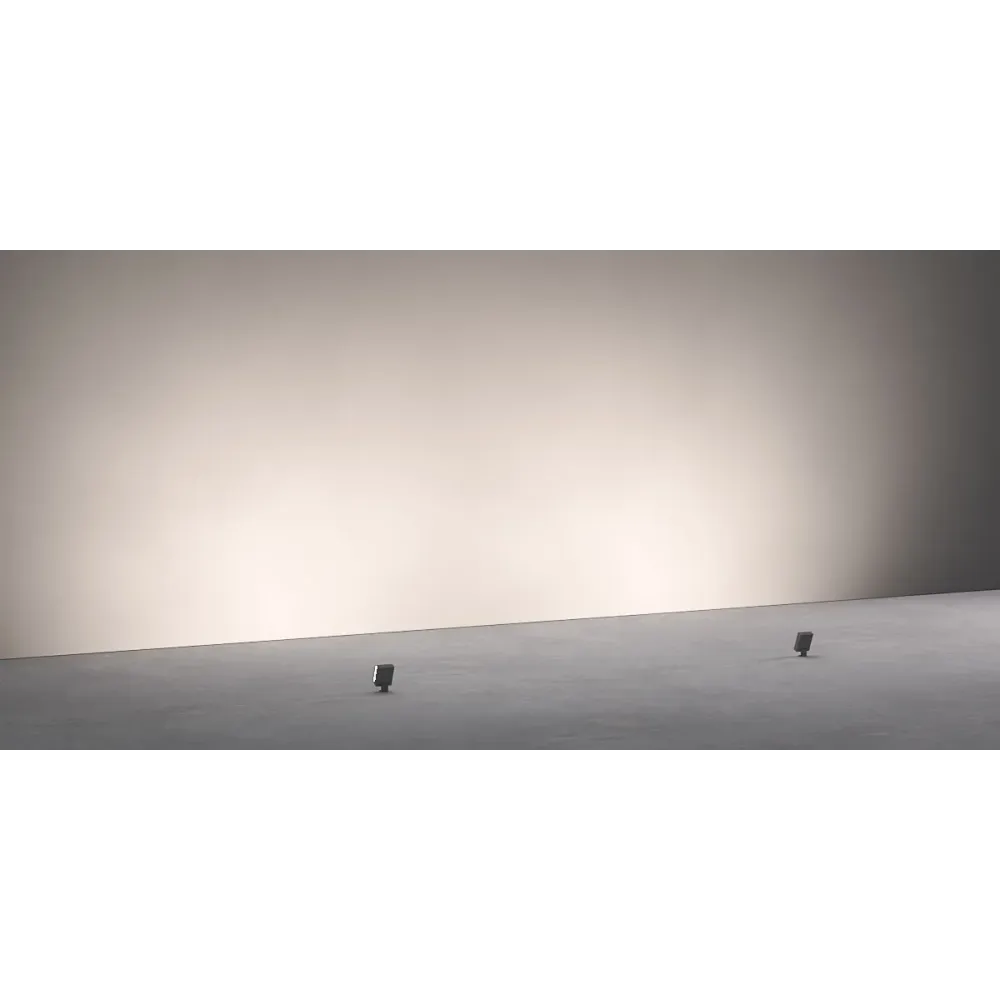

Surface-mounted, adjustable projectors for accent and wall washing illumination, featuring high power LEDs.Six high-precision beam angles.Easy positioning and aiming devices.Installation-friendly.Power supply unit on board.Control through DMX–RDM (Jilspot 7-12 Dynamic).
Product specifications
| IP rating | IP66/67 |
| Management interface | DMX-512A and RDM, DALI |
| Colour temperature/CCT | 2200K, 3000K, 4000K, 5700K, RGBW (W=6000K) |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, 80° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | Surface mounting |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass gland connector, pressure compensation valve |
| Power supply | On-board power supply |
| Insulation class | insulation class I |
| Voltage | 230 V |
| IK rating | 8 |
| Source type | High power LED |
| Source lifespan | >90 000 h L70 B10 at 25 °C |
| Source flux | 2100 lm |
| Light efficiency | 146.3 lm/W |
| Delivered flux | 1595 lm |
| Delivered efficiency | 83.2lm/W |
| Input power | 19 W |
| Net weight | 2.5 kg |
