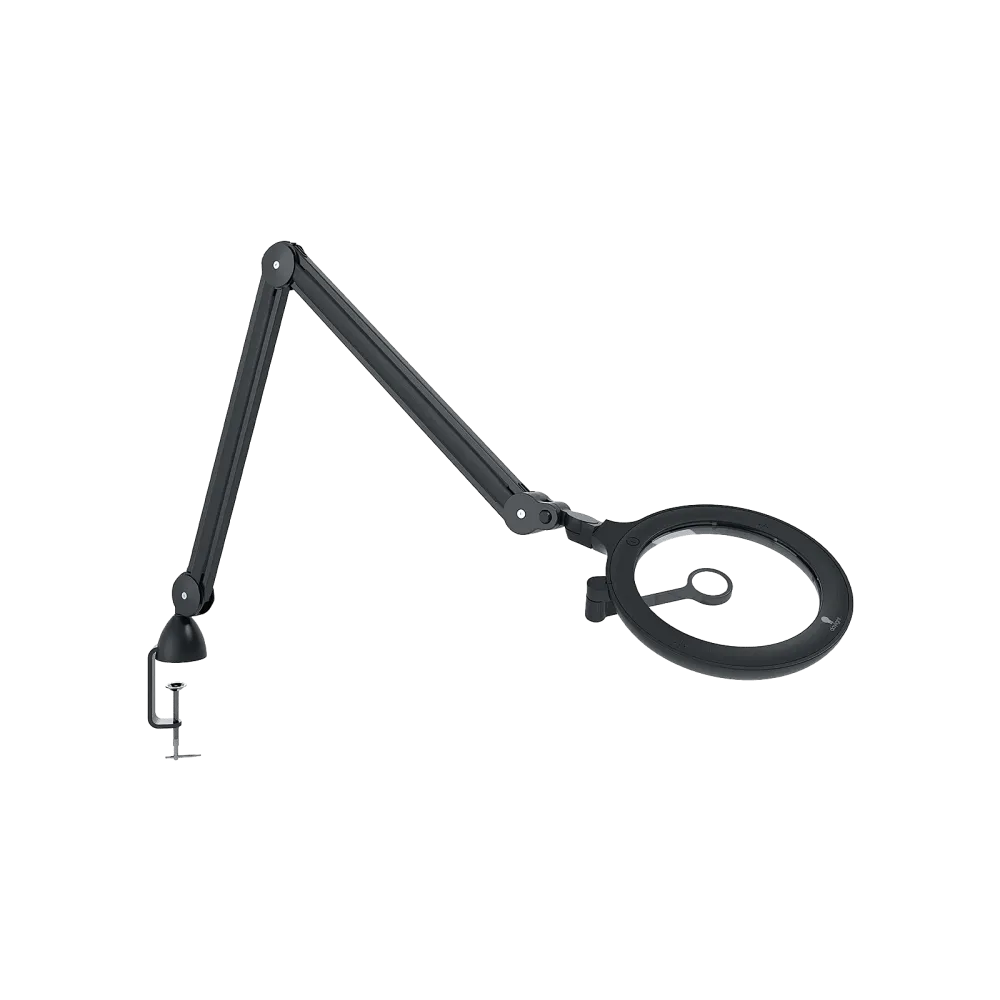

iQ ESD Daylight & UV Magnifier

The iQ ESD™ is a 100% ESD-safe illuminated magnifier, independently certified for use in EPA (Electrostatic Protected Areas) to IEC 61340-5-1 & ANSI/ESD 20:20.

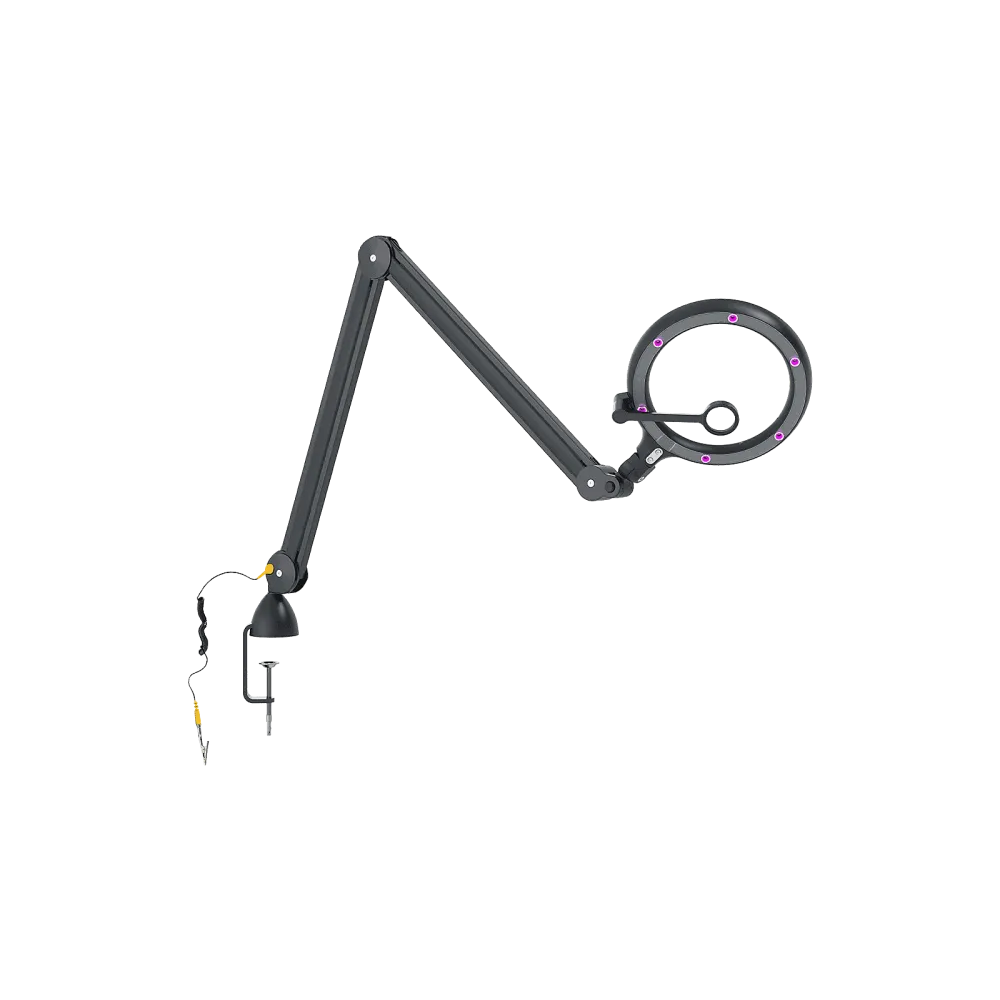

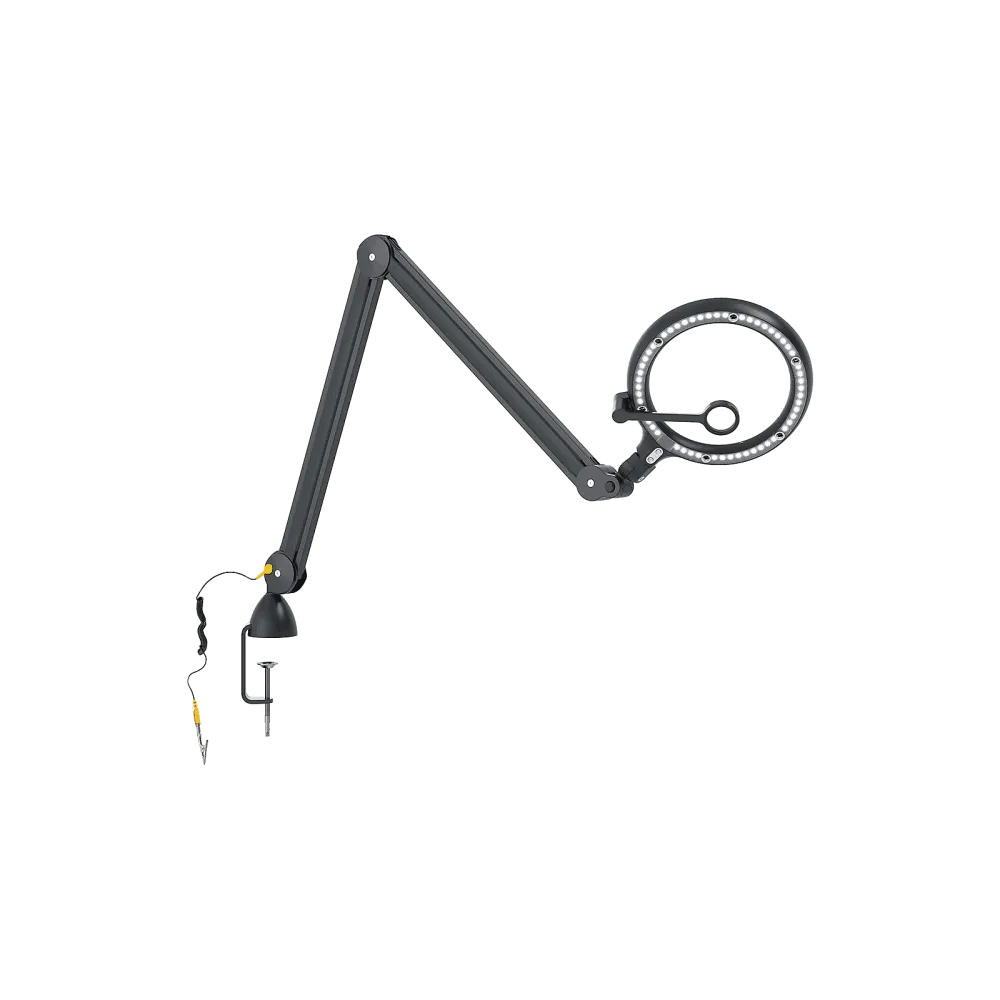

A fantastic 2-in-1 light source, powerful Daylight 6,000K LEDs ensure clarity and shadow-free illumination while UV-A (365nm) LEDs are ideal for conformal coating inspection as well as thorough checking of soldered joints, welds and any other mechanical stress areas. With 2 brightness levels to suit your tasks, joints that hold any position and a large 17.5cm lens, the iQ ESD™ is the ultimate 2-in-1 ESD-safe illuminated magnifier

Features and Benefits

• 2-in-1 light source: powerful Daylight 6,000K LEDs and UV-A (365nm) LEDs
• 100% ESD-safe illuminated magnifier that is independently certified
• Optical quality glass lens 17.5cm
• 3 dioptres magnification (1.75X) supplied with additional 12 dioptres (4X) swing arm magnifier
• Exceptionally strong and durable carbon fibre head and joints
• No adjustment necessary: specifically constructed using free motion joints instead of wing nuts, the iQ ESD will always hold its position
• 2 brightness levels to adapt the lighting to your task at hand
• Long reach of 118cm so you position light exactly where you need it

Technical data

• Light source: LED
• Lumens: 700lm
• Lux output at 15cm: 6,000 and 4,000
• Light colour temperature: 6,000K
• CRI: 95+
• UV light source: LED UV-A
• UV wavelength: 365nm
• Energy consumption: 12W
• Product colour: Black
• Maximum reach: 118cm
• Product weight: 4kg
• Cable length: 2m
