About the product

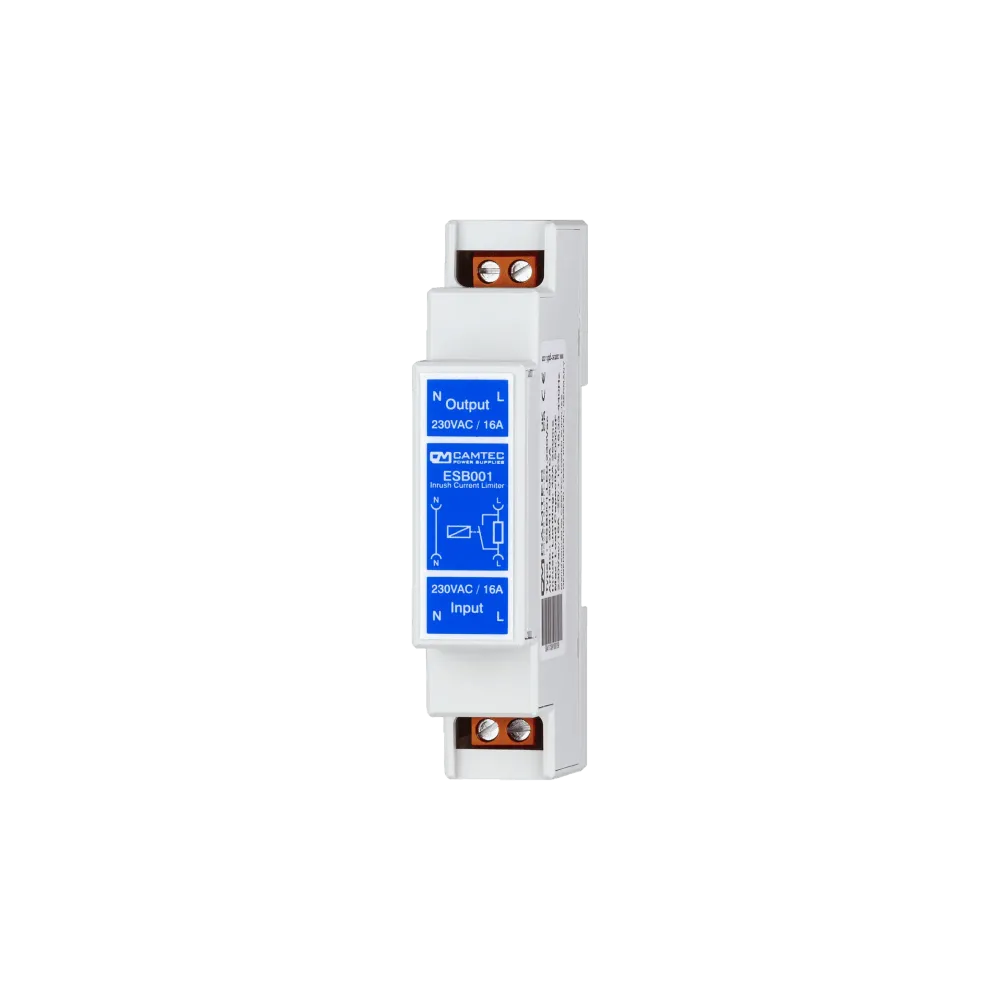

The ESB001.24.230VAC is suitable for protecting contact fires on load relays or protecting multiplex MUX channels from harmful inrush currents. The ESB001 complies with the demanding industry standards EN61010-1, EN61010-2-201 as well as the current IT standard EN62368-1. They are absolutely EMC-neutral for the switchgear and can be operated in all frequencies from the 16 2/3Hz railroad network to the 400Hz on-board network, just like the familiar ESB101 and ESB303 limiters.
Technical data
- Peak / effective current limitation
- 184-265Vac, 16A permanent
- DIN TS35mm standard top-hat rail
- Wall mounting (universal housing)
- Spring clamps 0.5 .. 4mm
- Integrated bypass relay
- Capacitive loads 2200uF
- Built-in temperature monitoring
- IP20 UL94V-O Housing DIN43880
- for DINNDE0603 installation box
- Dimensions 17.9(=1TE) x 89.5 x 62.8mm
- Manufacturer Camtec
Product specifications
| Manufacturer | Camtec |
| Maximum capacitive load | 2200 µF |
| AC current | 16A continuous current |
| Inrush current limitation | 24 A |
