Item ID: 52637

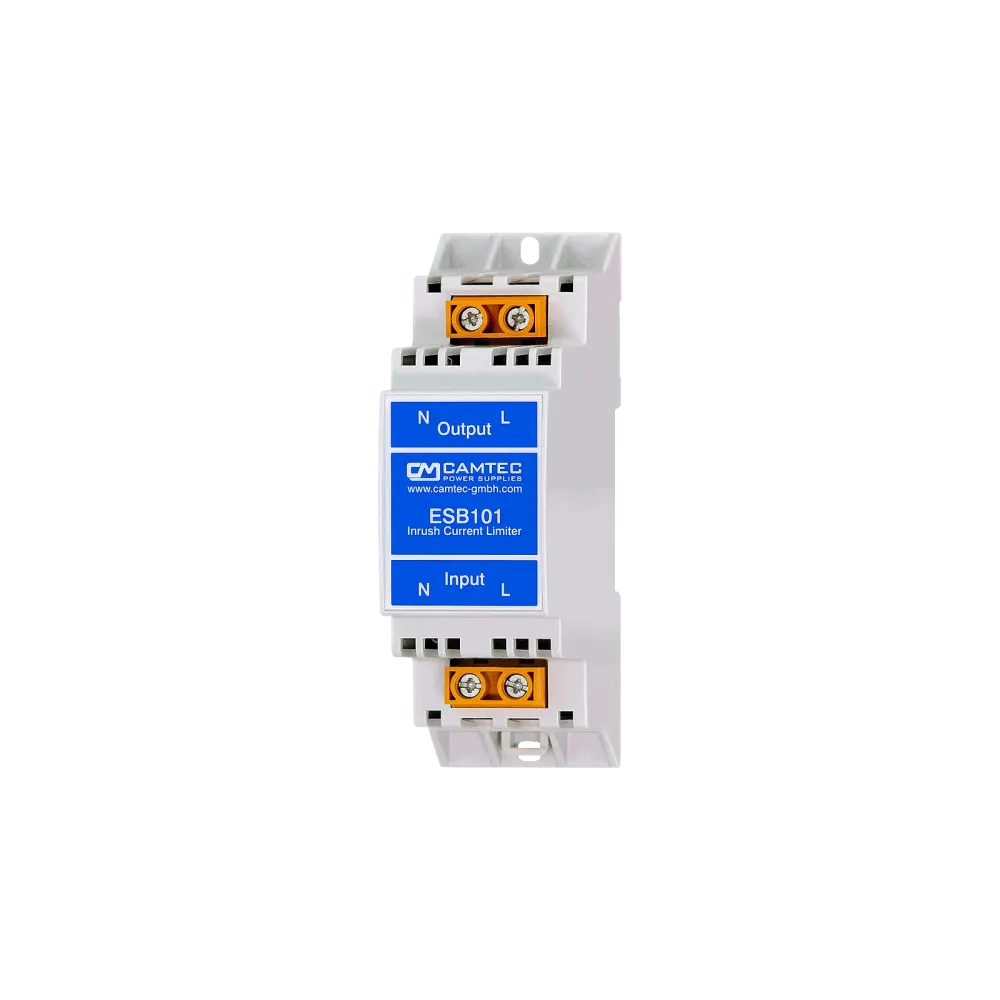

Inrush current limiter (DIN rail version) 23Apeak (16.2Aeff) 500ms / 16A cont
About the product
The Camtec ESB101 and ESB201 series were developed as cost-effective and professional inrush current limiters. The ESBs offer maximum availability and fault-free operation on capacitive and partially inductive loads and are optimized for use in LED applications. Retrofitting existing systems (retrofit) is possible without any problems. An external power supply is not required.
Technical data
- Peak / effective current limitation
- 184-265Vac, 23A continuous
- DIN TS35mm standard top-hat rail
- Wall mounting (universal housing)
- Spring clamps 0.5 .. 6mm
- Integrated bypass relay
- Capacitive load maximum 2000µF
- Built-in temperature monitoring
- IP20 UL94V-O Housing DIN43880
- for DINNDE0603 installation box
- Manufacturer Camtec
Product specifications
| Manufacturer | Camtec |
| Maximum capacitive load | 2000 µF |
| AC current | 16A continuous current |
| Inrush current limitation | 23 A |
Data sheets
