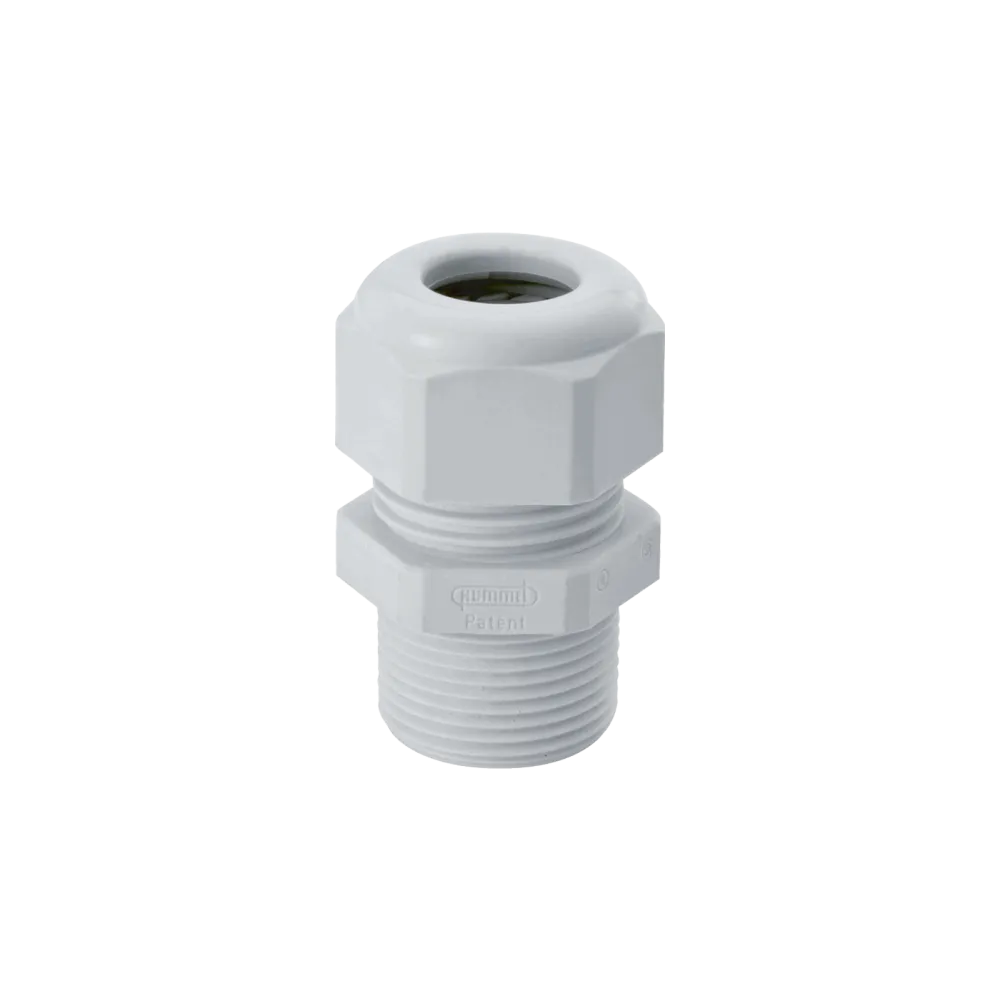

HSK-K M20 x 1.5

HSK-K (metric) M20 x 1.5 Polyamid
HUMMEL HSK-K series cable glands lie in the premium segment and meet the highest demands for quality and safety. When it comes to fi re protection, sealing ability and impact resistance, numerous certifi cations prove performance at the highest level. HUMMEL customers can rely on this.

HSK-K: The right solution for every applicationHUMMEL has a huge range of cable glands for industrial applications on offer. The plastic cable glands of the HSK-K series meet all requirements for tough industrial environments indoors and outdoors. They have all the relevant certifi cates and can therefore be used worldwide, which is why customers have the choice between metric thread types, PG and NPT threads. There are also cable glands for flat cables, ones with multiple inserts and glands with a flexible cable outlet.

// Protection class IP 66, IP 68 up to 10 bar and IP 69K
// RoHS and REACH/SVHC compliant
// Free of conflict materials
// Free of halogen and phosphorus
// Fire protection class V0 according to UL94
// Outdoor resistant polyamide according to UL 746C f1 (HSK-K black)In each case, HUMMEL offers different clamping areas, thread lengths, thread types and various sealing materials for different temperature ranges. The cable glands have all relevant approvals for international markets and a wide range of sectors. Further, unpublished products and versions from HUMMEL on request.

Technical data

• Material: Polyamid V0 according to UL94
• Seal: NBR
• Protection class: IP 54, with additional O-Ring: IP 68 10bar/30min, IP 69 K
• Type Rating by: 12, 4, 4X, 6, UL 50 E
• Temperature range: -40°C…+100°C
• Colours: grey / black / blue
• RAL: 7035 / 9005 / 5012

// with additional premounted O-ring on request
// other sealing materials on request
