About the product

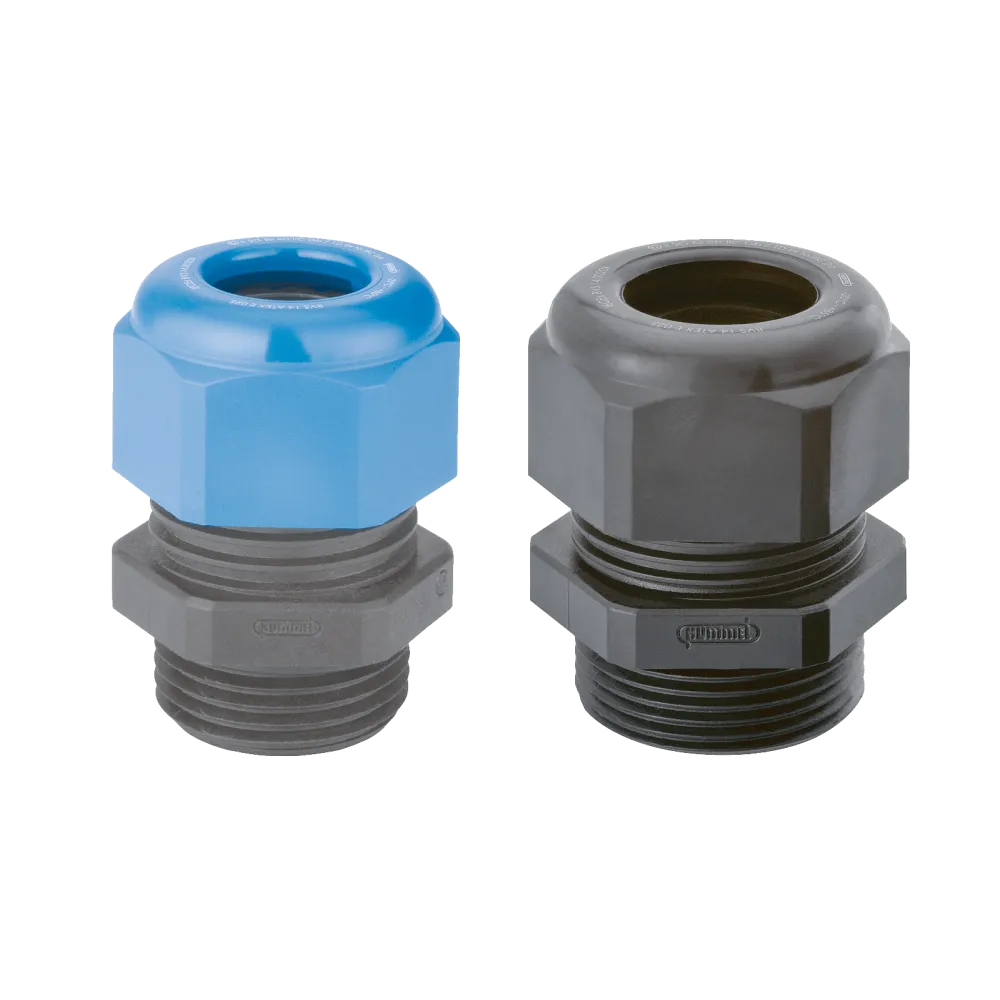

HSK-K-Ex-Active M20 x 1.5 (short) Polyamide, fibreglass reinforcedCable Glands for ex-zone applications from HUMMEL in different colours and for various cable diameters
HSK-K-Ex-Active: Polyamide cable glands for areas at risk of explosionThe cable gland made of specially formulated, fibreglass reinforced polyamide is designed for use on electrical equipment with protection types Ex e and Ex t. It has been developed according to the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and fulfils the current ATEX and IECEx approvals.// Free of halogen
// Protection class IP 68 up to 10 bar
// Union nut vibration protection
// Wear-resistant labelling
// For use in zones 1-2 and zones 20-22Further, unpublished products and versions from HUMMEL on request.
HSK-K-Ex-Active: Polyamide cable glands for areas at risk of explosionThe cable gland made of specially formulated, fibreglass reinforced polyamide is designed for use on electrical equipment with protection types Ex e and Ex t. It has been developed according to the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and fulfils the current ATEX and IECEx approvals.// Free of halogen
// Protection class IP 68 up to 10 bar
// Union nut vibration protection
// Wear-resistant labelling
// For use in zones 1-2 and zones 20-22Further, unpublished products and versions from HUMMEL on request.
Technical data
- Material: Polyamide. fiber reinforced
- Seal: NBR
- Material o-ring: NBR
- Protection class: IP 68 – 10 bar
- Ex-protection level: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da / Class I Div 2 Groups A,B,C,D / Class II Div 1 Groups E,F,G
- Temperature range: -20°C…85°C
- Colour: black / blue-black
- RAL: 9005 / 5012
Errors and Technical changes reserved
Product specifications
| Manufacturer | Hummel |
| Series | HSK-K-Ex-Active |
