HSK-K-Ex-Active M12 x 1.5 (short)

HSK-K-Ex-Active M12 x 1.5 (short) Polyamide, fibreglass reinforced

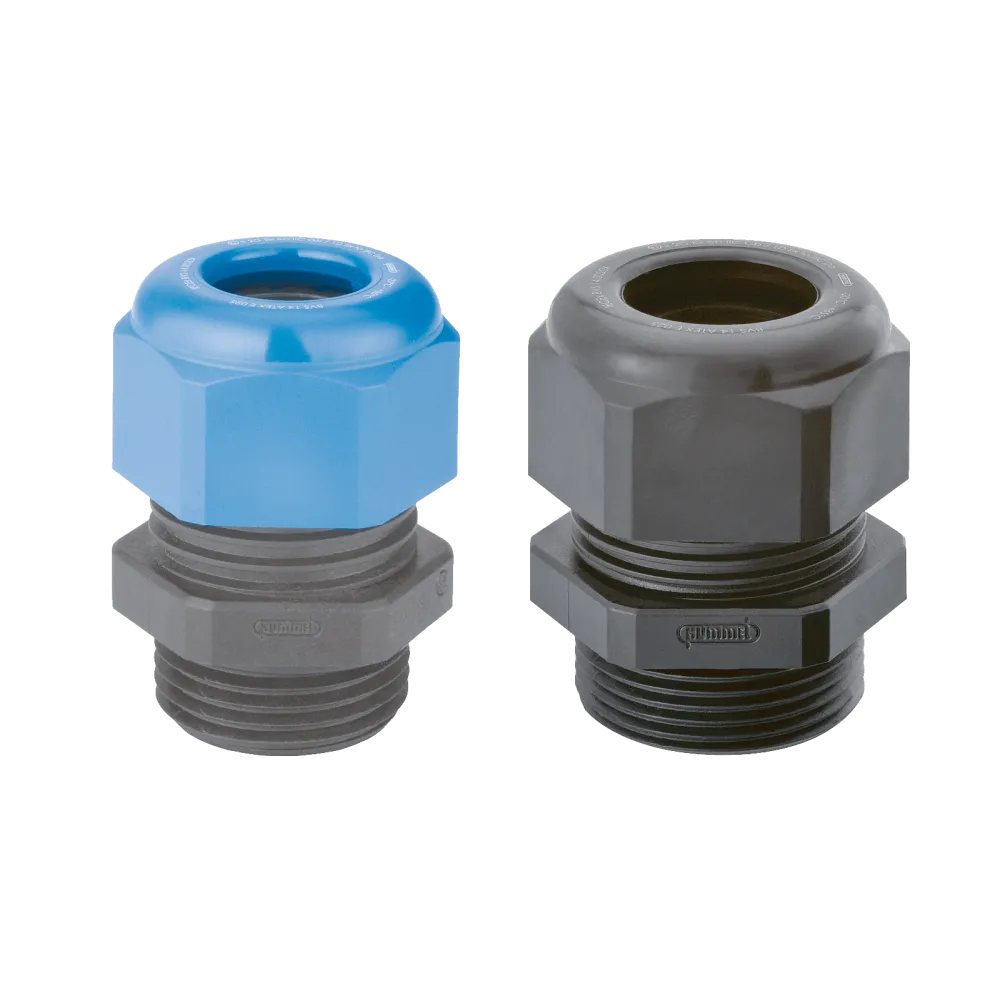

Cable Glands for ex-zone applications from HUMMEL in different colours and for various cable diameters

HSK-K-Ex-Active: Polyamide cable glands for areas at risk of explosion
The cable gland made of specially formulated, fibreglass reinforced polyamide is designed for use on electrical equipment with protection types Ex e and Ex t. It has been developed according to the DIN EN IEC 60079-0, 60079-7 and 60079-31 series of standards and fulfils the current ATEX and IECEx approvals.

// Free of halogen
// Protection class IP 68 up to 10 bar
// Union nut vibration protection
// Wear-resistant labelling
// For use in zones 1-2 and zones 20-22

Further, unpublished products and versions from HUMMEL on request.

Technical data

• Material: Polyamide, fiber reinforced
• Seal: NBR
• Material o-ring: NBR
• Protection class: IP 68 – 10 bar
• Ex-protection level: II 2G Ex eb IIC Gb / II 1D Ex ta IIIC Da / Class I Div 2 Groups A,B,C,D / Class II Div 1 Groups E,F,G
• Temperature range: -20°C…85°C
• Colour: black / blue-black
• RAL: 9005 / 5012

Errors and Technical changes reserved
