Item ID: 15084.8181.987.7687.1054.2301
Ghostbeam 2 constant current input - insulation class III
Product
Ghostbeam 2
Finish
Silver anodized
Power/Control
By remote device
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics

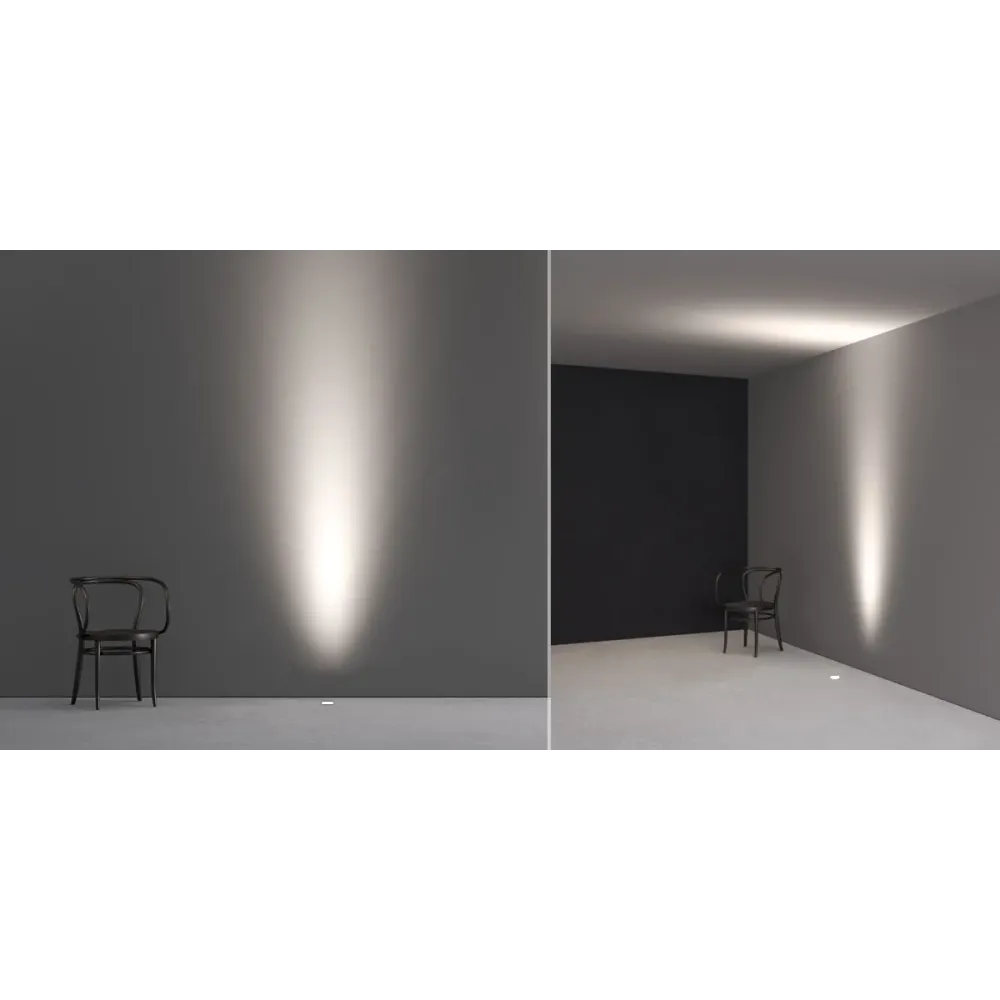

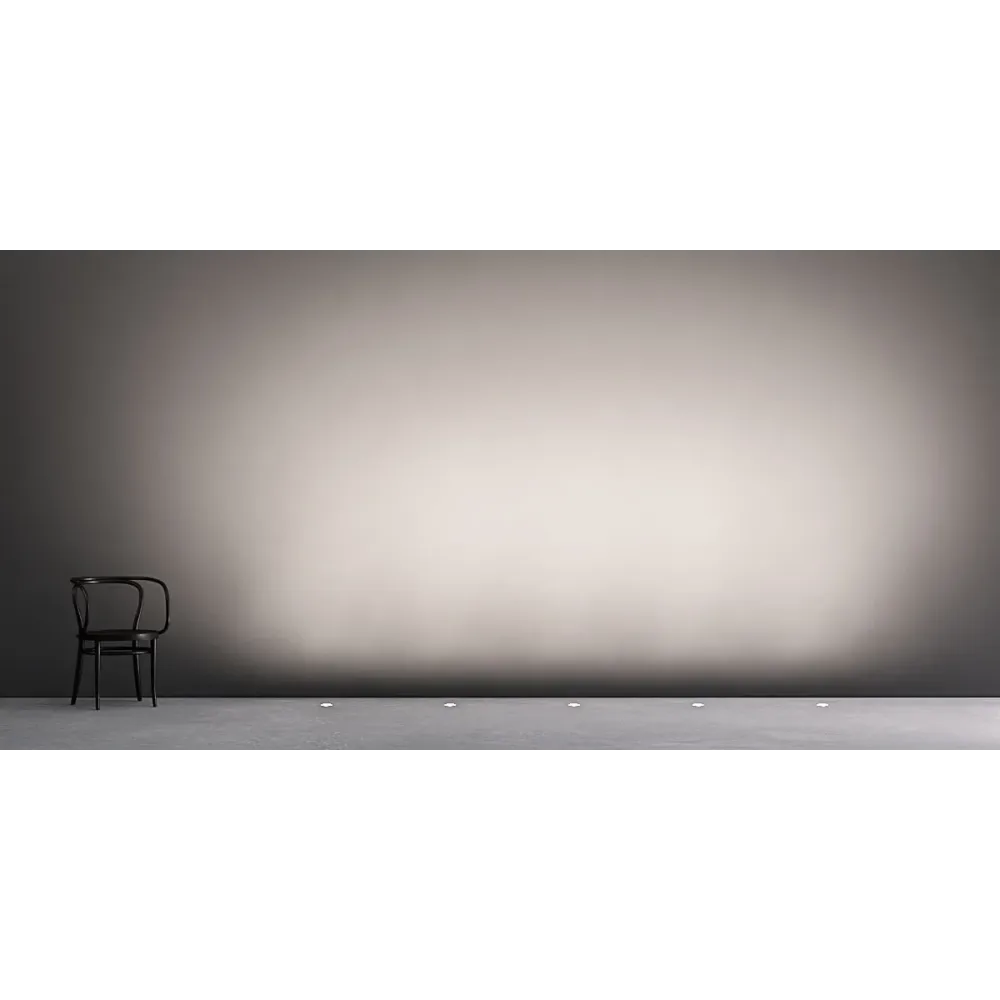

Wide wall washer

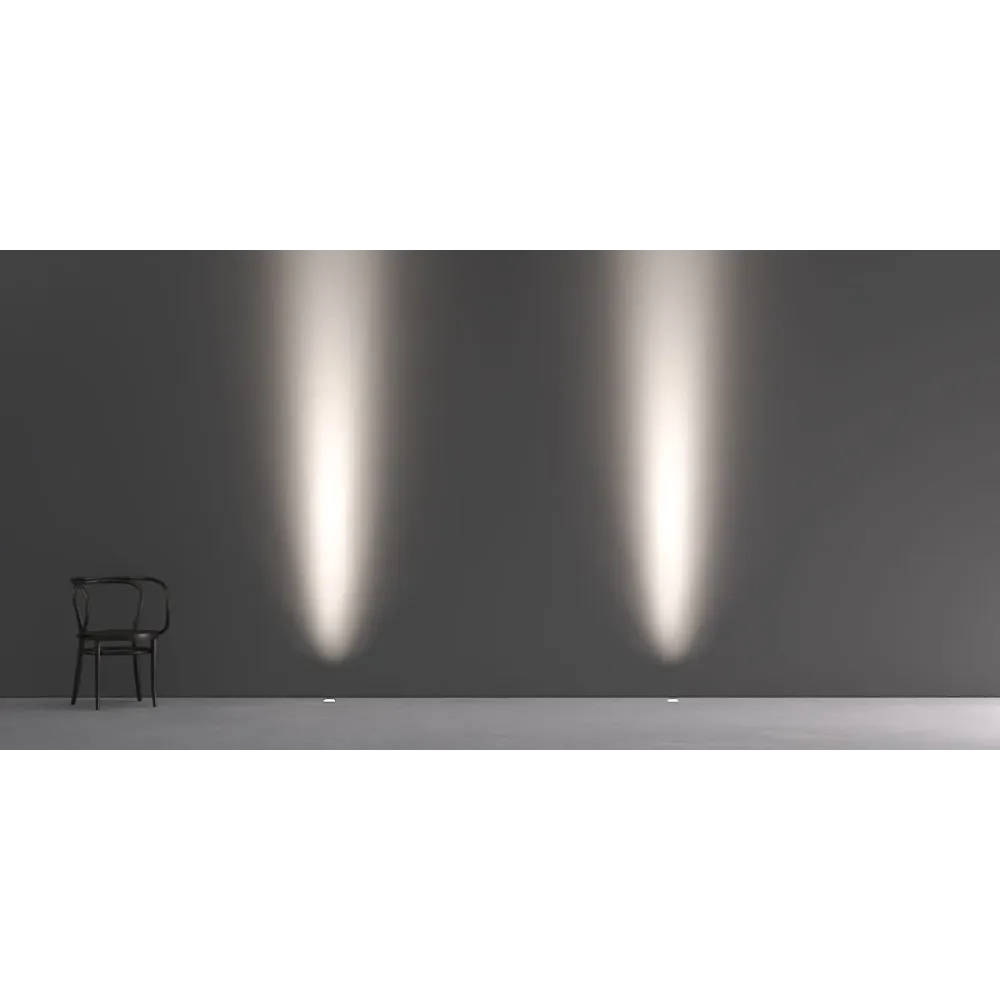

Wide asymmetrical
About the product

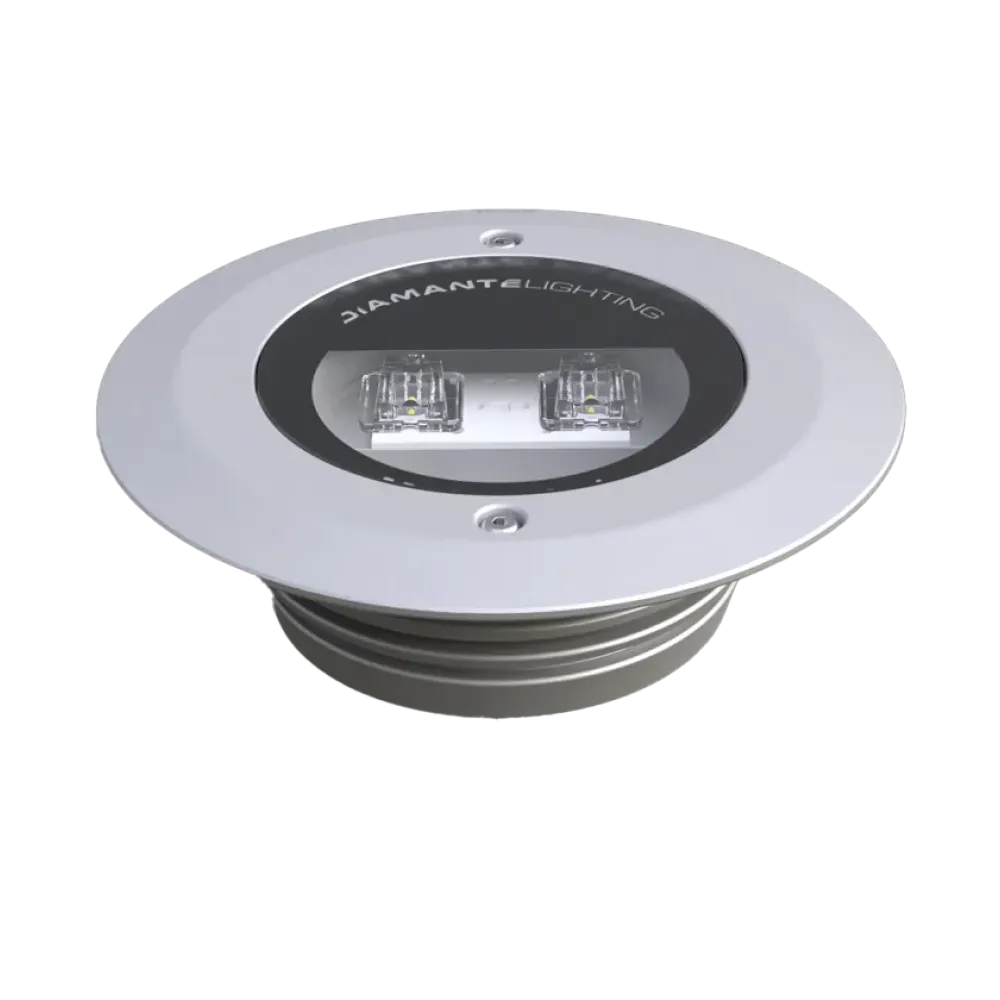

In-ground-recessed luminaires in machine-crafted aluminium alloy for uplight illumination of facades, trees, urban and archeological landmarks, featuring high power LEDs. Sturdy construction, suitable for walk-over and drive-over. Seven high-precision beam angles including two elliptical distributions. Four colour temperatures from 2200K to 6000K plus RGBW. Remote power supply unit. Control through remote device.
Product specifications
| IP rating | IP66/67 |
| Management interface | by remote device |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | wide wall washer, wide asymmetrical |
| Operating temperature | -30°C to 55°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass gland connector |
| Power supply | Remote power supply|Constant current |
| Insulation class | Insulation class III |
| Voltage | constant current |
| IK rating | 10 |
| Source type | High power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 600 lm |
| Light efficiency | 146.3 lm/W |
| Delivered flux | 480 lm |
| Delivered efficiency | 117.2 lm/W |
| Input power | 4.2 W |
| Net weight | 0.7 kg |
