Item ID: 15143.8354.987.1053.1054.2291
Ghostbeam 18C 230 V 50/60 Hz - insulation class II
Product
Ghostbeam 18C
Finish
Silver anodized
Stainless steel
Power/Control
On/Off
DMX-512A and RDM compatible
DALI compatible
Light color/CCT
2200 K
3000 K
4000 K
5700 K
RGBW (W 5700 K)
Optics
10°
30°
50°
12° x 35°
35° x 12°
Narrow wall washer
80°

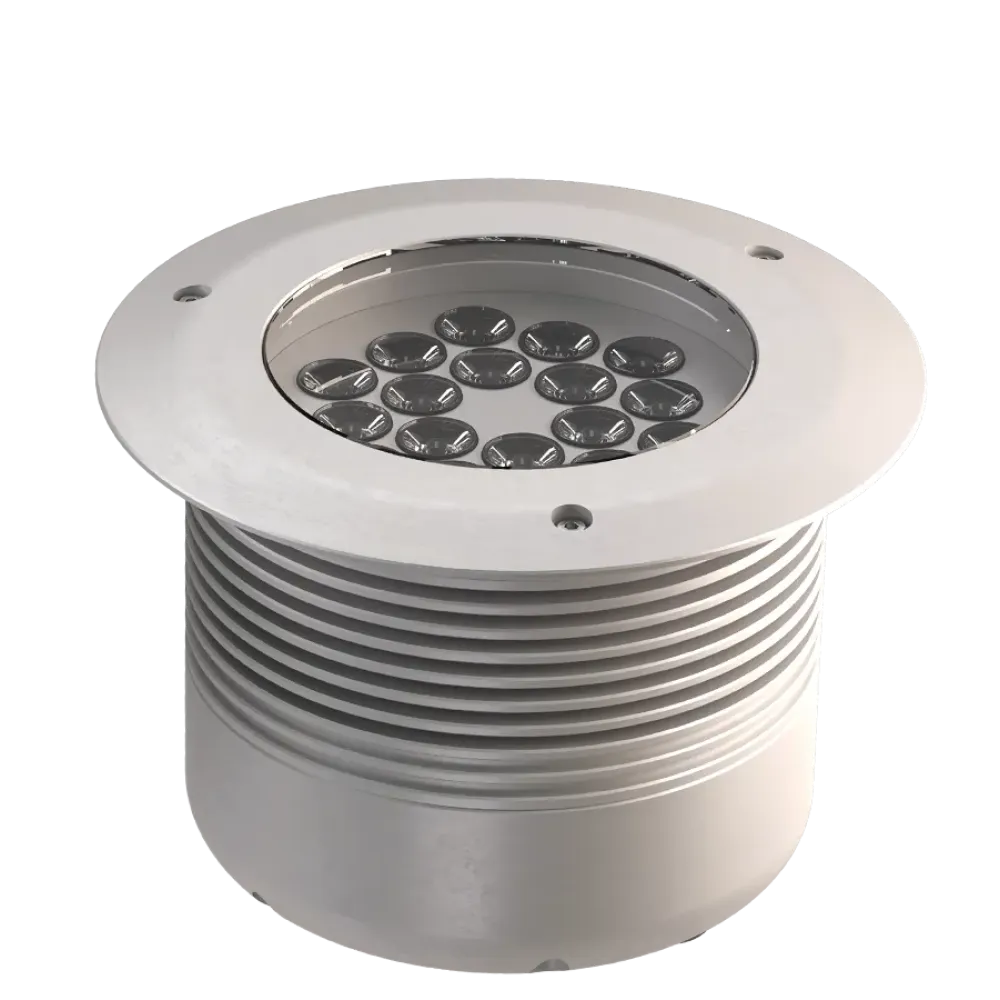

About the product

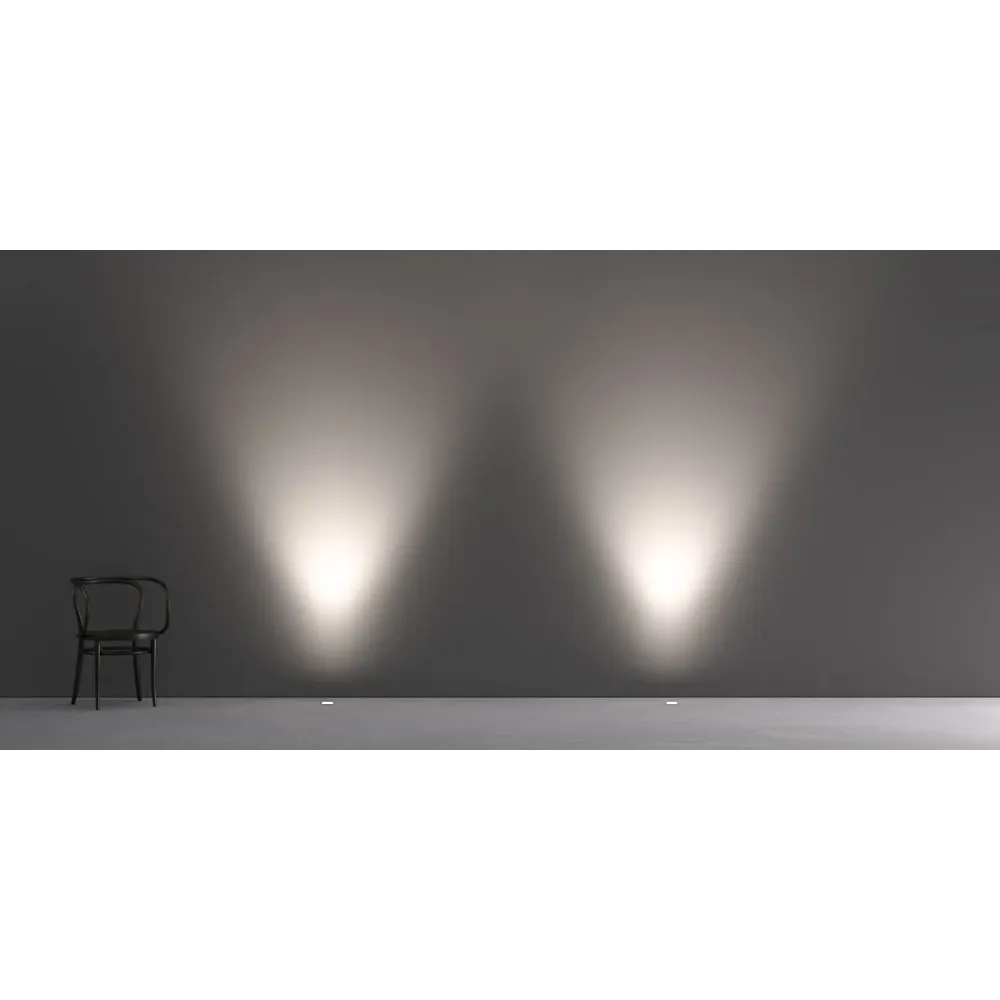

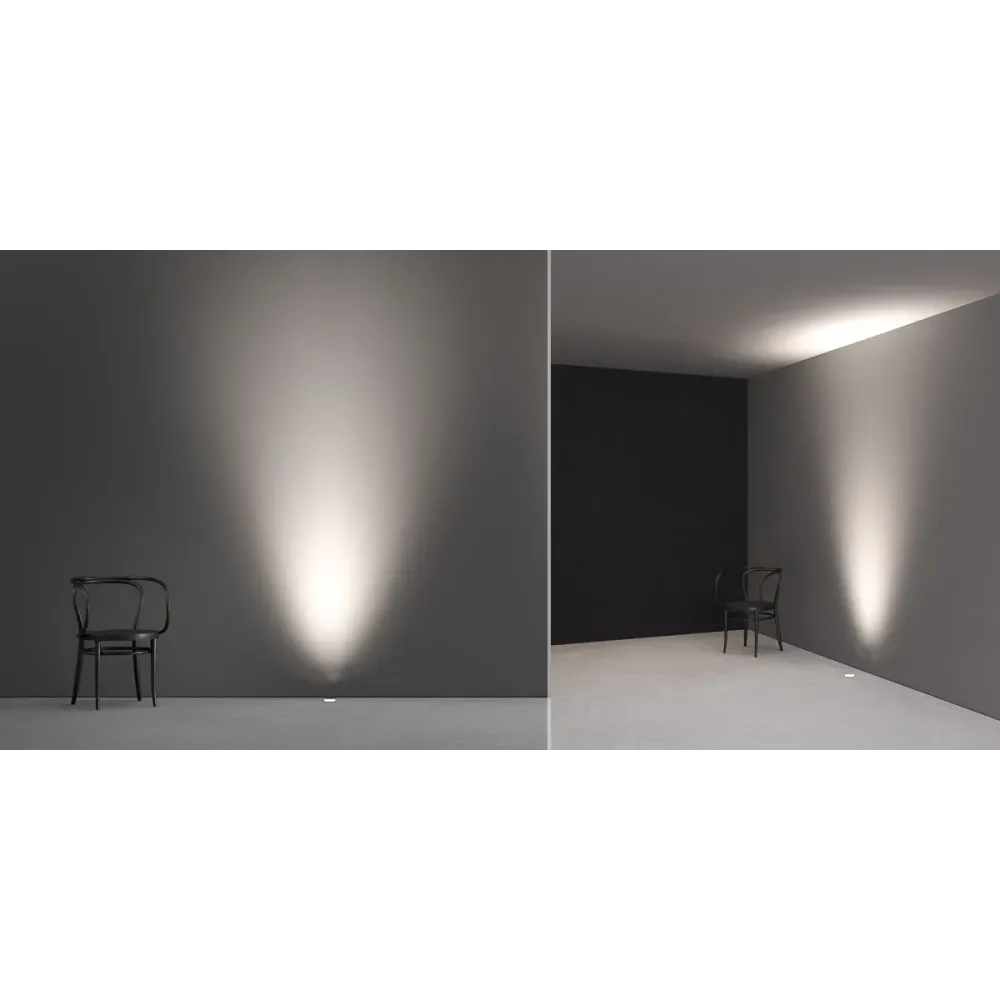

In-ground-recessed luminaires for up light illumination, featuring high power LEDs.Seven high-precision beam angles.Installation-friendly.Integrated power supply.Control through remote gear.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off, DALI-compatible |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 50°, 12°x35°, 35°x12°, narrow wall washer, 80° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | stainless steel |
| Construction | machine-crafted aluminium alloy, silicone gasket, tempered extra-clear glass, nickel-plated brass, stainless steel collar |
| Power supply | On-board power supply |
| Insulation class | insulation class II |
| Voltage | 230 V |
| IK rating | 10 |
| Source type | High power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 2865 lm |
| Light efficiency | 163.7 lm/W |
| Delivered flux | 2175 lm |
| Delivered efficiency | 105.6 lm/W |
| Input power | 22 W |
| Net weight | 2 kg |
