Item ID: 15142.9372.987.1053.1054.2291

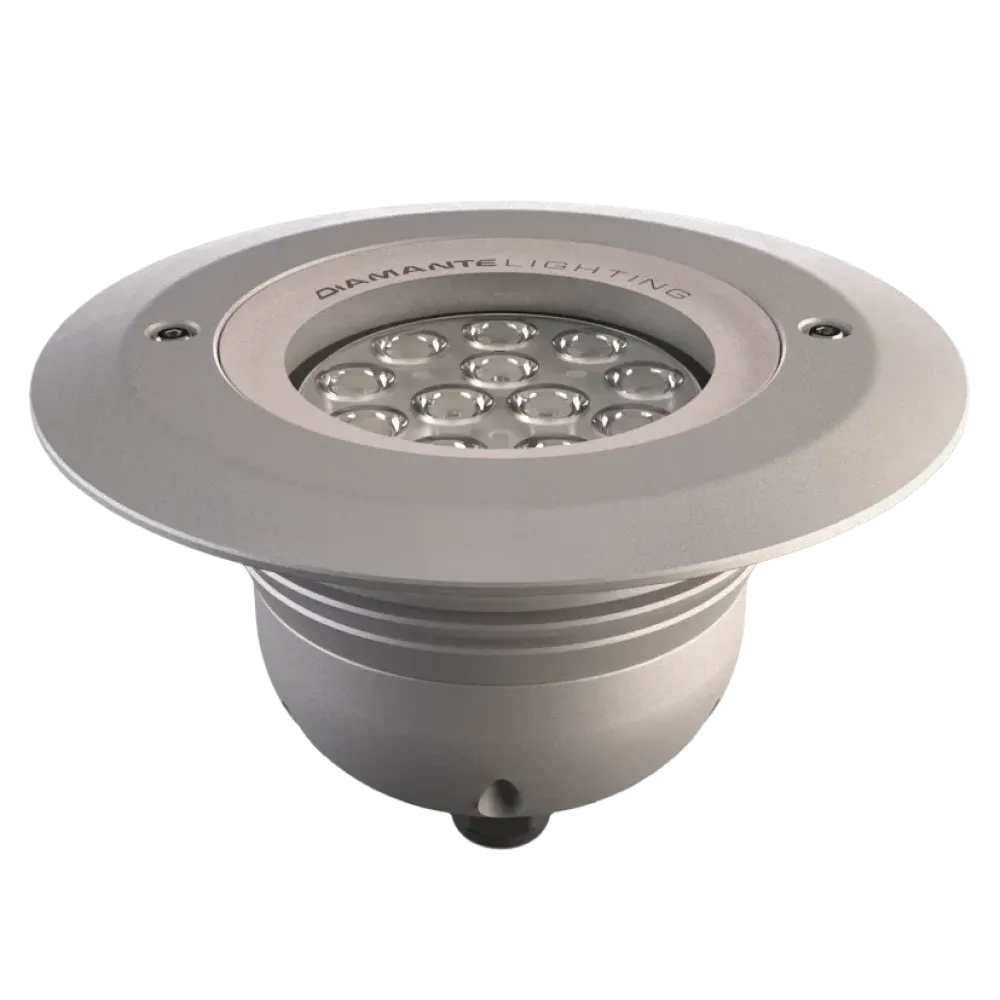

Ghostbeam 12C 230 V 50/60 Hz - insulation class II
Product
Ghostbeam 12C
Finish
Silver anodized
Power/Control
On/Off
Light color/CCT
2200 K
3000 K
4000 K
5700 K
Optics

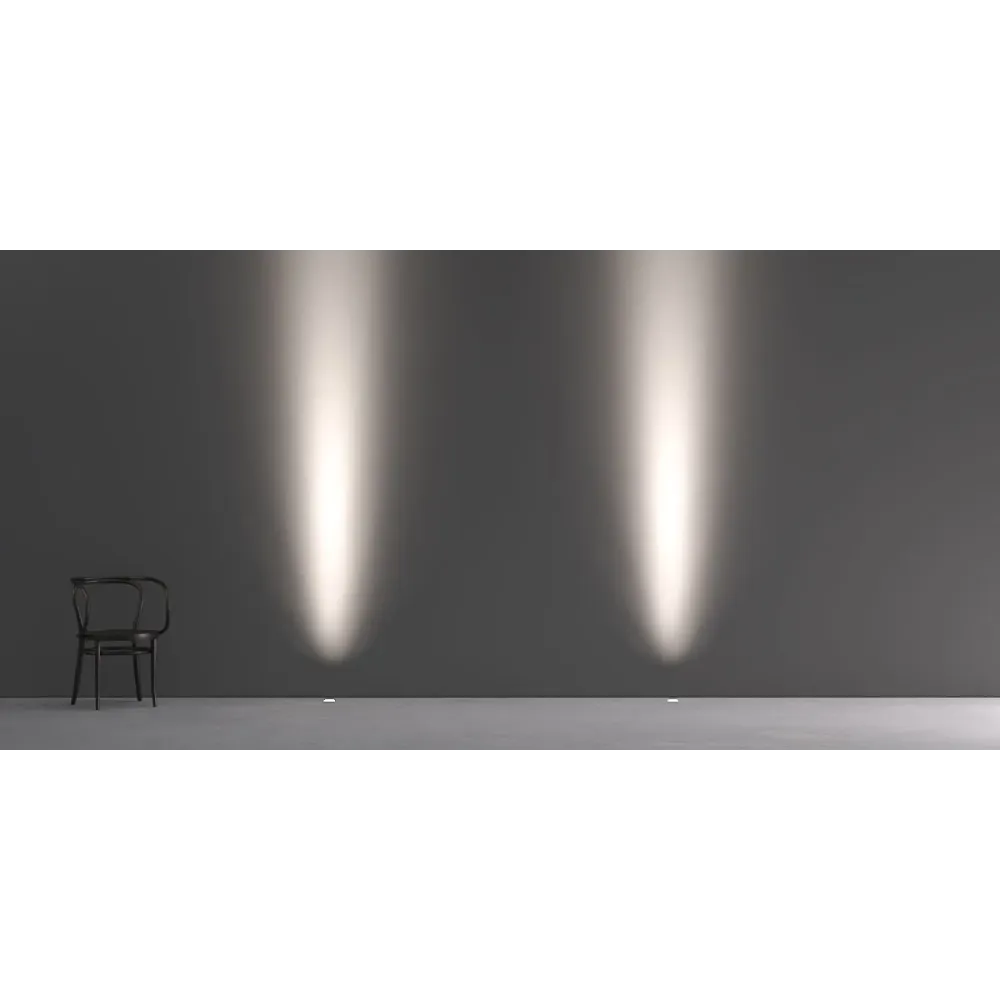

10°

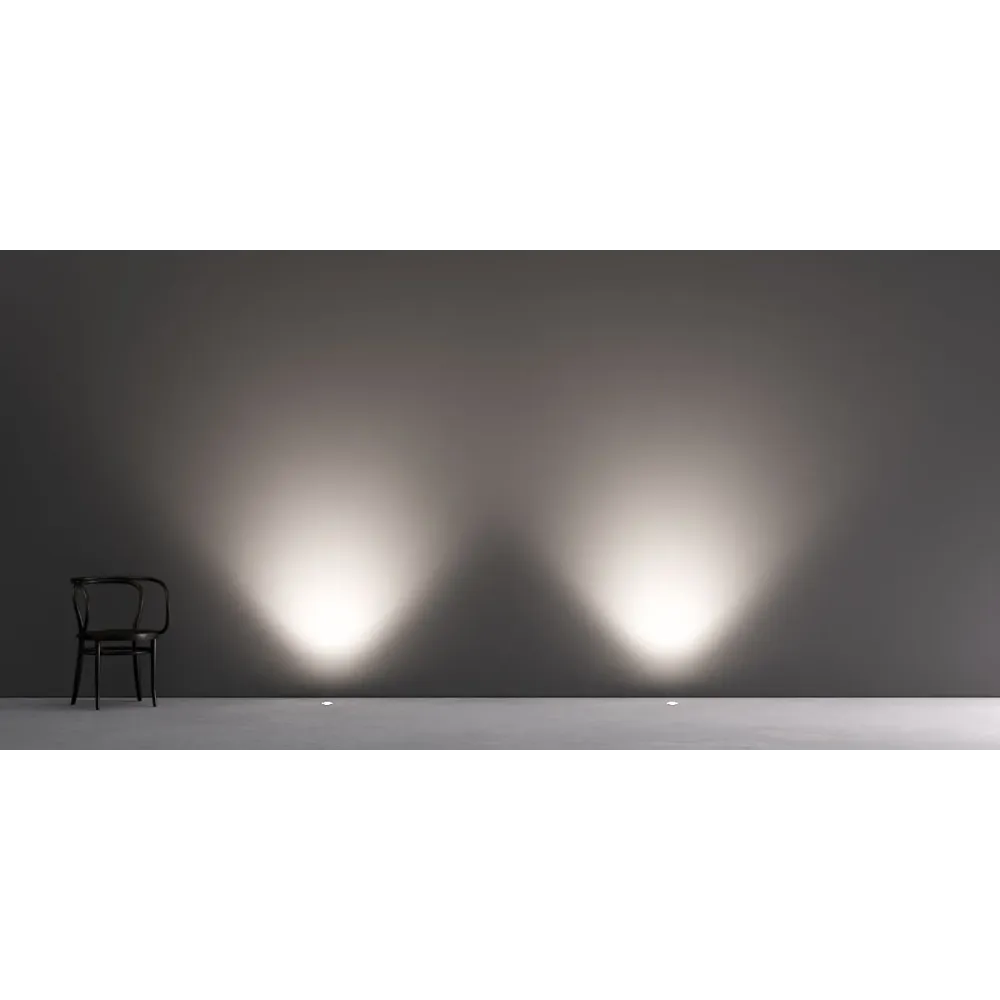

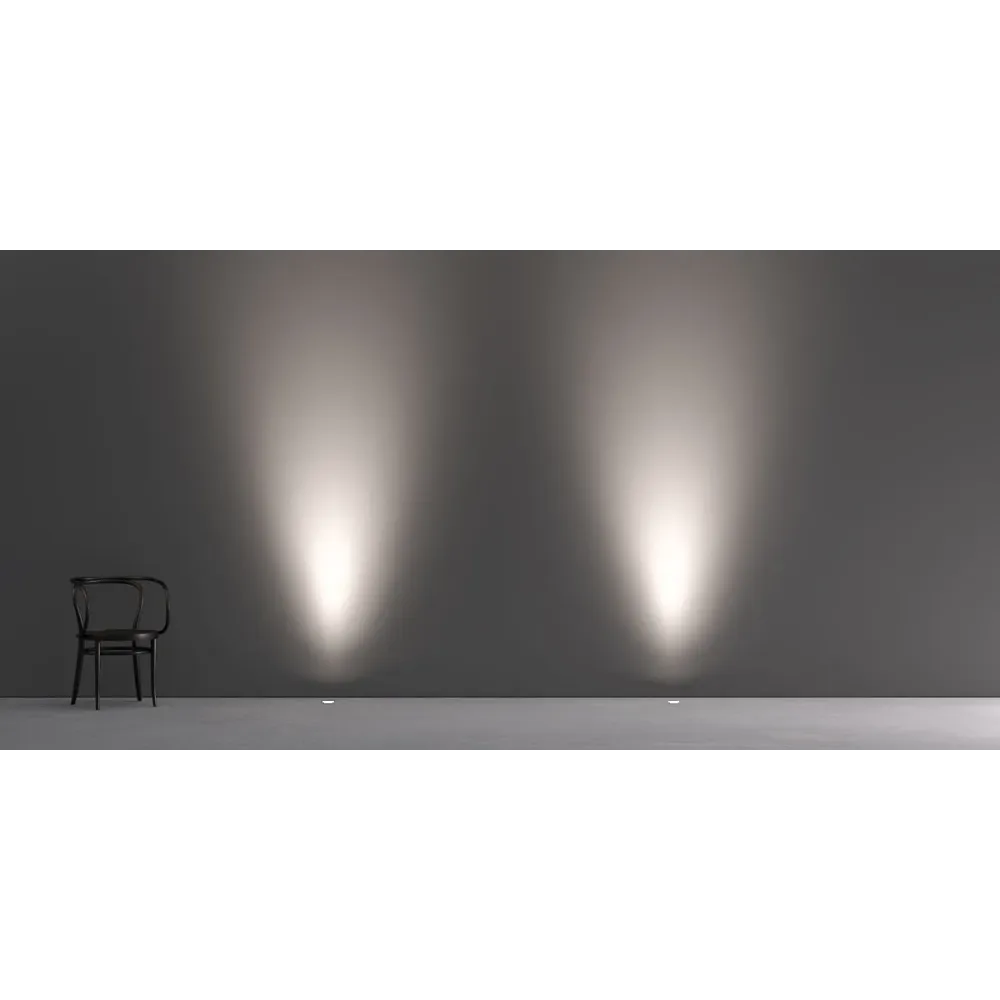

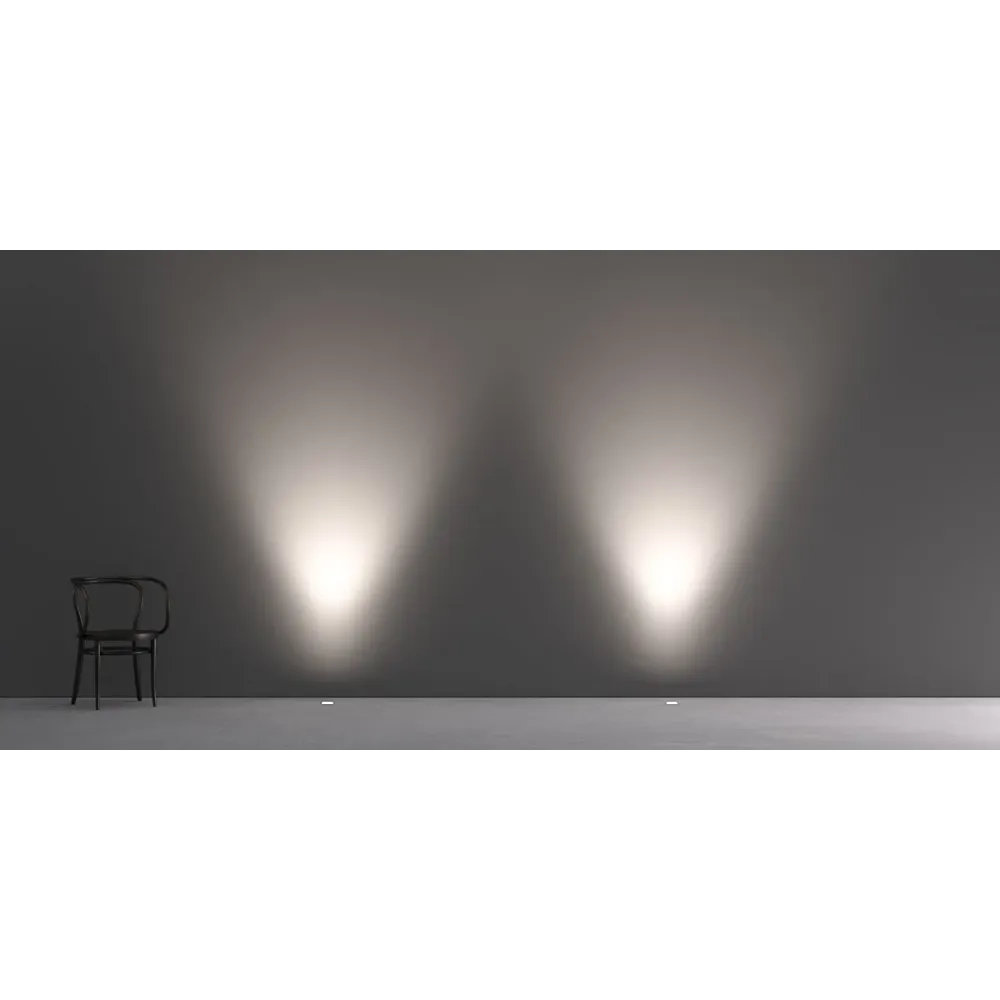

30°

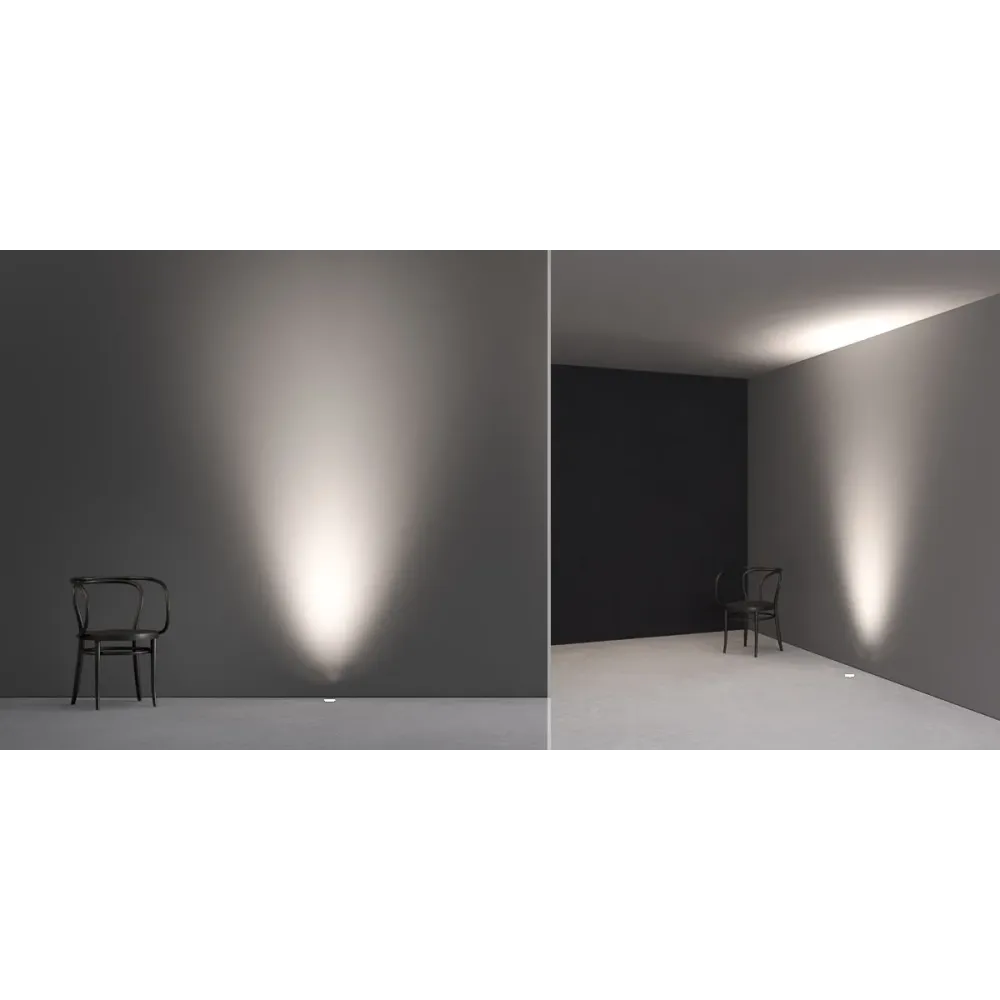

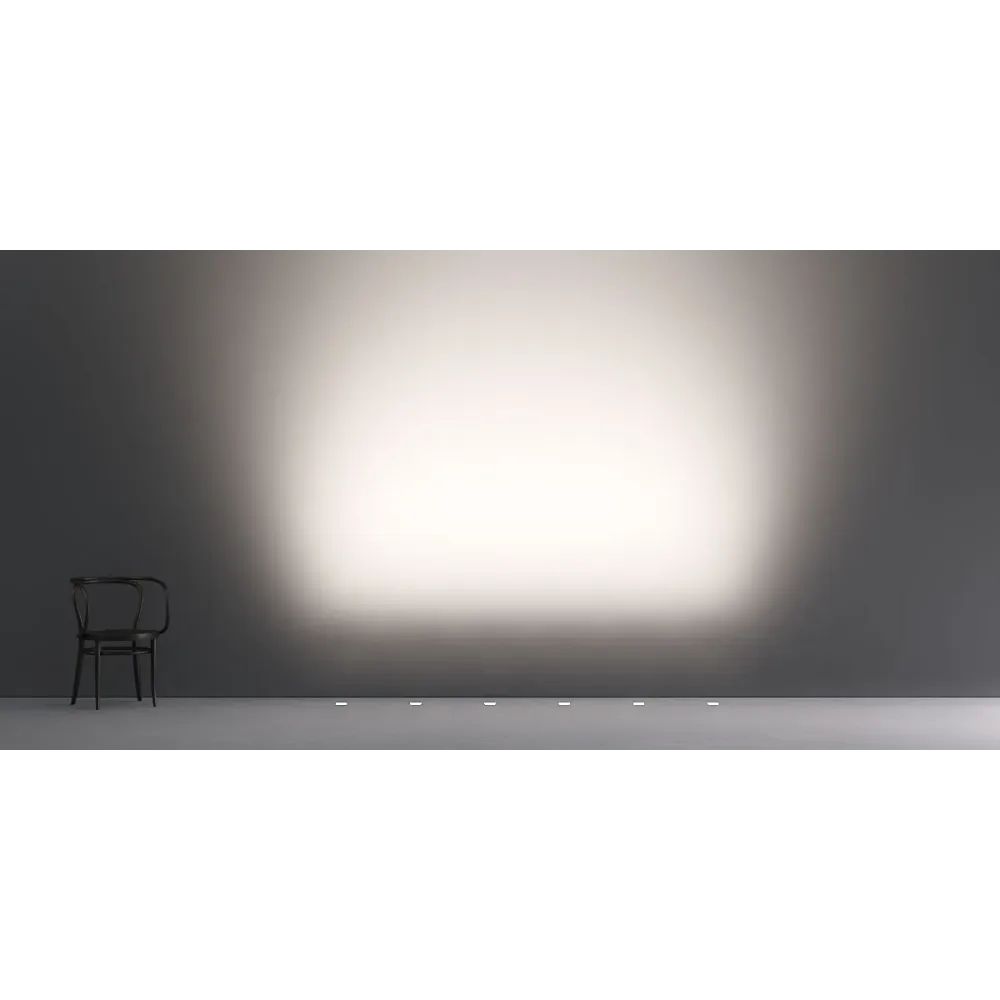

40° x 15°
15° x 40°
About the product

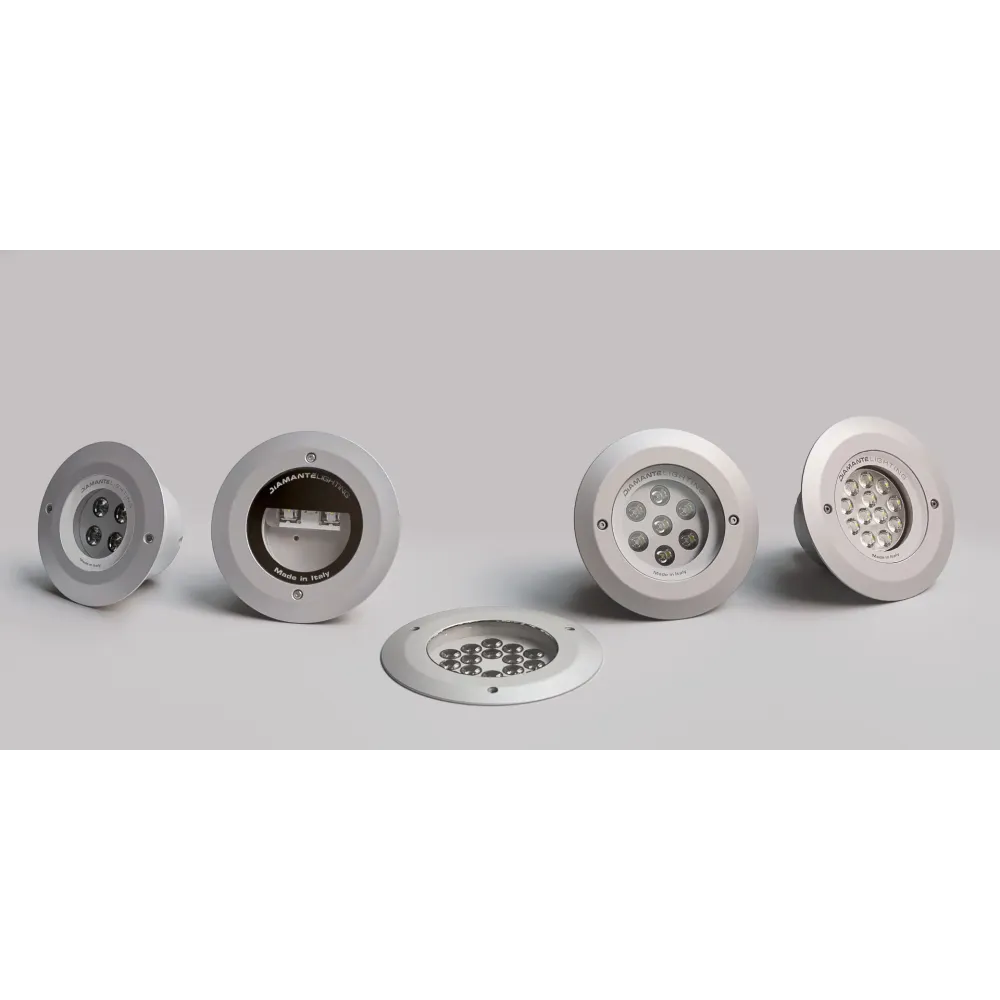

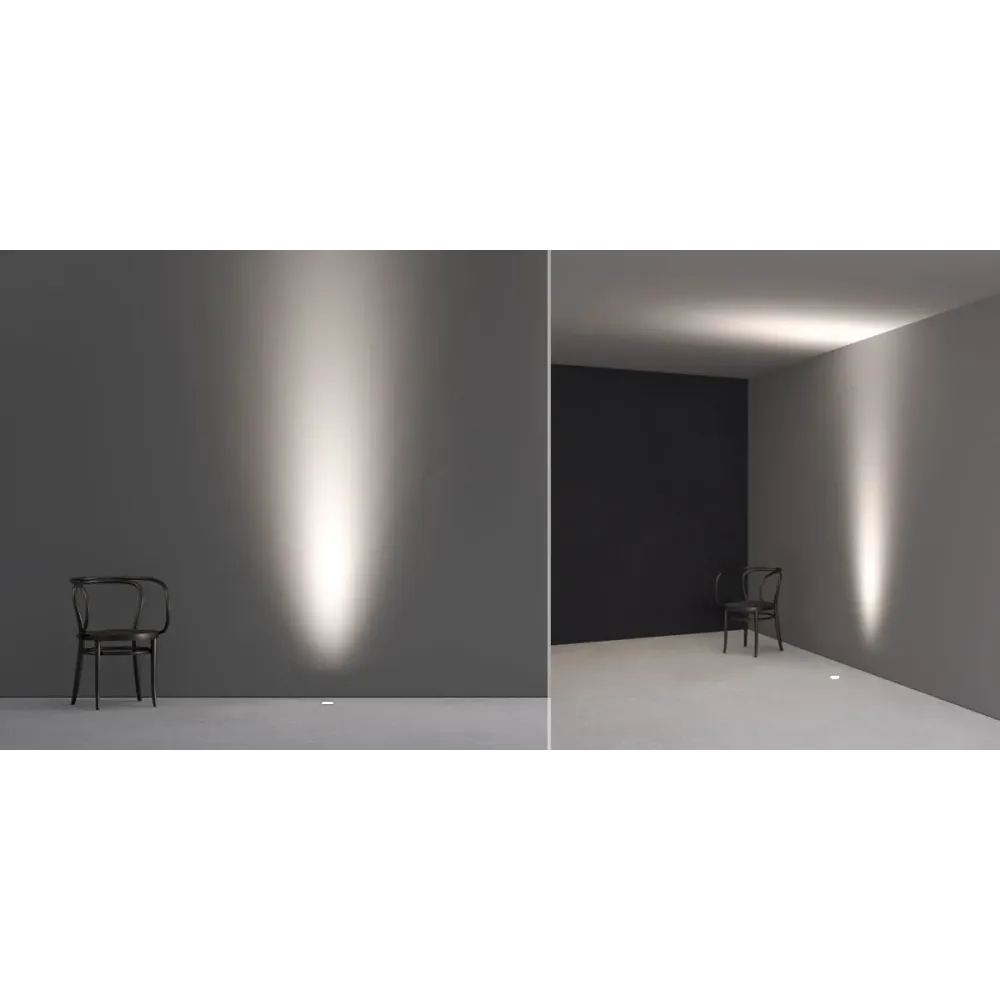

In-ground-recessed luminaires for up light illumination, featuring high power LEDs.Seven high-precision beam angles.Installation-friendly.Integrated power supply.Control through remote gear.
Product specifications
| IP rating | IP66/67 |
| Management interface | on/off |
| Colour temperature/CCT | 2200 K, 3000 K, 4000 K, 5700 K |
| Beam angle | 10°, 30°, 40°x15°, 15°x40° |
| Operating temperature | from -30°C to +50°C |
| Storage temperature | -50°C to 80°C |
| Mounting | ground-recessed |
| Finishing | Silver anodized |
| Construction | machine-crafted aluminium alloy, silicone sealing, tempered extra-clear sodium-calcium front glass, nickel-plated brass gland connector |
| Power supply | On-board power supply |
| Insulation class | insulation class II |
| Voltage | 230 V |
| IK rating | 10 |
| Source type | High power LED |
| Source lifespan | >60 000 h L70 B10 at 25 °C |
| Source flux | 1910 lm |
| Light efficiency | 163.7 lm/W |
| Delivered flux | 1530 lm |
| Delivered efficiency | 118.1 lm/W |
| Input power | 14 W |
| Net weight | 1 kg |
