About the product

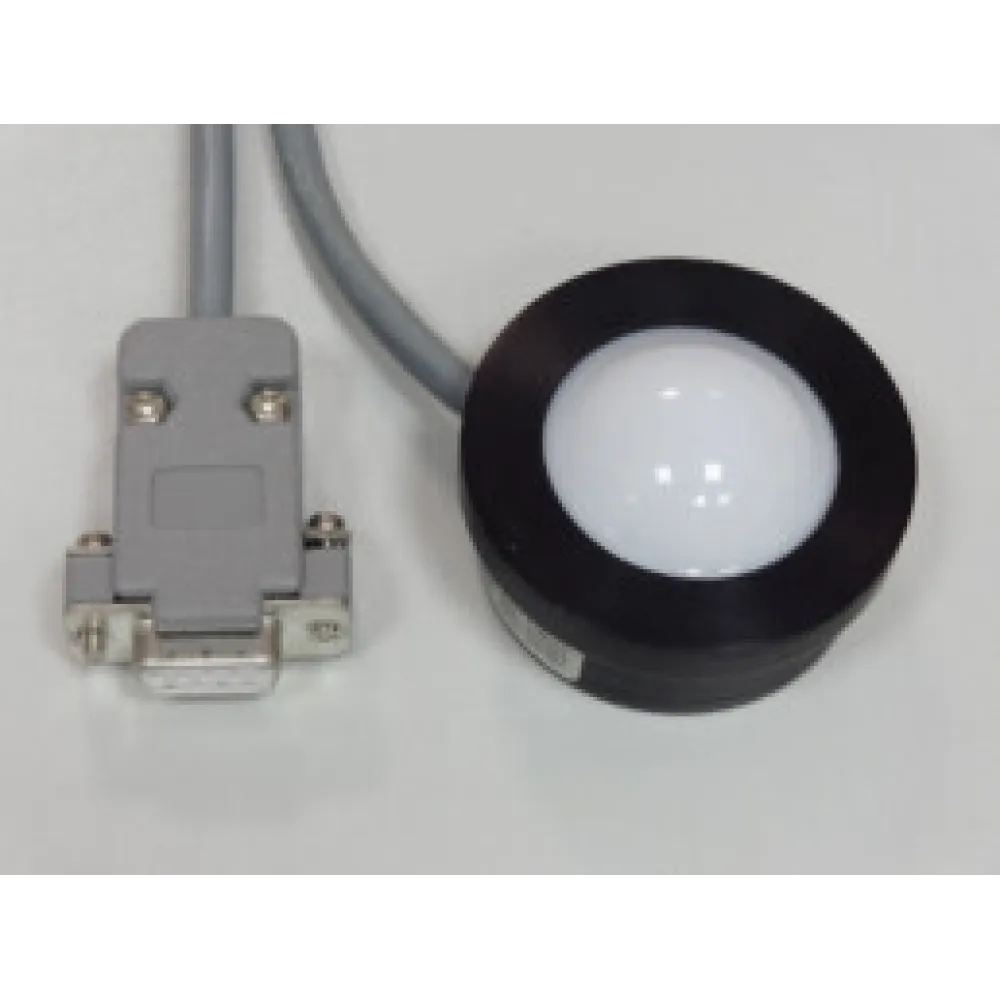

The FX-100 Illuminance Probe is designed for accurate illumination measurements in traffic, work, and living areas, following the physiological perception of the human eye. This spectral-sensitivity model is supported by a cosine-corrected sensor with an error of 5%. The measuring range is selected automatically according to illumination. The probe is connected to the computer via a serial interface for power and data display or logging. A dedicated application keeps measurement statistics and plots polar illumination charts.
Product specifications
| Sensor | Silicon photodiode, Vλ filter |
| Protection degree | IP54 |
| Power consumption | < 0.8 W |
| Temperature range | 0°C to 50°C |
| Analog Outputs | Yes |
| Communication Port | 9600 bps |
| Accuracy | > 1 % |
| Measuring range (VPM) | 0 .. 20.000 Lux |
| Full Viewing Angle / Cosine Erro | 180° cosine-corrected / < 5 % (0 .. 180°), < 3 % (0 .. 177°) |
| Spectral match (CIE) | CIE within 4 % |
| Dimensions | Ø 50 x 30 mm |
