About the product

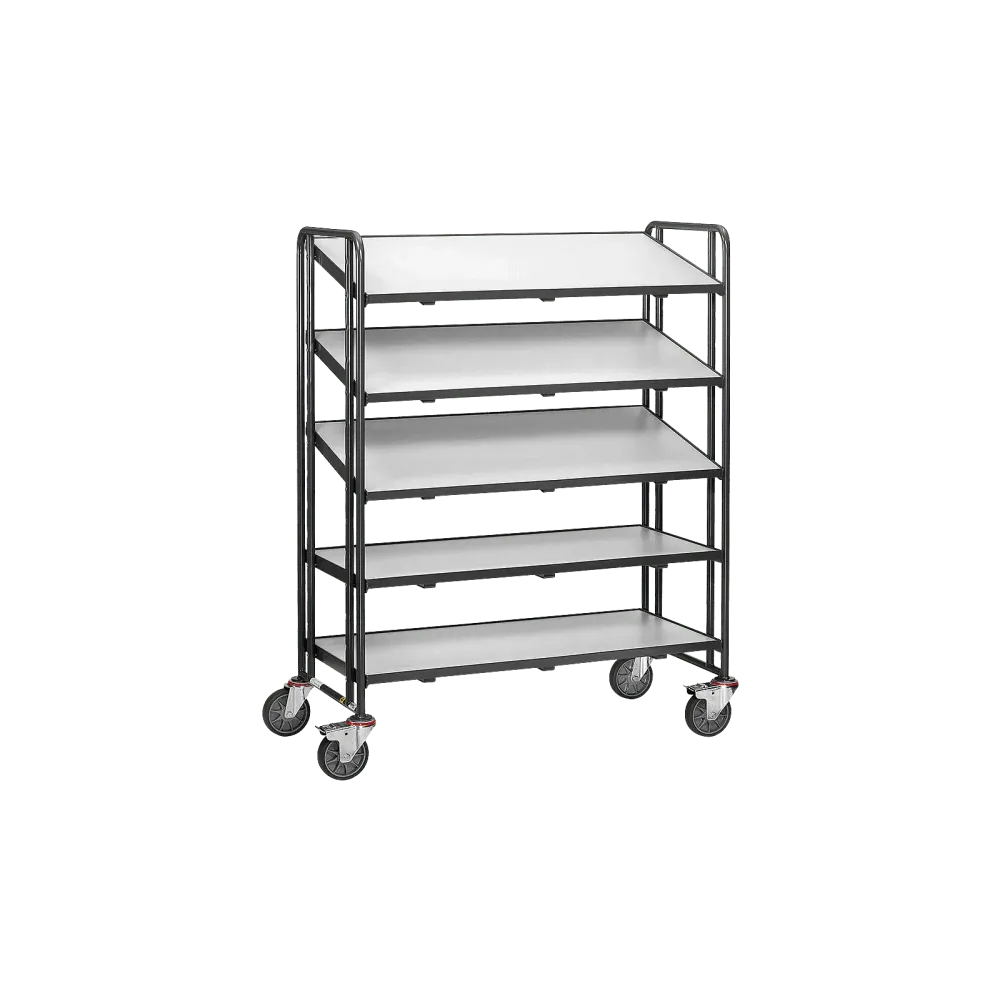

Electrically conductive design (ESD = Electrostatic Discharge). Welded tubular steel and sectional steel, electrically conductive, powder-coated slate gray RAL 7015, bolted construction. Shelves made of electrically conductive wood-based panel in accordance with DIN 68765, light gray. 4 swivel castors with electrically conductive TPE-ESD tires (thermoplastic elastomer). Hubs with precision deep groove ball bearings. 2 with brakes, in accordance with EN 1757-3 (safety of platform trolleys). 5 shelf frames with 5 electrically conductive wood-based panels, edge 7 mm high, for 3 Euro crates 600 x 400 mm each, can be screwed in variably, 100 mm grid, inclination for angled installation 15° or 30°. Load capacity per shelf 80 kg.
Technical data
| Total load capacity (kg) | 400 |
| Load capacity floor (kg) | 80 |
| Wheel size (mm) | 160 x 40 |
| Tires | TPE-ESD |
| Loading area length (mm) | 1240 |
| Loading area width (mm) | 610 |
| Storey heights (mm) | 317, 617, 917, 1217, 1517 |
| Total length (mm) | 1372 |
| Total width (mm) | 685 |
| Total height (mm) | 1686 |
Product specifications
| Manufacturer | Fetra |
| Product | Euro box wagon |
